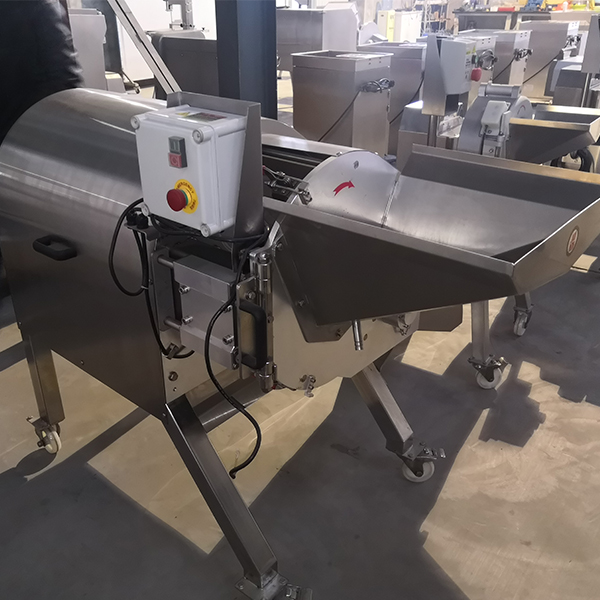

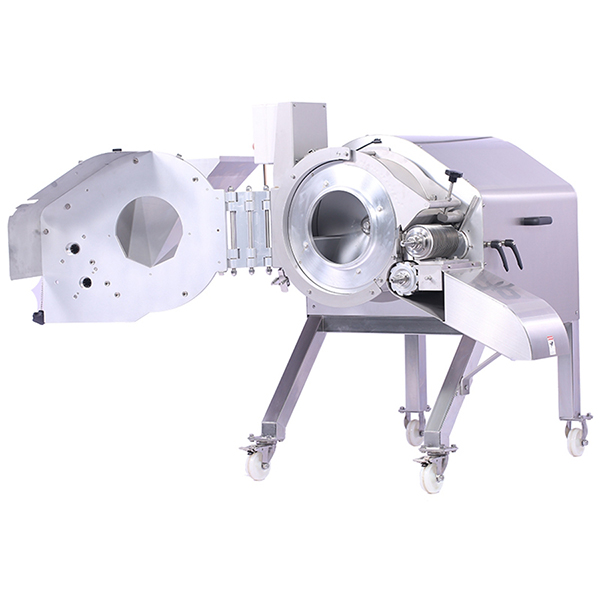

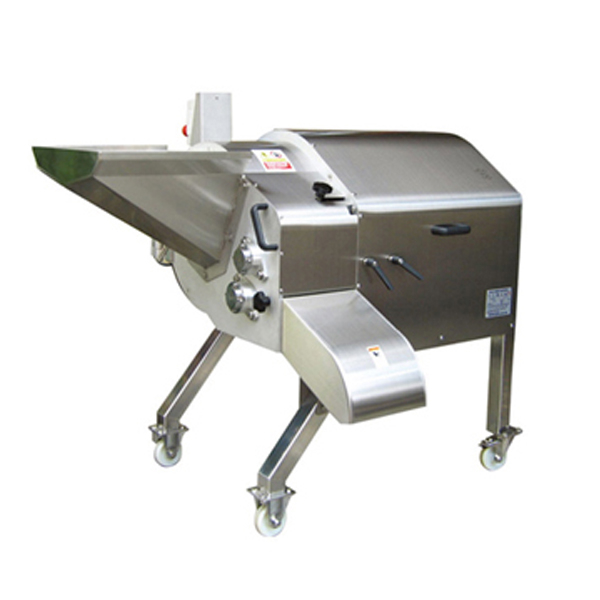

CHD3000 Industrial Vegetable Dicer Machine
Instruction:
The CHD3000 industrial vegetable dicer machine is for industrial use, large capacity. suit for cutting various corm root vegetables into cubes, or slices, also can shreds by changing different blade combination. Vegetable cubes cutting machine with large capacity.
Feature:
Whole machine is high quality use strengthen SS304 stainless steel, suit for the hygeian food standard.
Capacity is 2000kg to 3000kg per hour, large capacity.
Urgent stop with electric control, more safer and convenient to operate.
Cubes size: 3mm, 4mm. 5mm. 8mm. 10mm. 12mm. 15 mm, 20mm etc. Or other size customized.
Technical Parameter:
Model | Power(kw) | Capacity(kg/h) | Dimension(mm) | Weight(kg) | Cubes size (mm) |
CHD3000 | 2.5 | 2000-3000 | 1750*1250*1600 | 285 | 3-20mm Customized Size |
Working Principles:

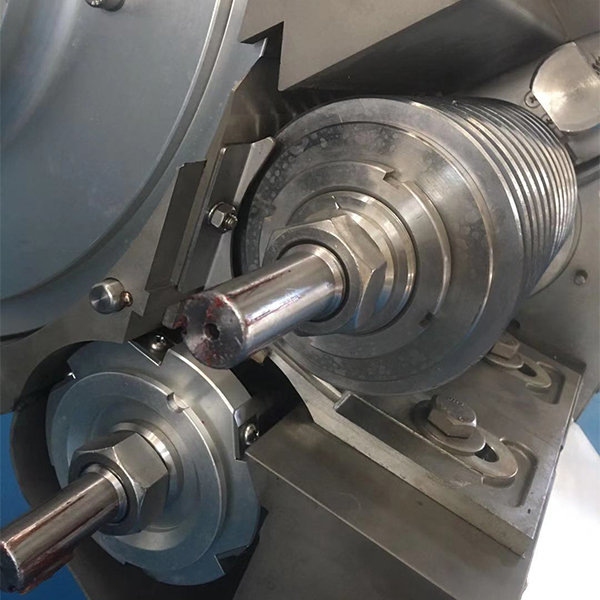

This machine is fitted with integrated cutter blades. Turning the adjustment dial initiates high-speed rotational movement, which spins the cutting assembly.
Utilizing the centrifugal force of materials, the primary cutter slices raw materials into fragments. These fragments are subsequently processed by disc cutting blades to form strip-shaped pieces. Afterwards, these strips are fed to the horizontal cutting blade for transverse cutting, and finally shaped into target cuboids or cubes via the cross-cut blade group.
Applications:
Use for all kinds of vegetables and fruits, like carrot, potato, onion, sweet potato, tomato, pepper, etc., fruits of apple, pineapple, melon, cantaloupe, mango, kiwi, etc.various corm root vegetables.
