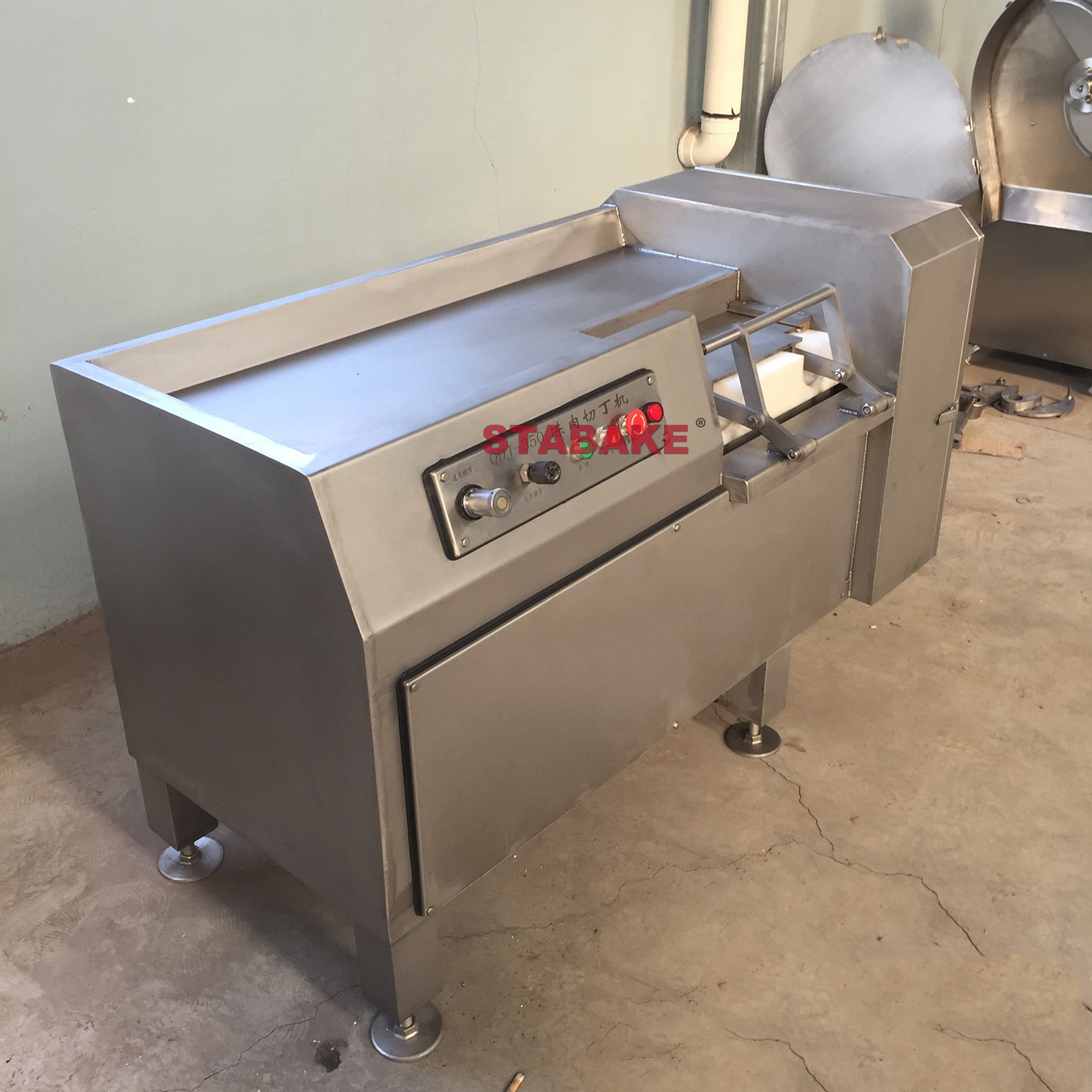

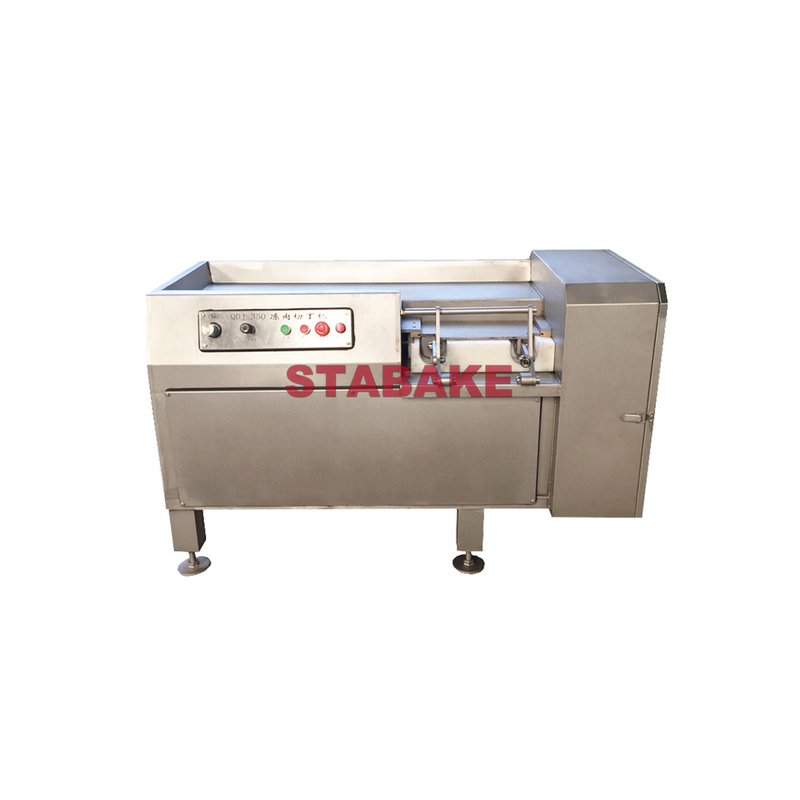

Commercial Meat Dicer Machine for Fresh And Frozen Meat Cutting Dicing Machine

Stabake brand fresh frozen meat dicer machine can achieve precise "cubes", "slivers", "slices" and high work efficiency. This meat dicer can cut beef, mutton, pork, chicken, duck and so on. The meat dicer cutting length 4-30mm adjustable.
Availability:
Quantity:

Meat Dicer machine

Description:

Stabake brand fresh frozen meat dicr machine can achieve precise "cubes", "slivers", "slices" and high work efficiency. The minimum size of diced is 4mm, and the maximum size is 30mm. It is the first choice for meat food processing and cutting.


Products Specifications:

meat dicer

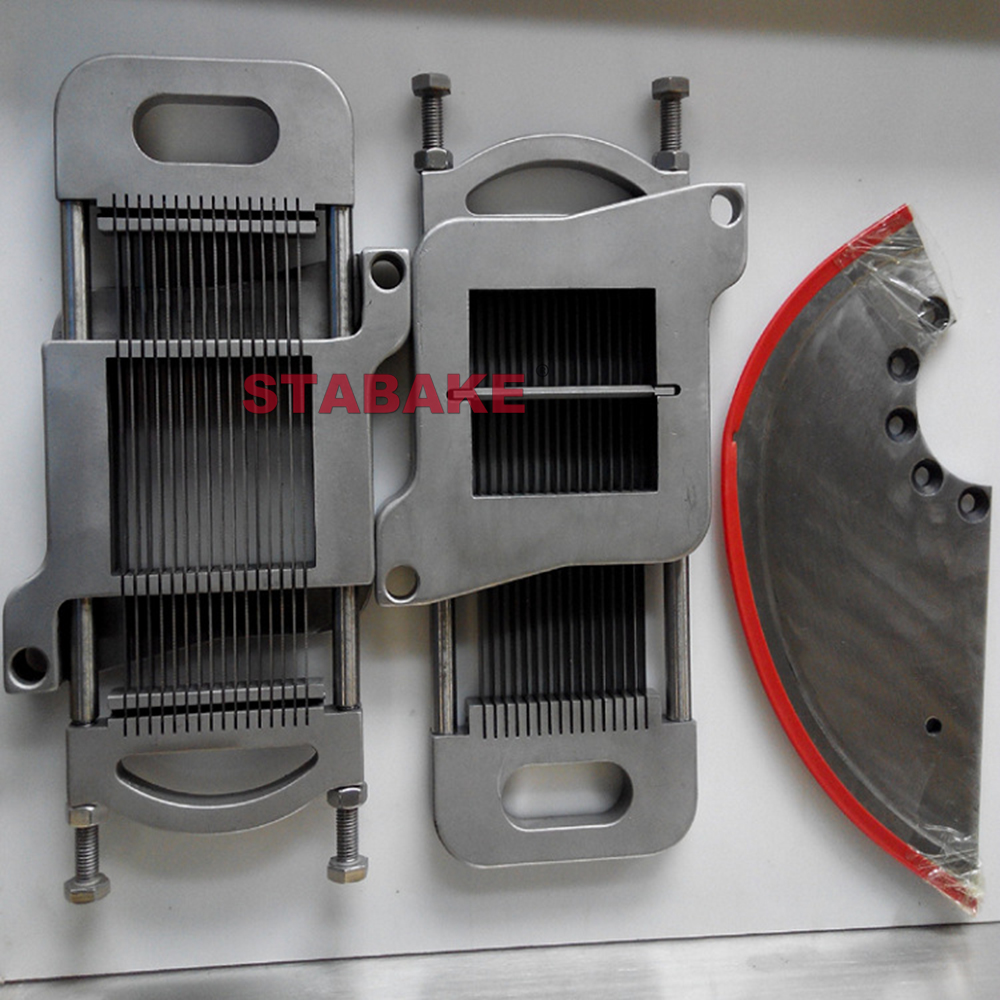

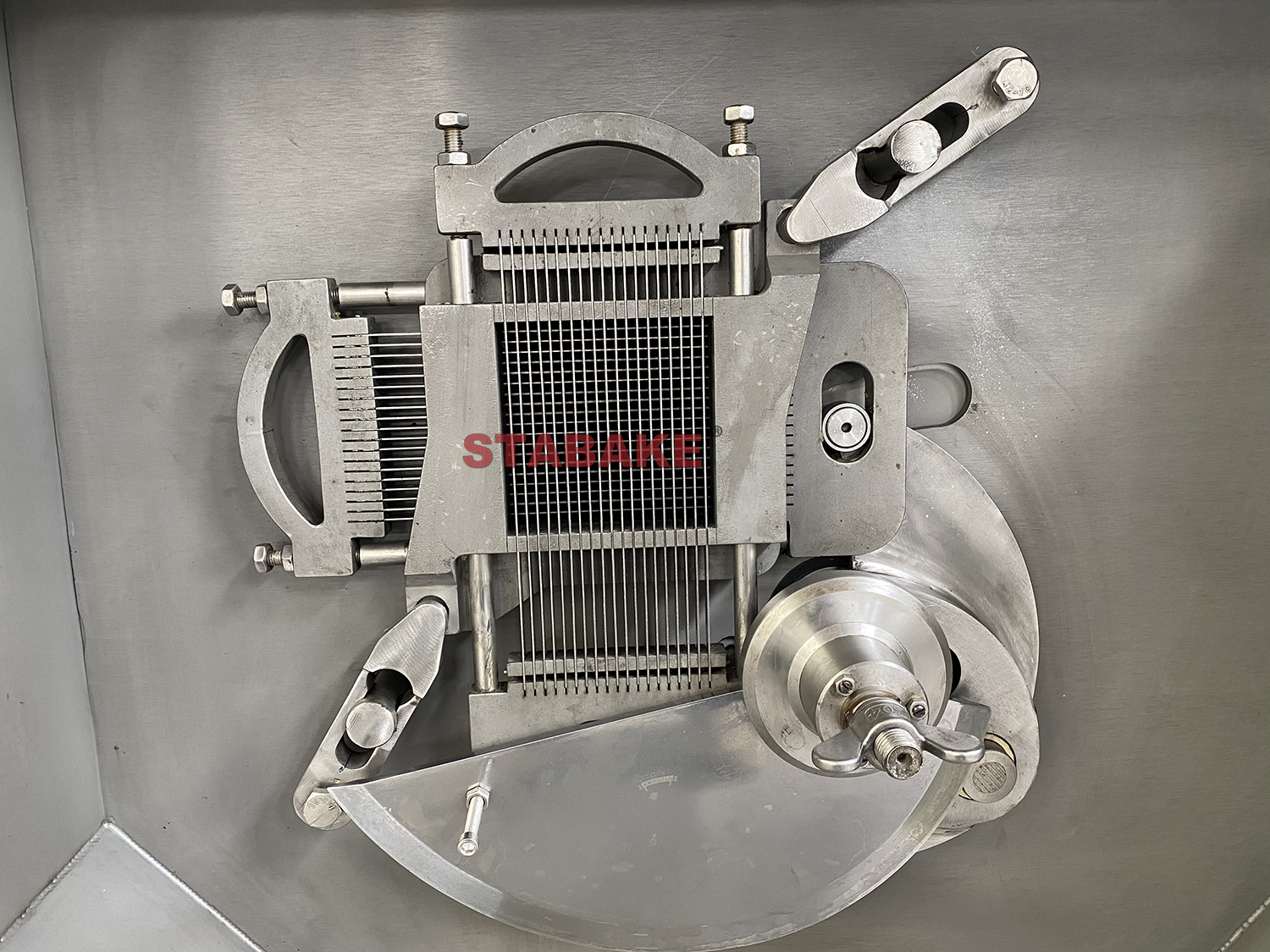

It have 3 pieces knives inside the machine : one set grid knives (2 pieces) and one slice blade

刀组合副本

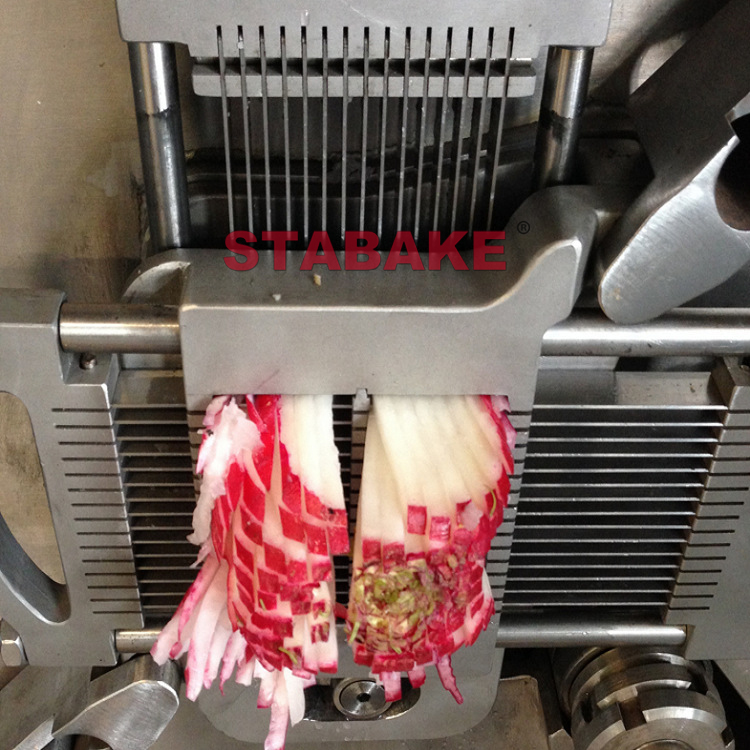

By change the grid knife, it can make different size of meat dice from 4mm to max 30mm.

刀组副本 肉丁机副本

Technical Parameter:

Model

QD-350

QD-500

Power(kw)

1.5

2.25

Voltage

220/380V

220/380V

Capacity (Kg/h)

500-600

700-900

Size of cutting groove(mm)

350*84*84

550*120*120

Size of cutting dice(mm)

5,6,7,8,9,12,16,20,27

5,6,7,8,9,12,16,24,30

Weight (kg)

500

700

Dimension(mm)

1480*800*980

1940*980*1100


Feature:

1. Adjust the cutting thickness knob to change the pushrod advancing speed to achieve different cutting thickness requirements.

2. Adjust the pre-pressure knob to ensure that the cutted product is consistent during the cutting process.

3. Adjust the meat pushrod to step motion, when single-edged cutting, the extrusion of the product will be minimized during the cutting process.

4. The cutting groove-side adopts an active side pressure mechanism, which is convenient for feeding and improving work efficiency.

The product can be Maximize compression before cutting, so even it is higher than the feeding port, also no need pre-cutting. The cutting speed is 50-120 times/min.

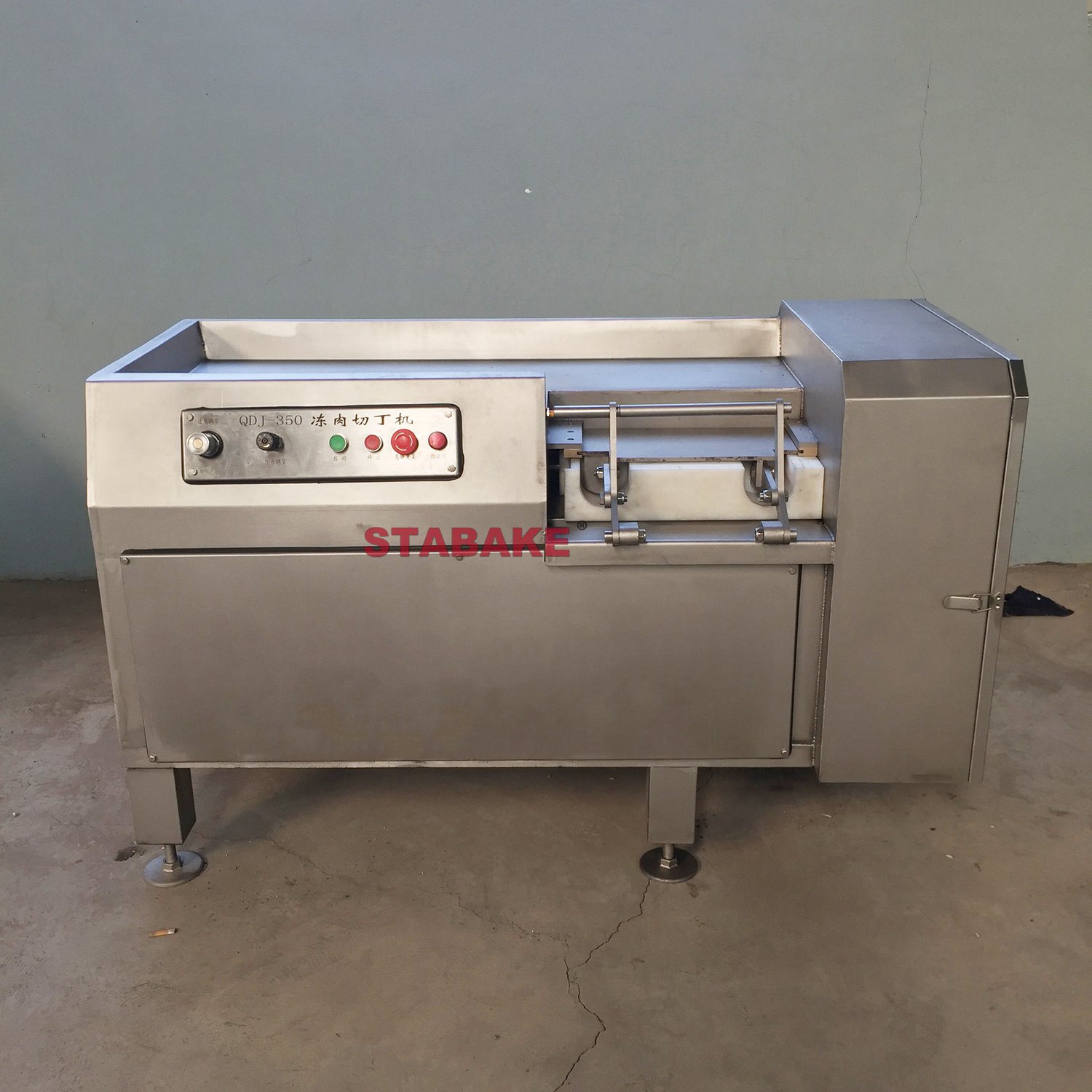

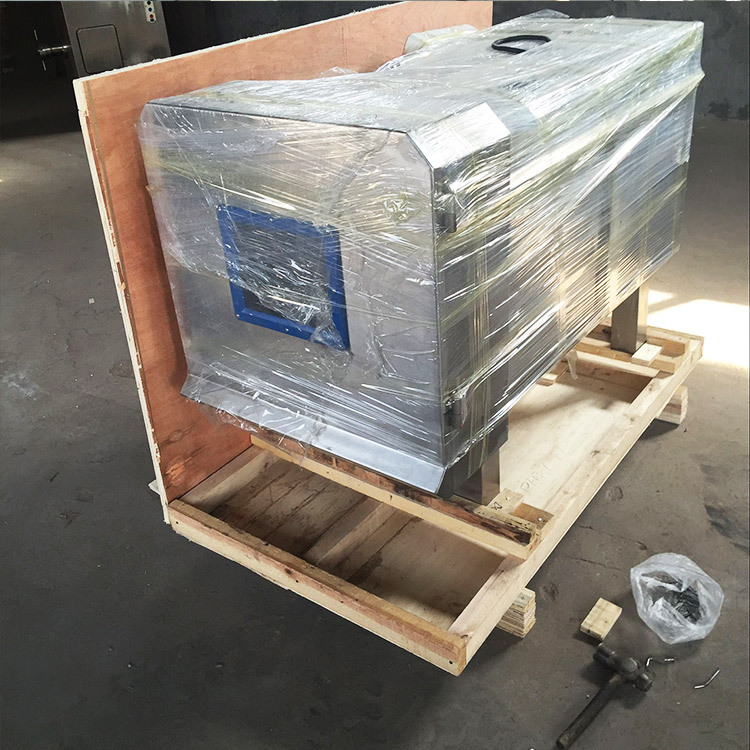

Machine Site Photos:

肉丁

5副本

包装1
