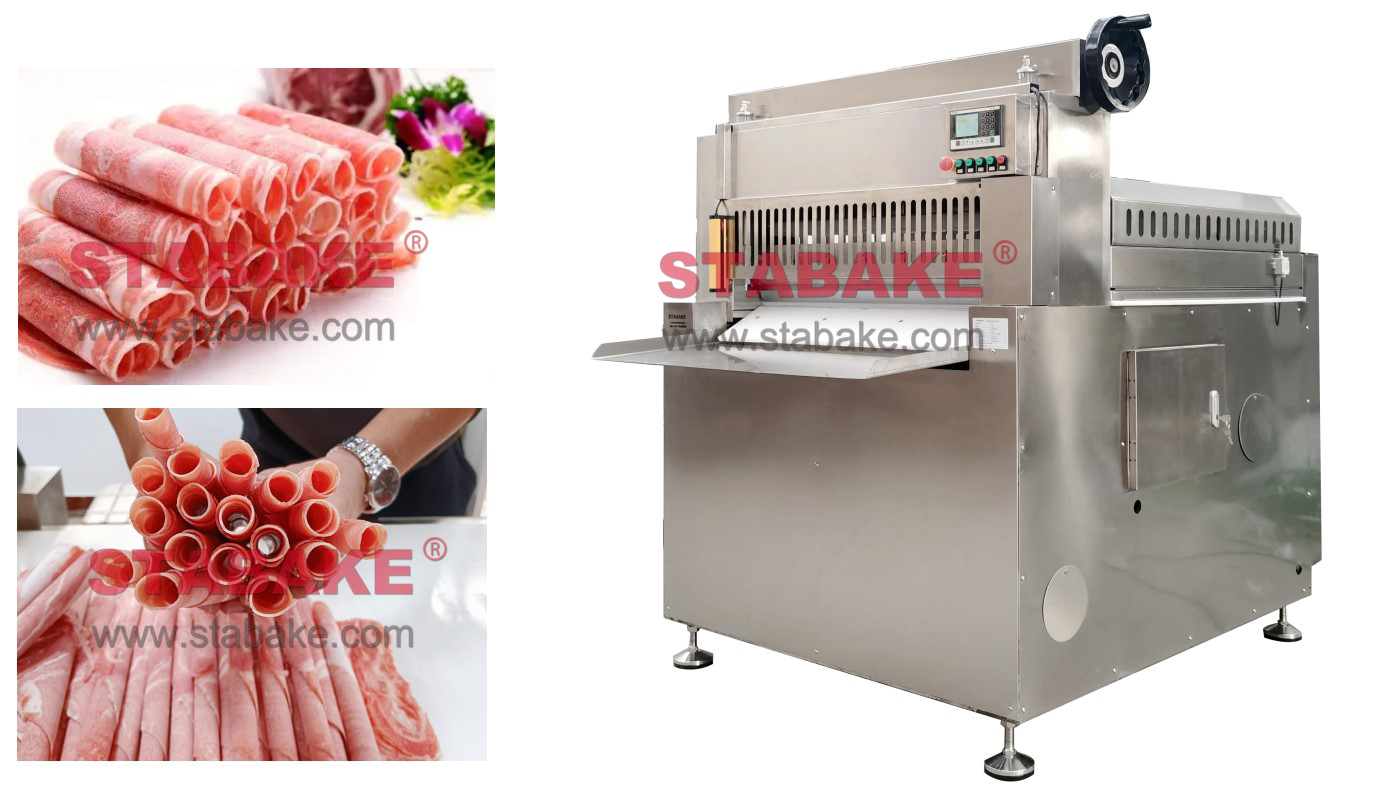

Automatic Frozen Meat Slicer Machine Mutton Beef Roll Cutting Machine

Slice fast, high production efficiency, 60 times per minute knife speed.
Cut meat roll thickness uniform, neatly arranged. the thickness adjustable as you need.
The input meat height is 18cm (cutting height and method also can be customized made as requirement).
Adopt PLC controller, automatic and simple operation. all functions are used point switch, easy and fast.
With urgent stop; equipped with a cover and infrared sensor device in the front of cutting knife; and sensor protective cover at feeding part. When the protective cover is open, the cutter will automatically power off to stop running, The cutter can not run unless the security door was shut, double safety protection, to ensure safety.
The blade is made of imported steel composite rolling (sharp, wear-resistant, long service life, neat and beautiful coil shape).
Availability:
Quantity:

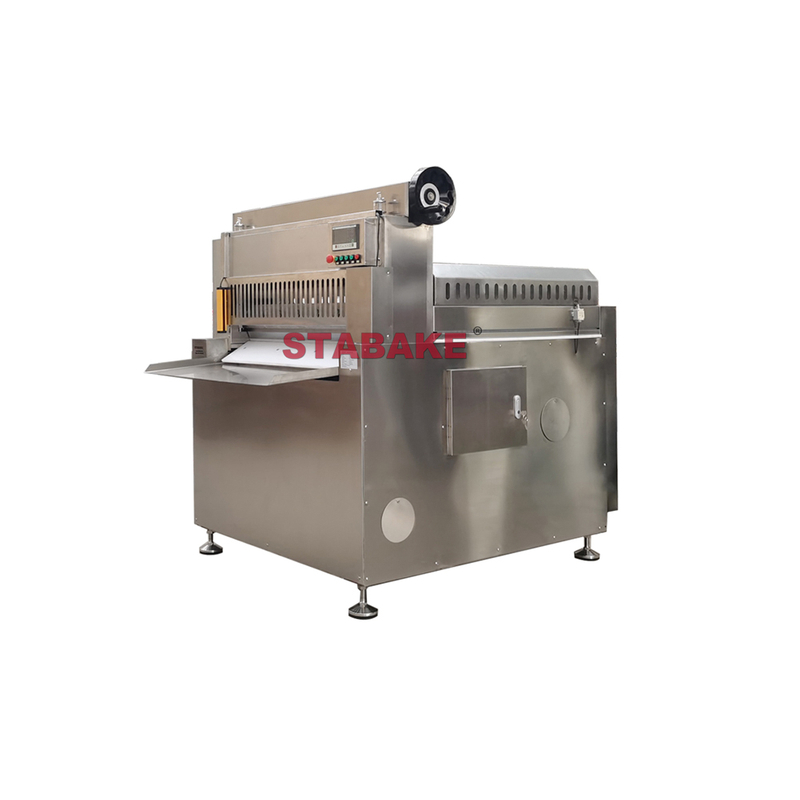

Automatic Frozen Meat Slicer Machine


meat slicer machine

Description:

The Meat Slicer machine use servo, stepper motor drive to completely solve the problem of failure rate of mechanical.

Both the automatic pusher and feeder adopt double polished rods and lead screws. The main frame is made of gray iron precision casting, and groove welding, whole frame use HT450 precision casting and then heat treated and processed by a precision casting machine, the hole and shaft are closely matched, high strength, wear resistance and heat resistance, good shock absorption and runs without noise.

It can manufacture the whole machine with SUS304 Stainless steel.

The machine also can manufacture with the out conveyor, the length of conveyor is customized made as you needs.

Technical Parameter:

Model

RJ-2

RJ-3

RJ-4

RJ-6

RJ-8

Cutting Rolls Quantity

2

3

4

6

8

Power(kw)

1.1

1.5

1.5

2.2

2.2

Voltage(v)

380/ 220

380/ 220

380/ 220

380/ 220

380

Cutting Width(mm)

230

320

430

630

830

Cutting Height(mm)

180

180

180

180

180

Cutting Speed (pcs/min)

50-60

50-60

50-60

50-60

50-60

Cutting Thickness (mm)

Adjustable

Adjustable

Adjustable

Adjustable

Adjustable

Capacity(kg/h)

50-120

100-160

100-180

100-200

200-300

Machine Weight(kg)

310

340

360

480

580

Dimension(mm)

1150*500*1350

1150*600*1350

1300*700*1350

1300*920*1400

1300*1150*1460

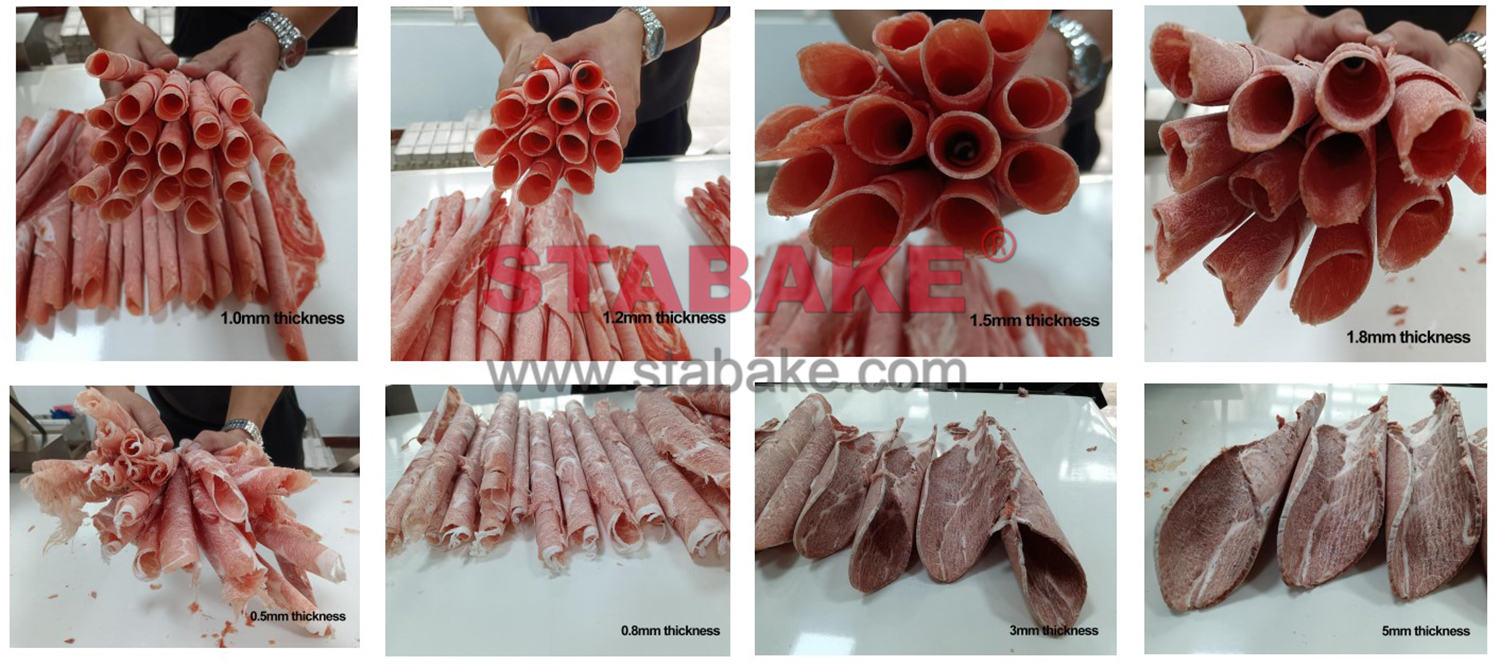

product size(1)

Application:

This meat slicer machine used for frozen meat cut into meat rolls or fresh meat cut into meat slices.

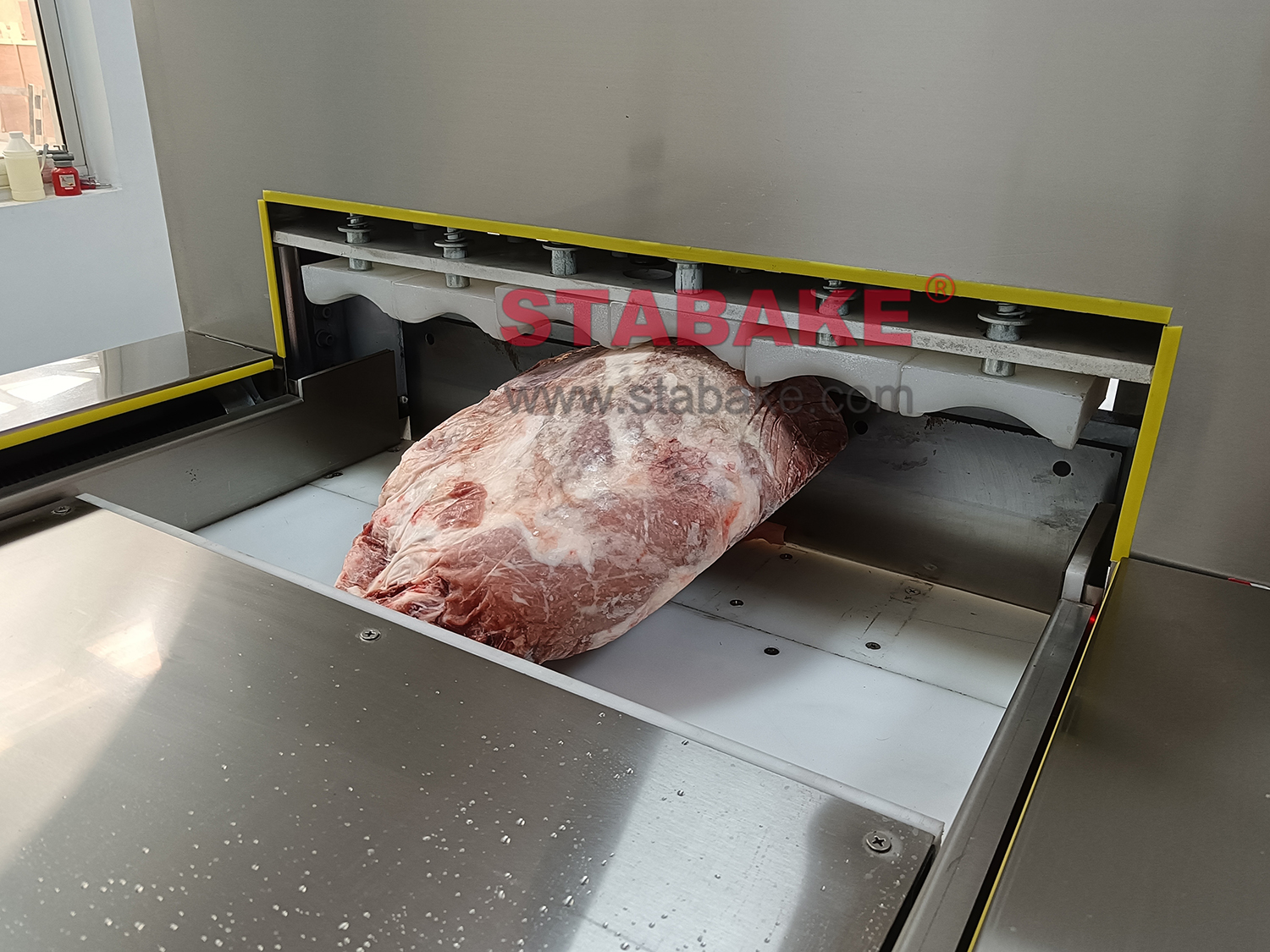

IMG_20211008_124246(1) beef roll cutting machine

Features:

1)  Slice fast, high production efficiency, 60 times per minute knife speed.

2)  Cut meat roll thickness uniform, neatly arranged. the thickness adjustable as you need.

3) The input meat height is 18cm (cutting height and method also can be customized made as requirement).

4)  Adopt PLC controller, automatic and simple operation. all functions are used point switch, easy and fast.

5)  With urgent stop; equipped with a cover and infrared sensor device in the front of cutting knife; and sensor protective cover at feeding part. When the protective cover is open, the cutter will automatically power off to stop running, The cutter can not run unless the security door was shut, double safety protection, to ensure safety.

6)  The blade is made of imported steel composite rolling (sharp, wear-resistant, long service life, neat and beautiful coil shape).


Machine details

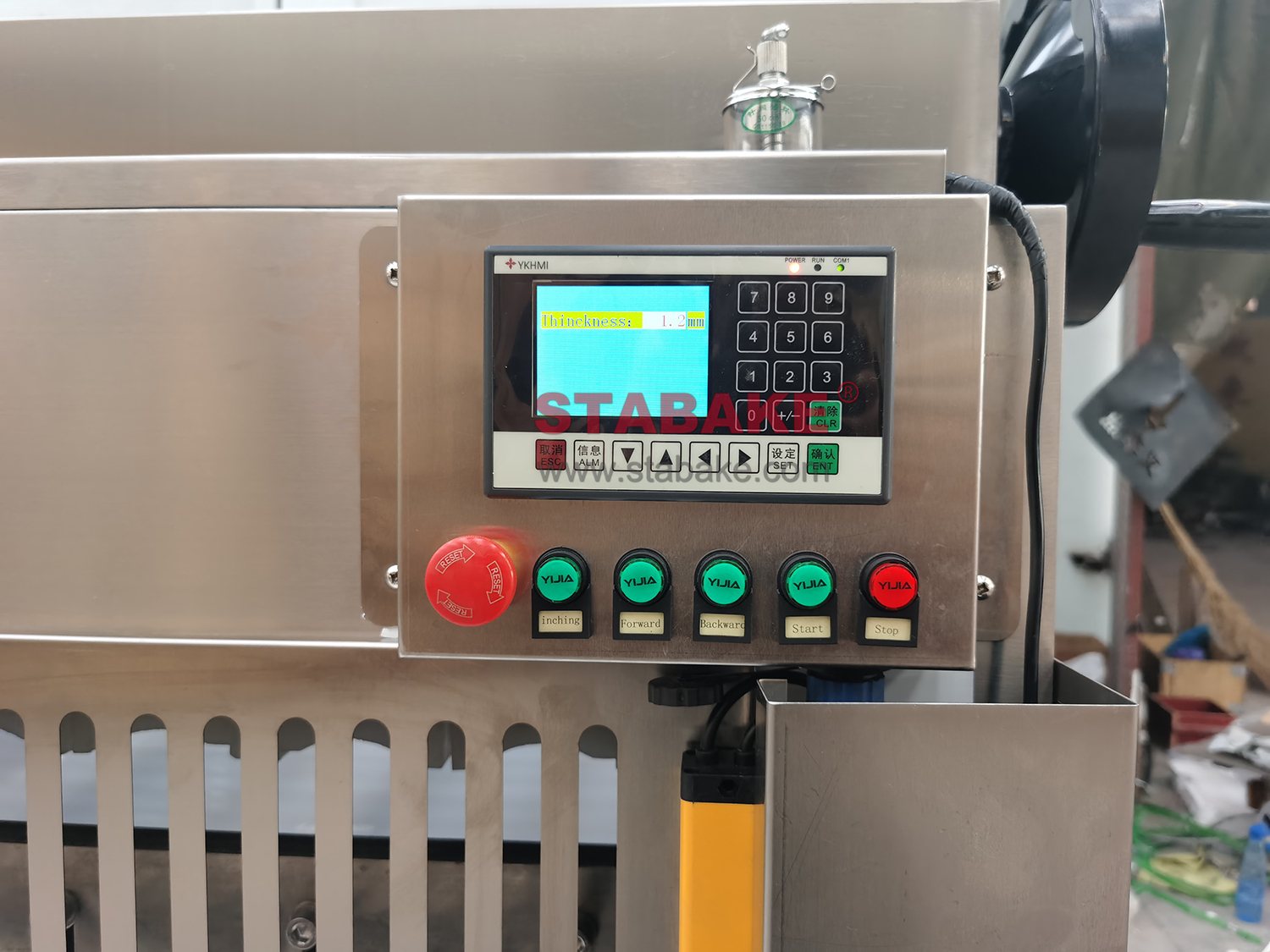

IMG_20211022_165247(1)

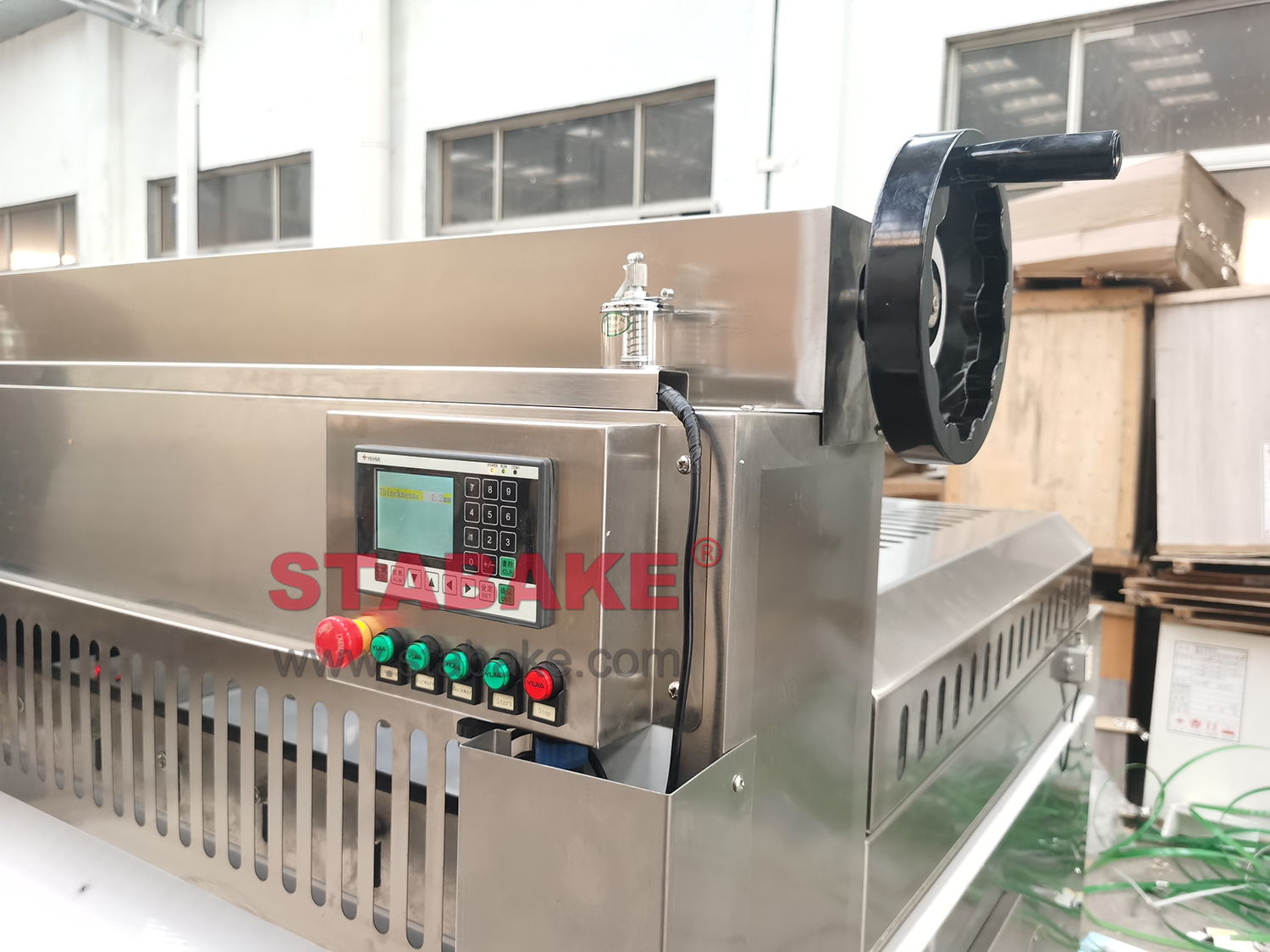

IMG_20211022_165509(1)

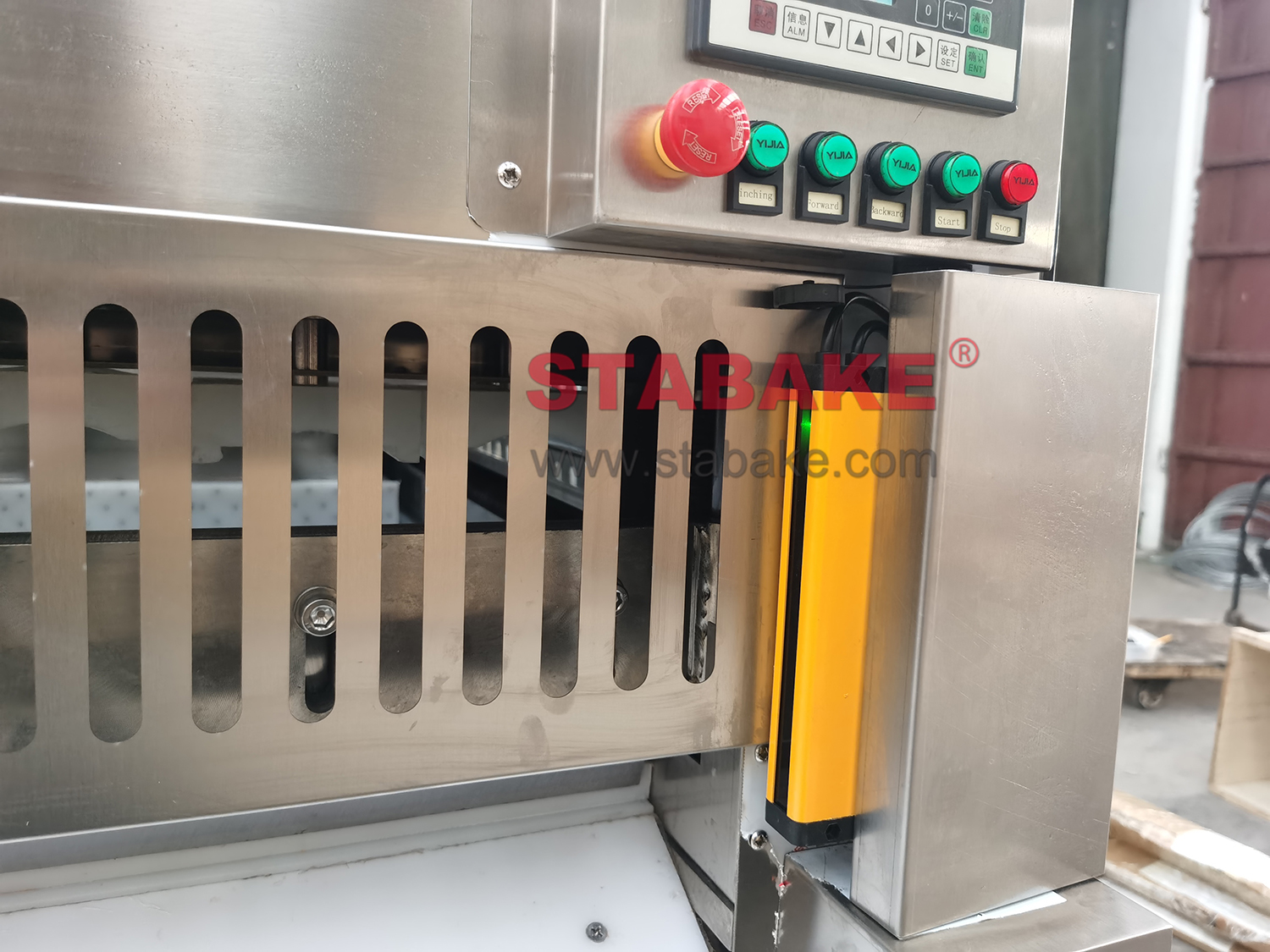

IMG_20211022_165419(1)

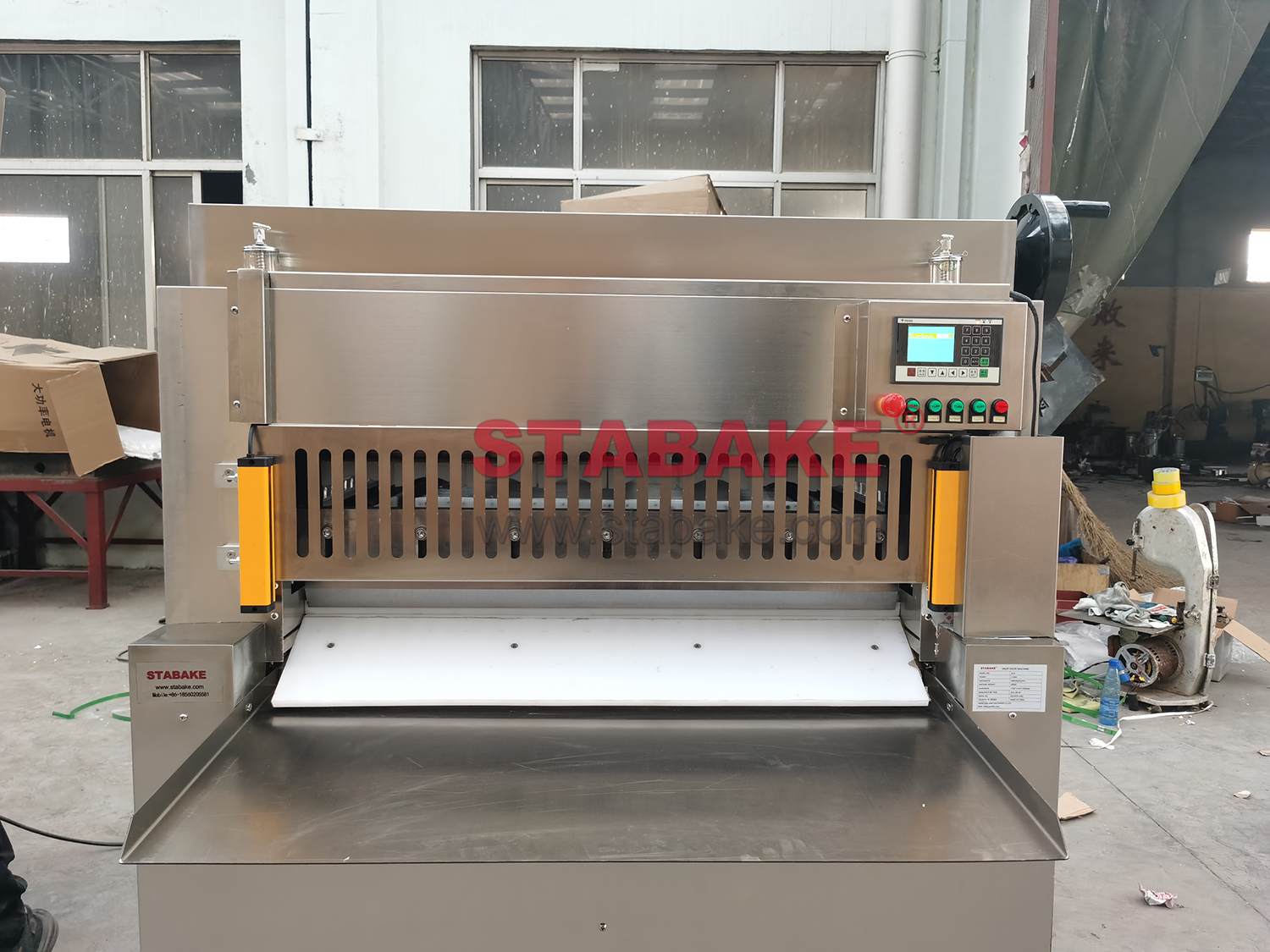

IMG_20211022_165454(1)

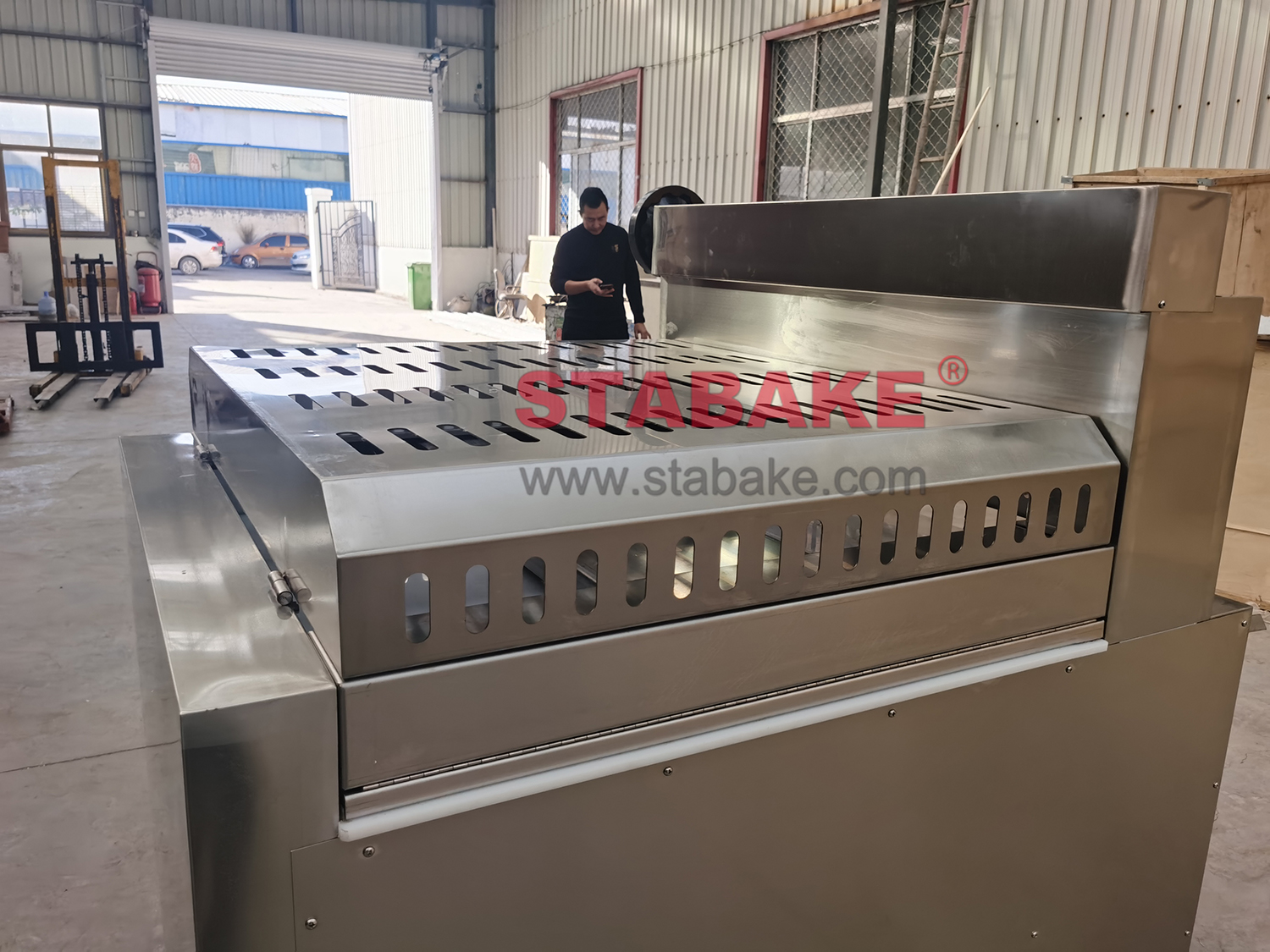

IMG_20211022_150946(1)

Machine Photos

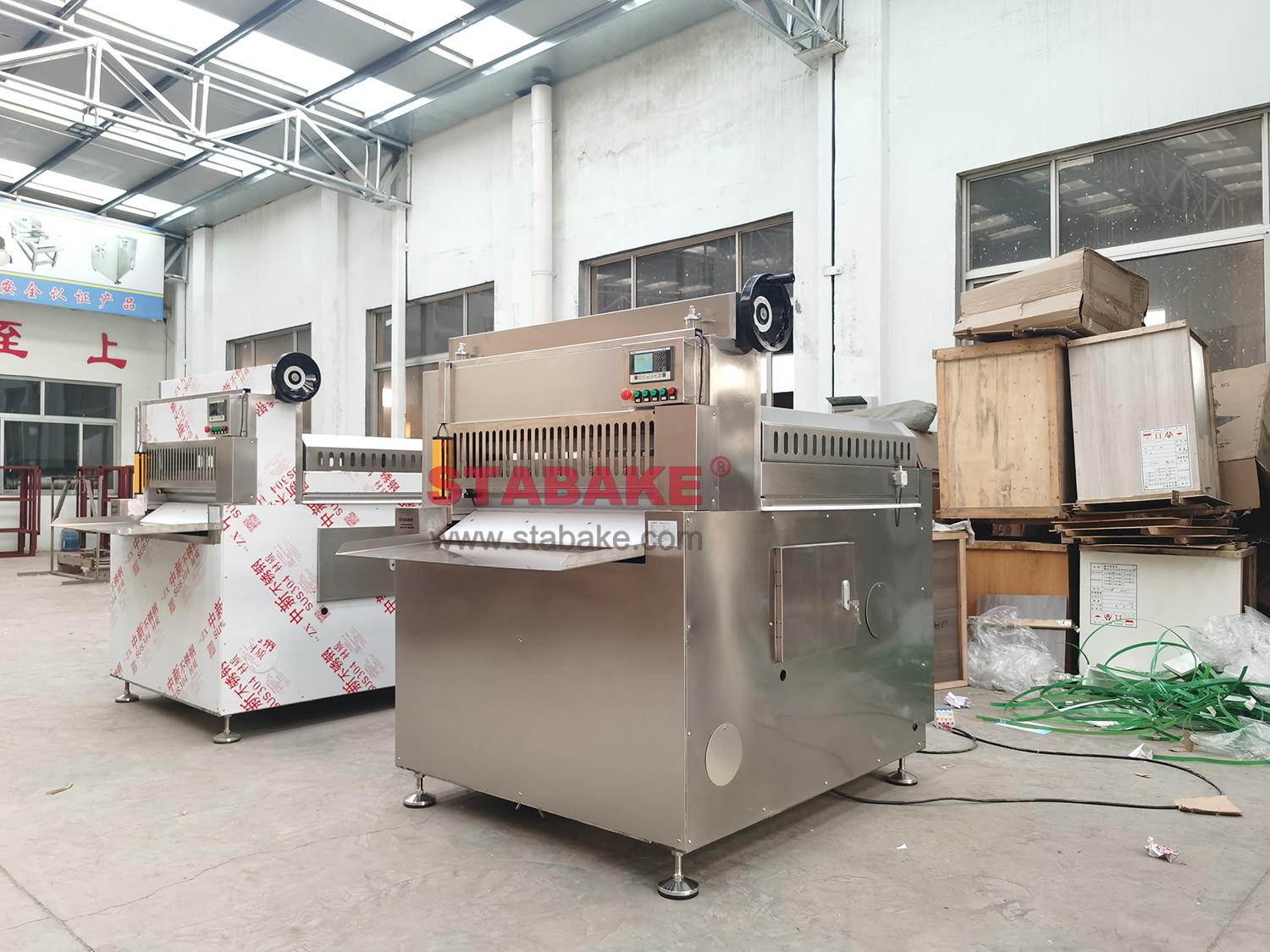

IMG_20211022_165553(1)

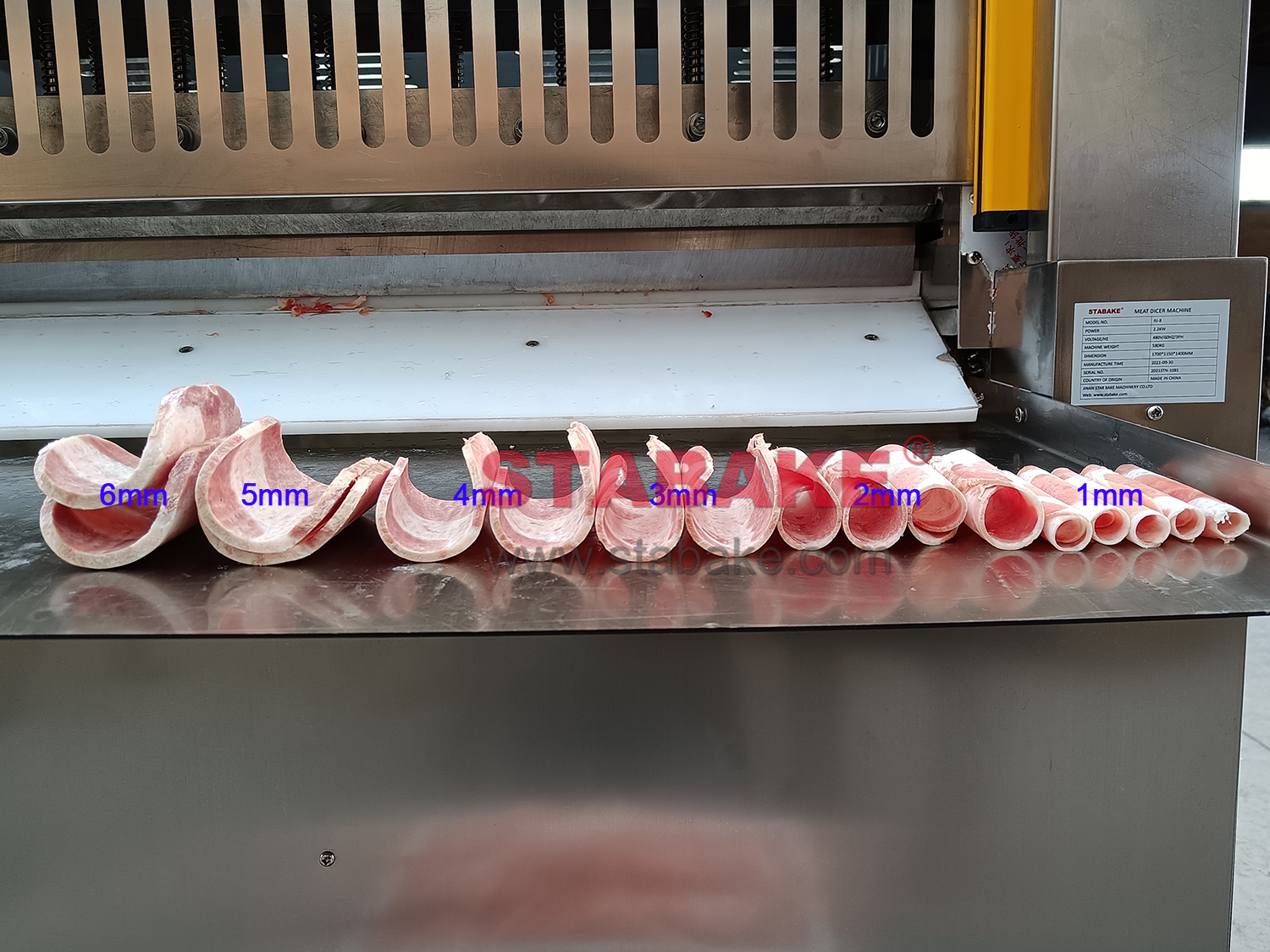

IMG_20211022_154737(1)

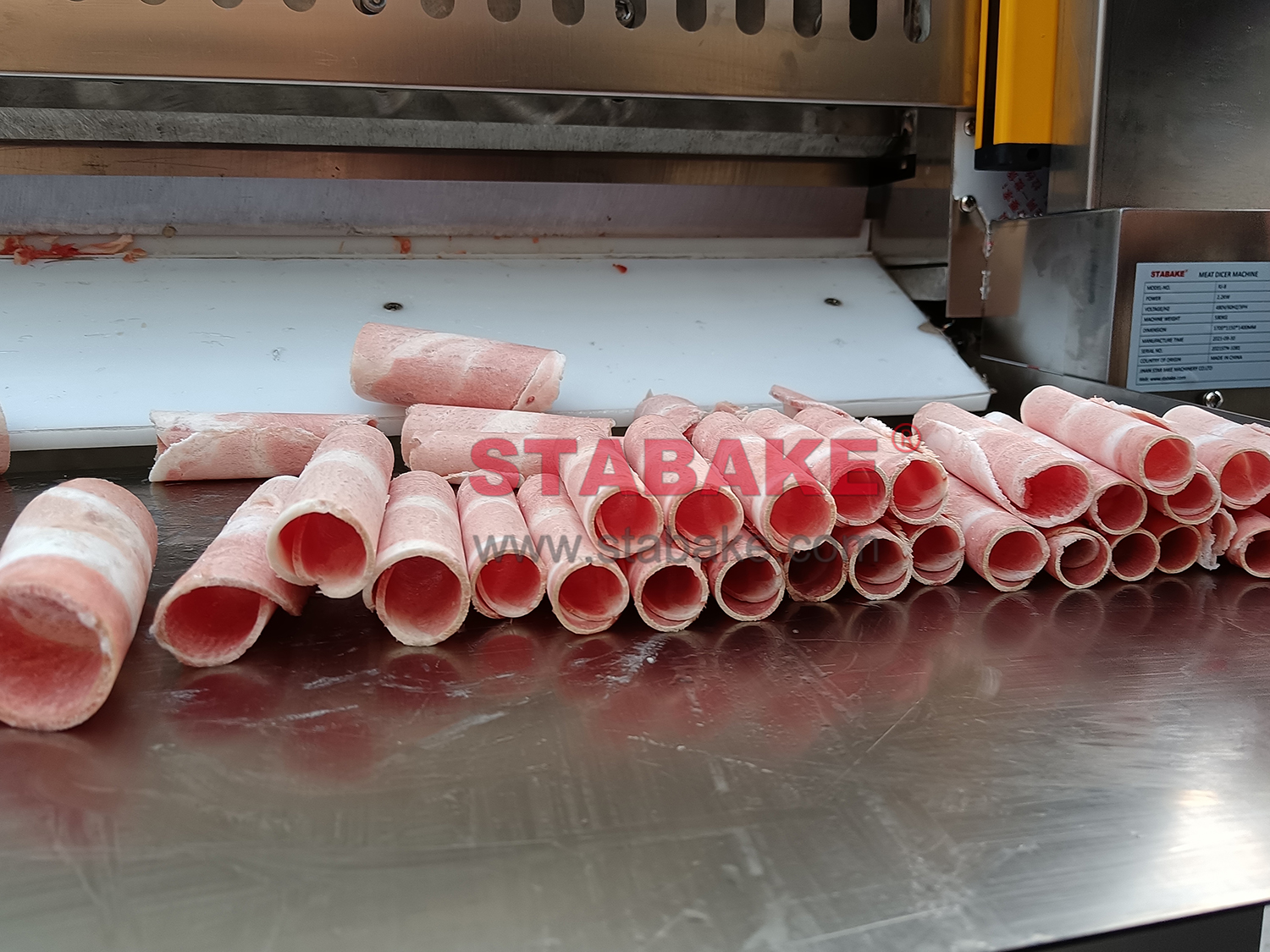

IMG_20211022_154218(1)

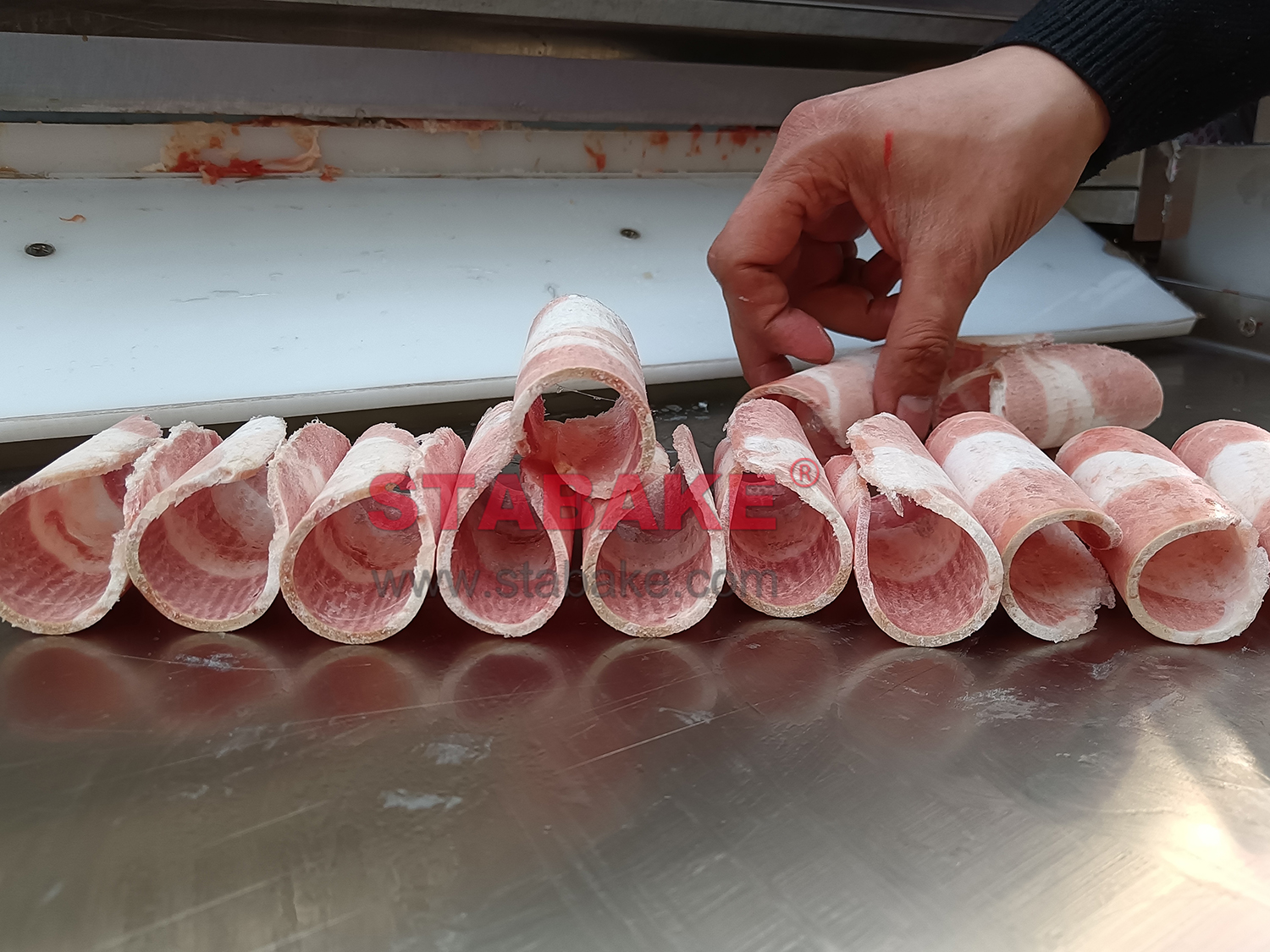

IMG_20211022_154100(1)

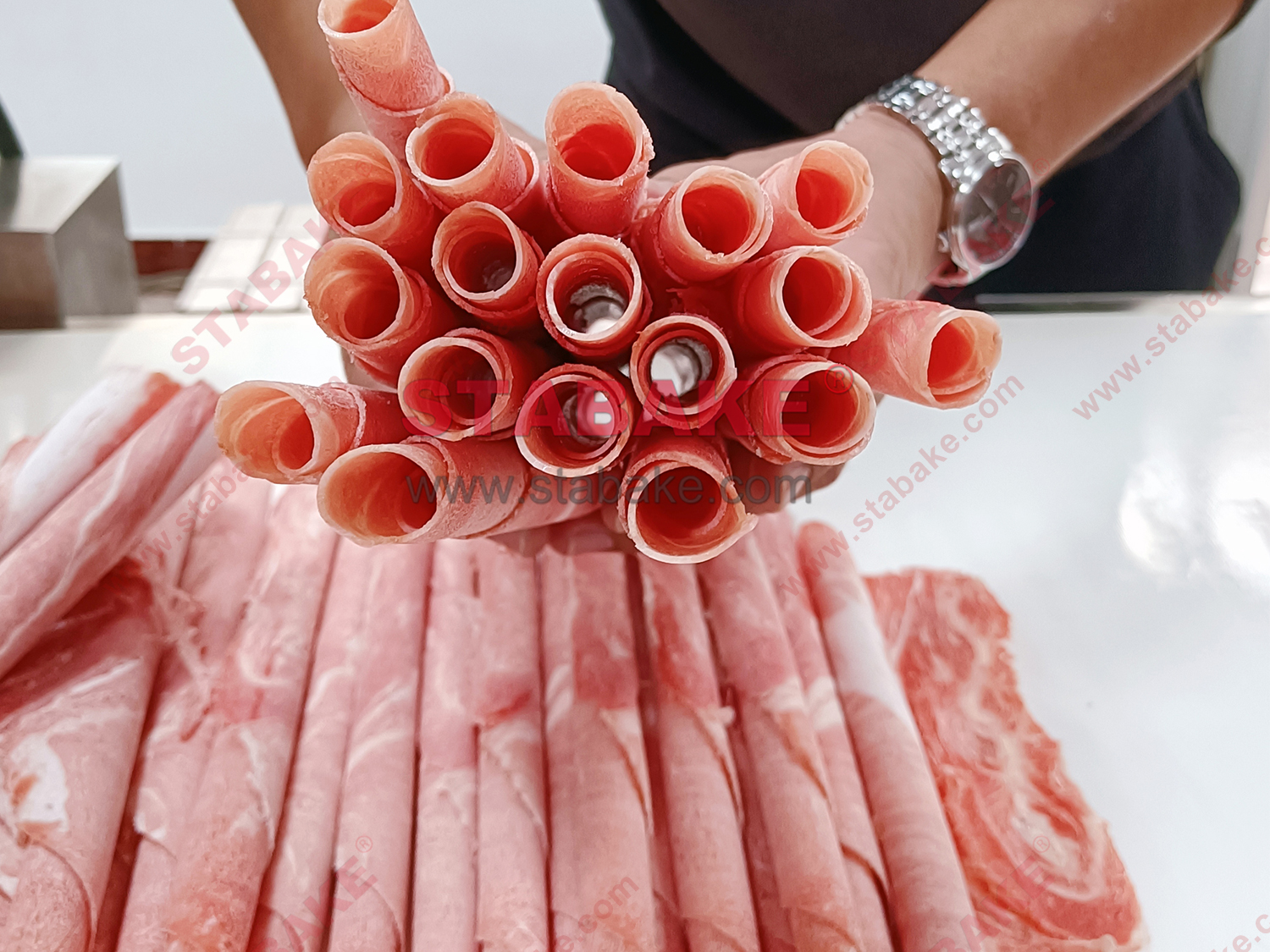

IMG_20211008_141753(1)

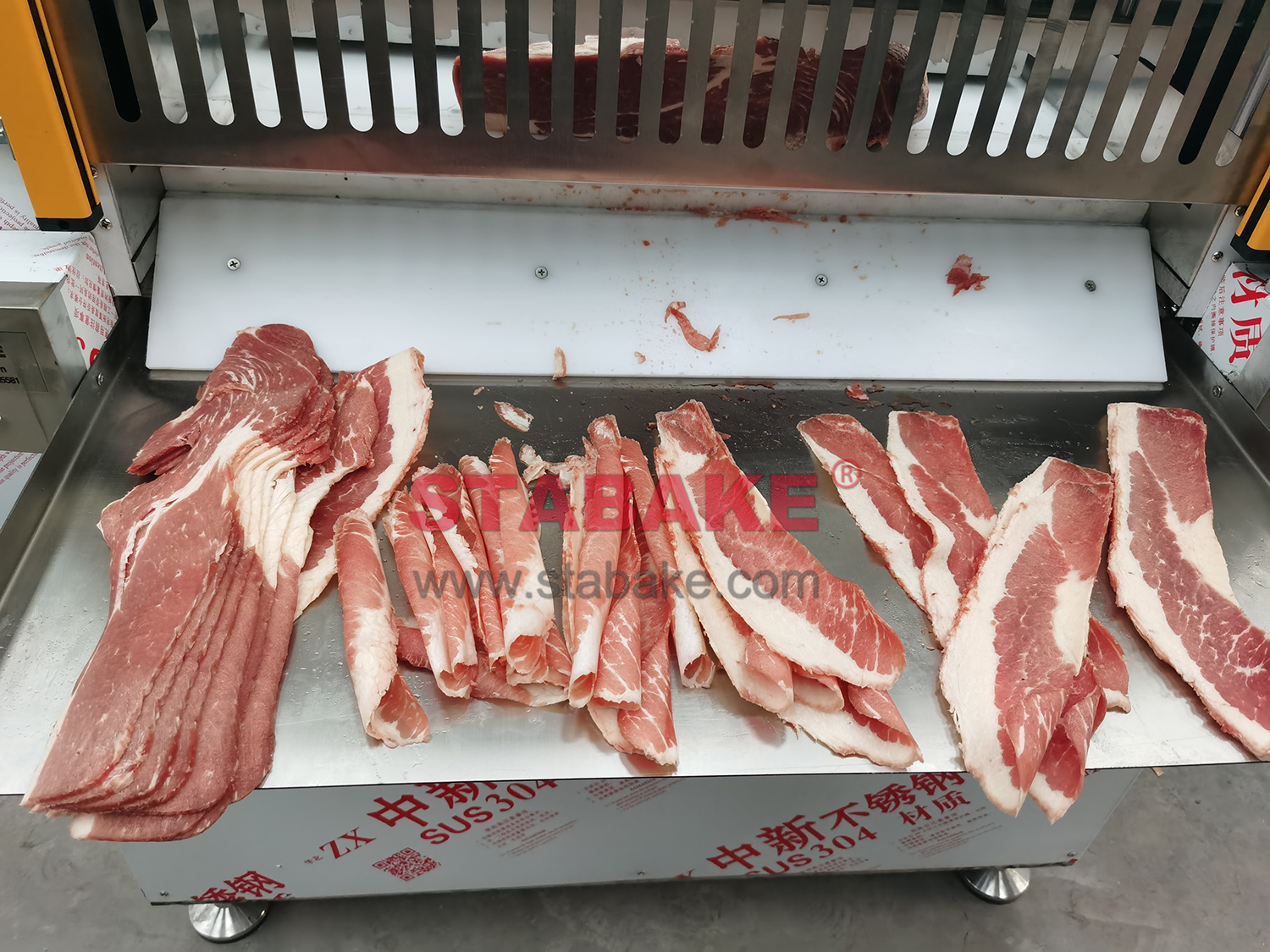

IMG_20211022_170917(1)
