Industrial Onion Processing Machine Onion Peeling Equipment And Onion Root Cutting Machine Plant

Description: YB-2 onion peeling machine and root cutting machine is the most advanced large-scale onion processing equipment at home and abroad. Its characteristics: 1. The machine can peel and cut the onion root for all kinds of onions. 2. Automatically peeled and set with a “peeling controller”, which can freely control the depth of the peeling layer. Only peeling the skin or peeling the second layer of skin can be realized at one time. 3. The onion root cutting machine specially designed the "onion size identification device", which automatically adjusts the cutting root size according to the different sizes of the onions.
Availability:
Quantity:

Onion Processing equipment for Peeling and root cutting machine


Description:

Onion peeling machine and root cutting machine is the most advanced large-scale onion processing equipment at home and abroad. Its characteristics:

1. The machine can peel and cut the onion root for all kinds of onions.

2. Automatically peeled and set with a “peeling controller”, which can freely control the depth of the peeling layer. Only peeling the skin or peeling the second layer of skin can be realized at one time.

3. The onion root cutting machine specially designed the "onion size identification device", which automatically adjusts the cutting root size according to the different sizes of the onions.

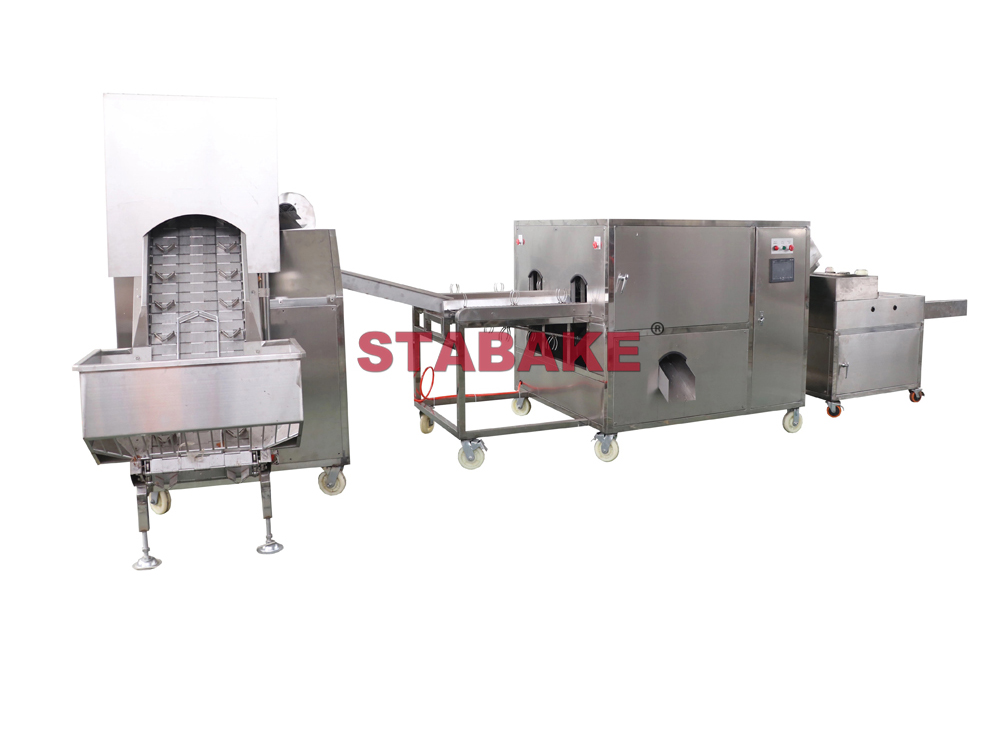

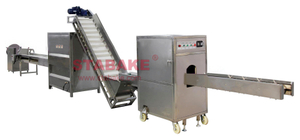

Onion processing Equipment: Onion peeling machine - Onion root cutting machine - Onion ring cutting machine

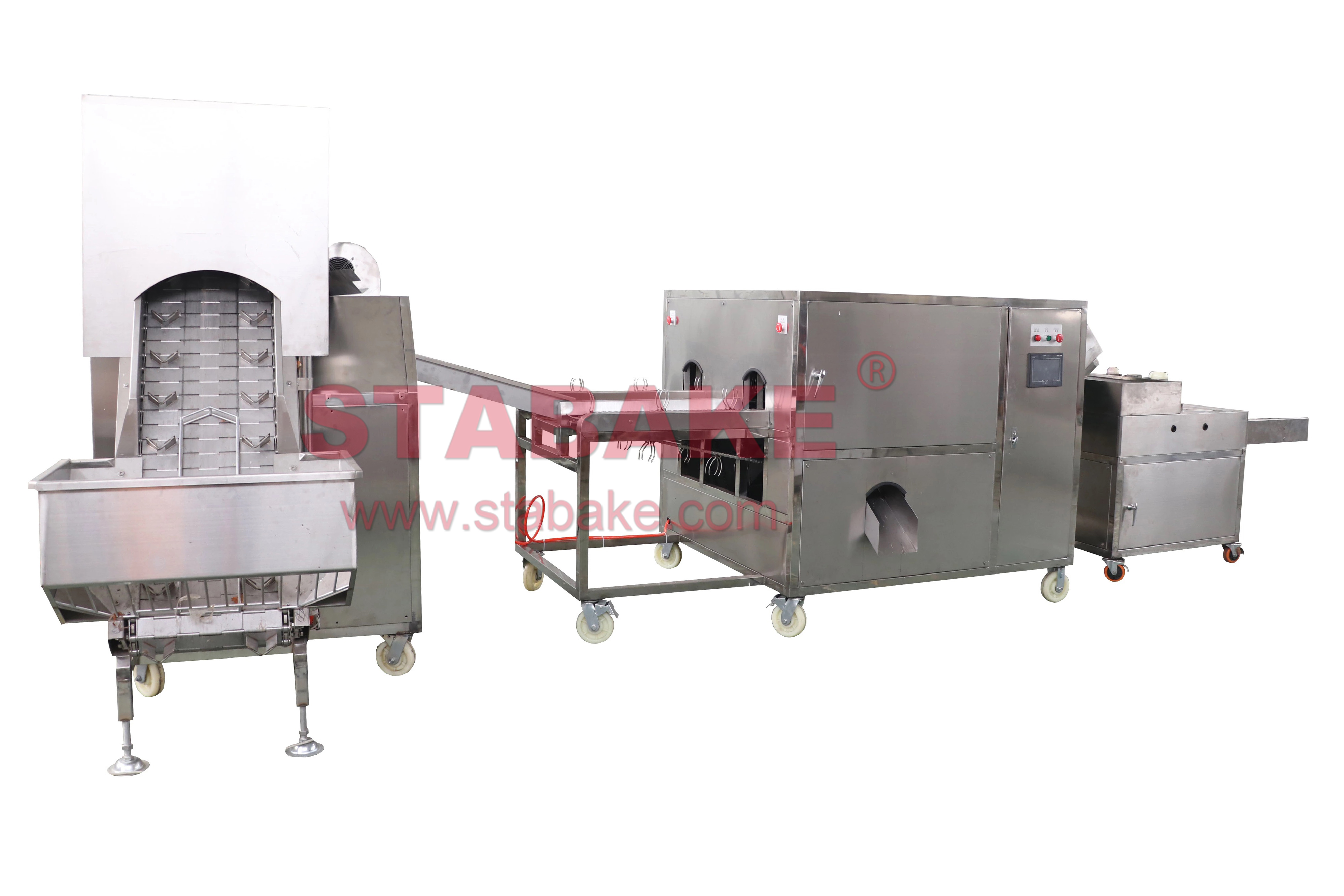

industrial onion processing machine

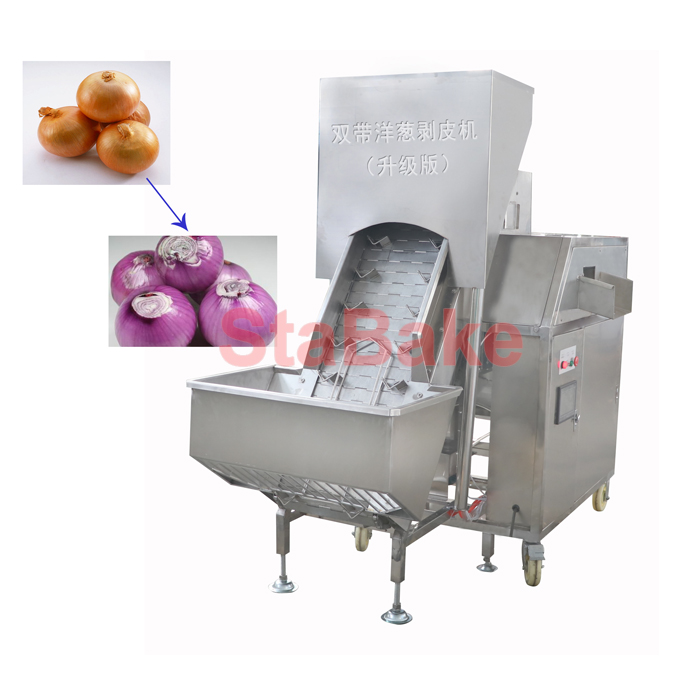

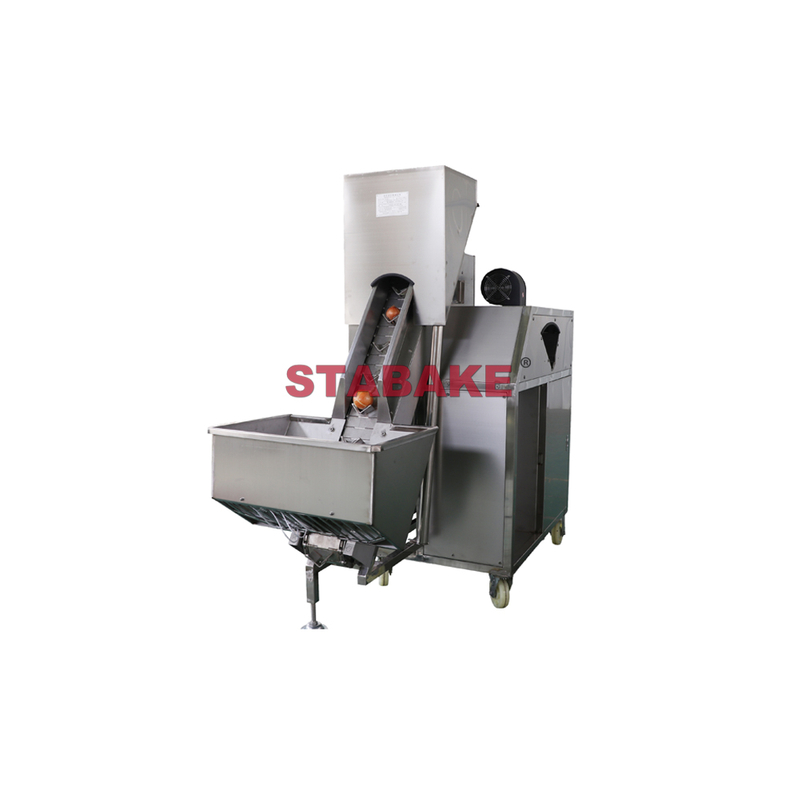

Onion peeling machine Parameter:

Model YB-1 YB-2 YB-3
Power(kw) 1.52 1.52 1.52
Capacity (kg/h) 500-700 1000-1500 2000-2500
Air Source ≥ 1.0MPa ≥ 1.0MPa ≥ 1.0MPa
Weight (kg) 286 320 340
Dimension(mm) 2050*1060*1960 2080*1150*1980 2150*1150*2000

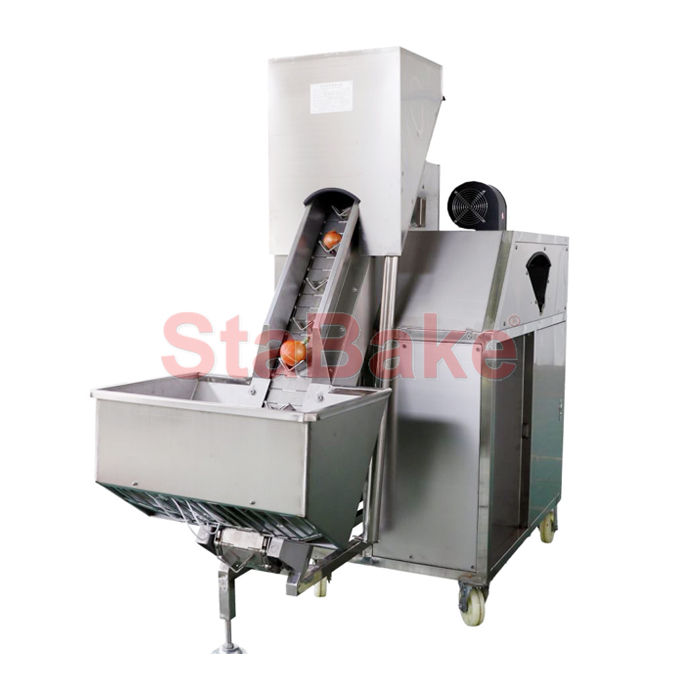

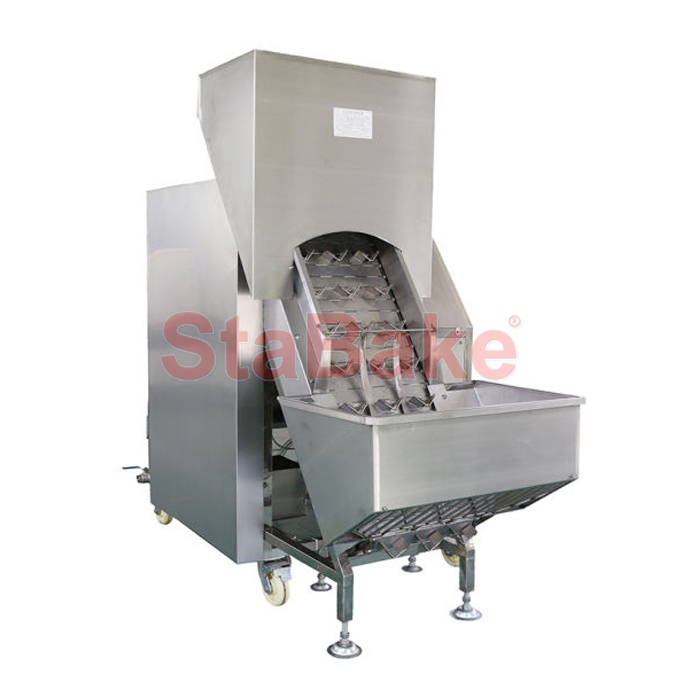

Photo YB-1 YB-2 (1) YB-3

Onion Root Cutting Machine Parameter:


Model YQ-1 YQ-2
Power(kw) 1.0 2.22
Voltage  380V,50HZ or customized 380V,50HZ or customized
Capacity  45-60pcs/min (60-100mm diameter) 90-120pcs/min (60-100mm diameter)
Weight (kg) 210 350
Dimension (mm) 3000*800*1340 2650*1400*1400

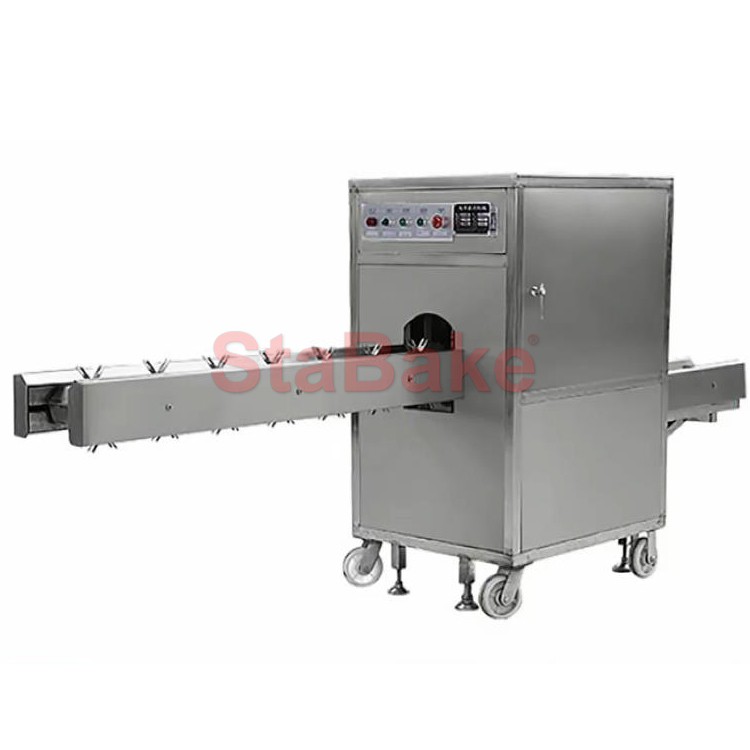

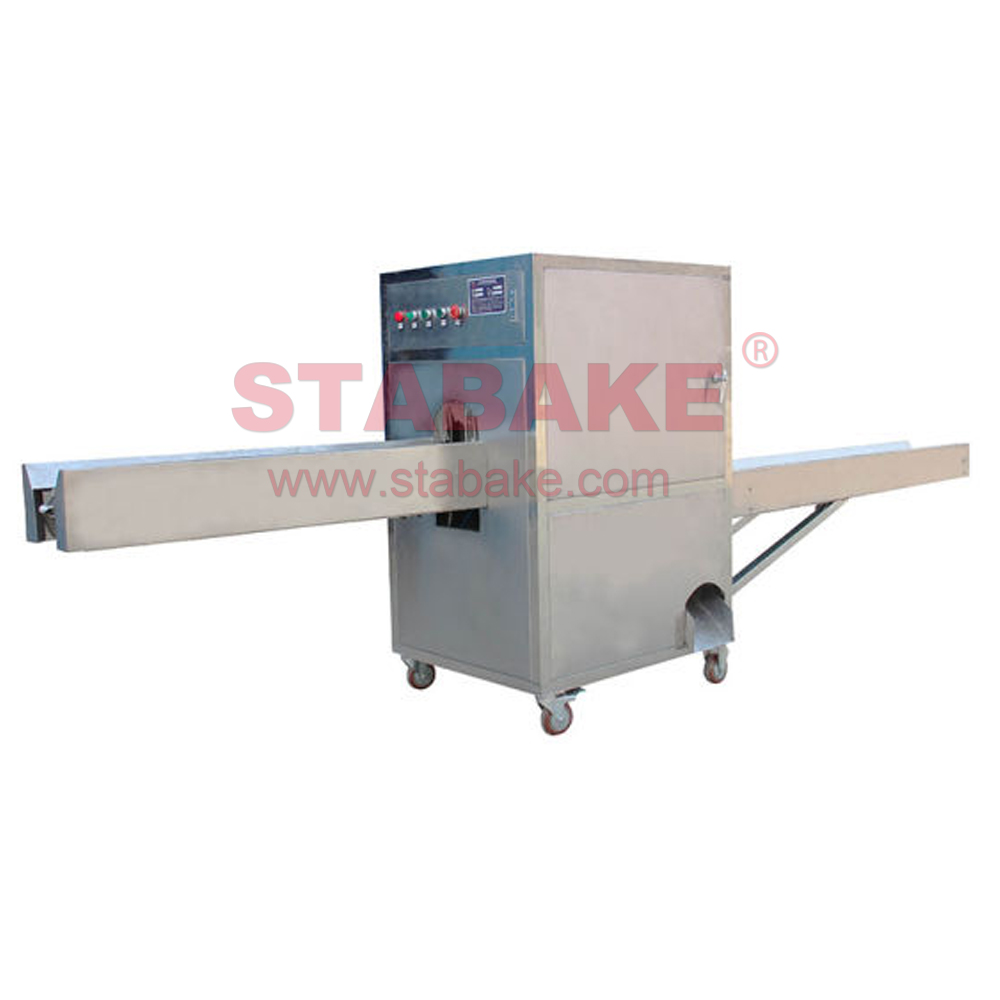

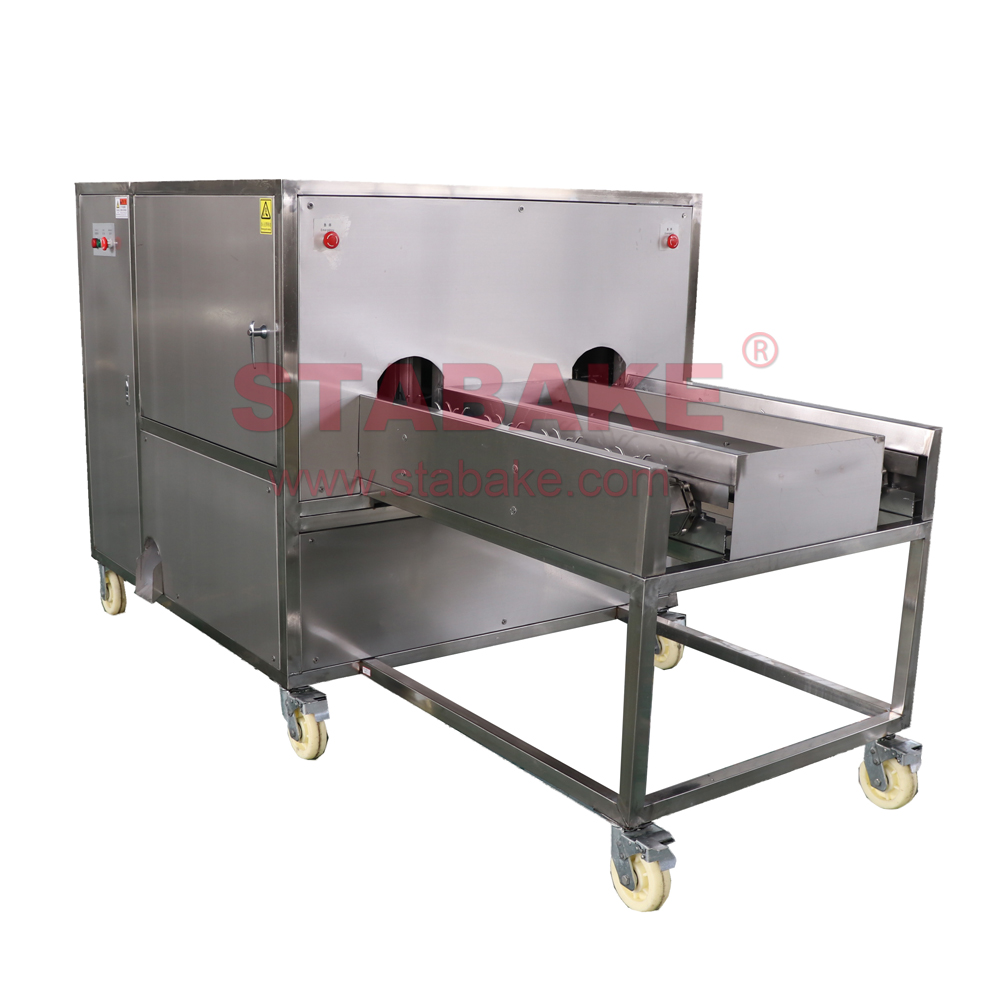

Photo onion root cut onion root cutting machine

Onion Rings Cutting machine Parameter:

Model Power(kw) Capacity (kg/h) Weight (kg) Dimension(mm)
YC 0.37 Based onion diameter 102 1650*800*1000

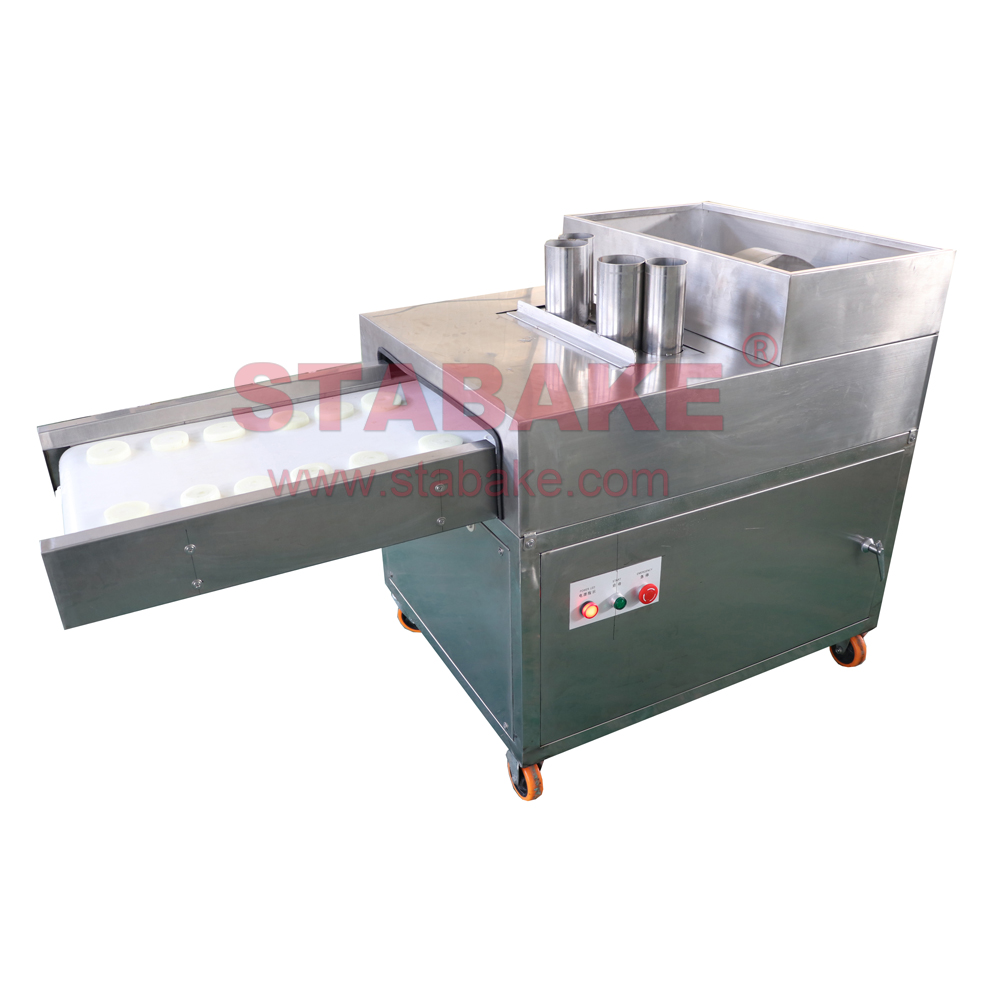

onion ring cutting machine


Machine Photos:

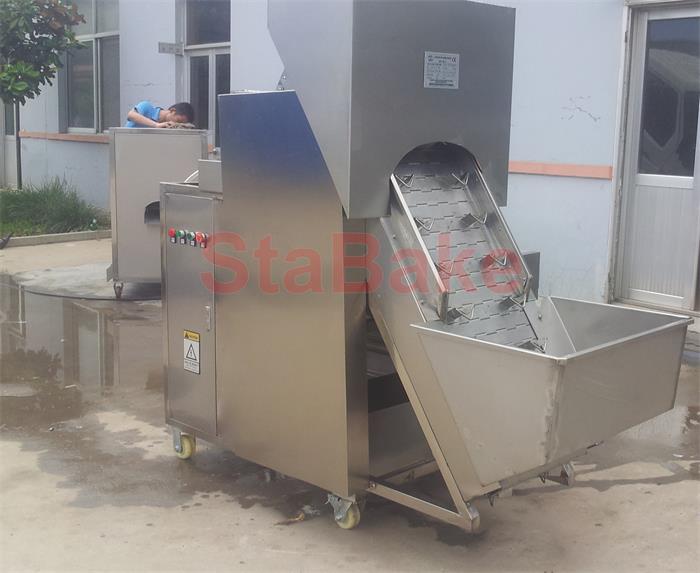

Industrial Onion Peeler
