| Quantity: | |
|---|---|
CHD30
STABAKE
84386000.00

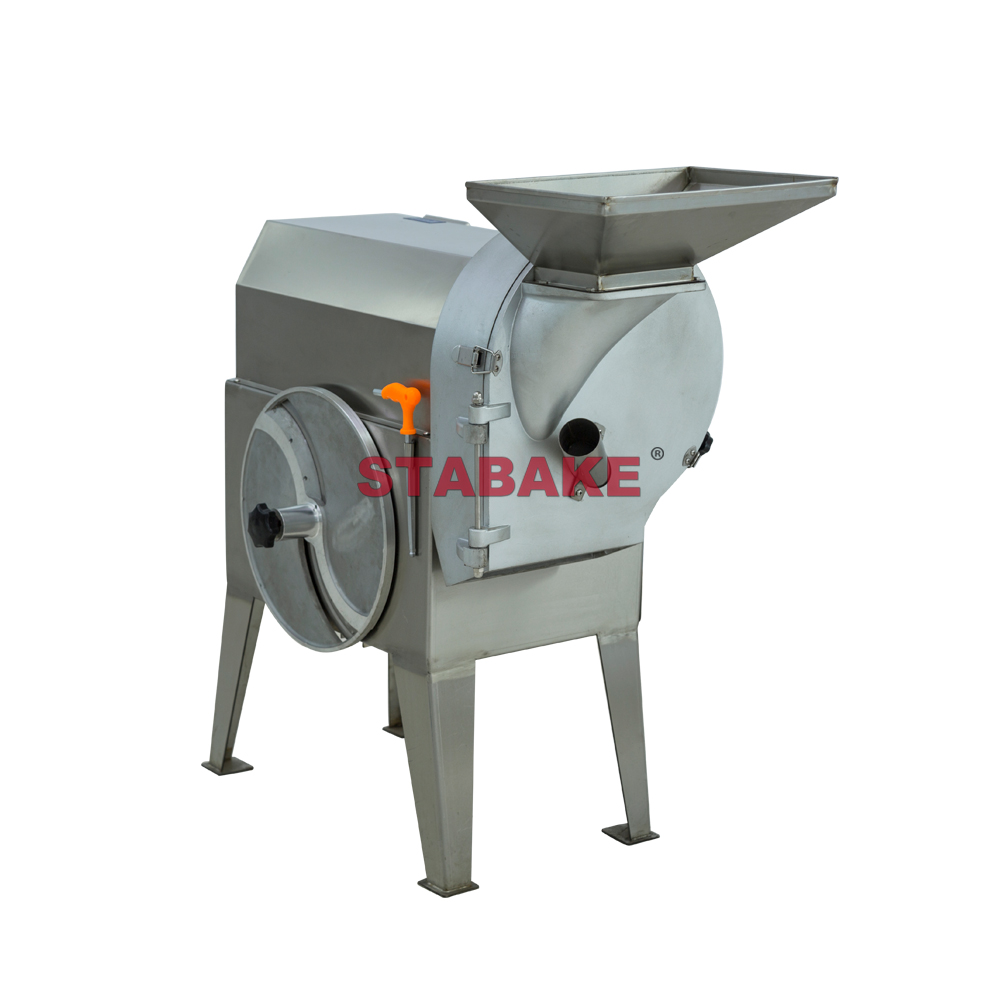

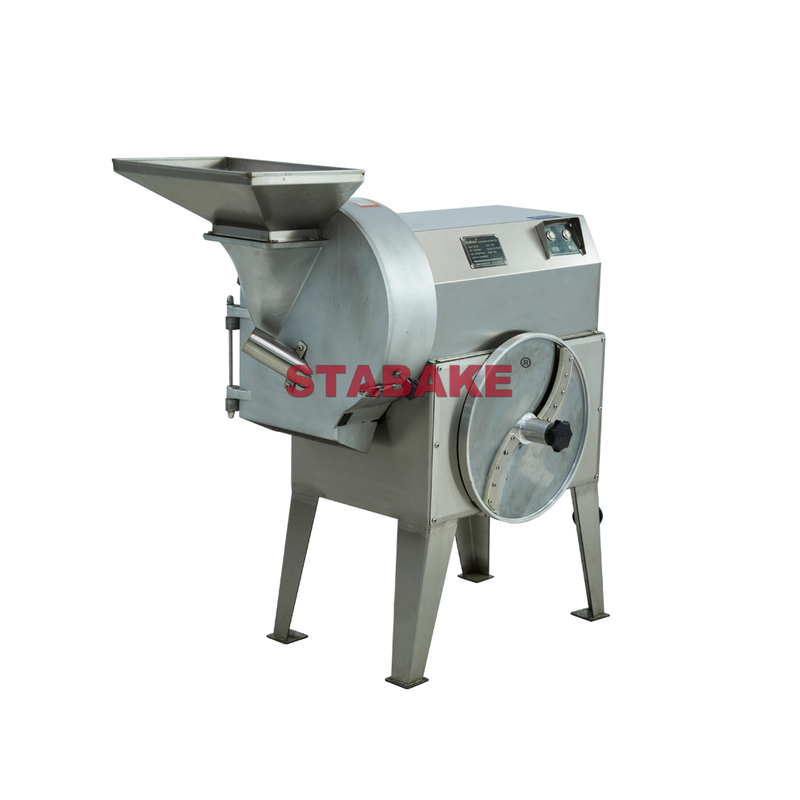

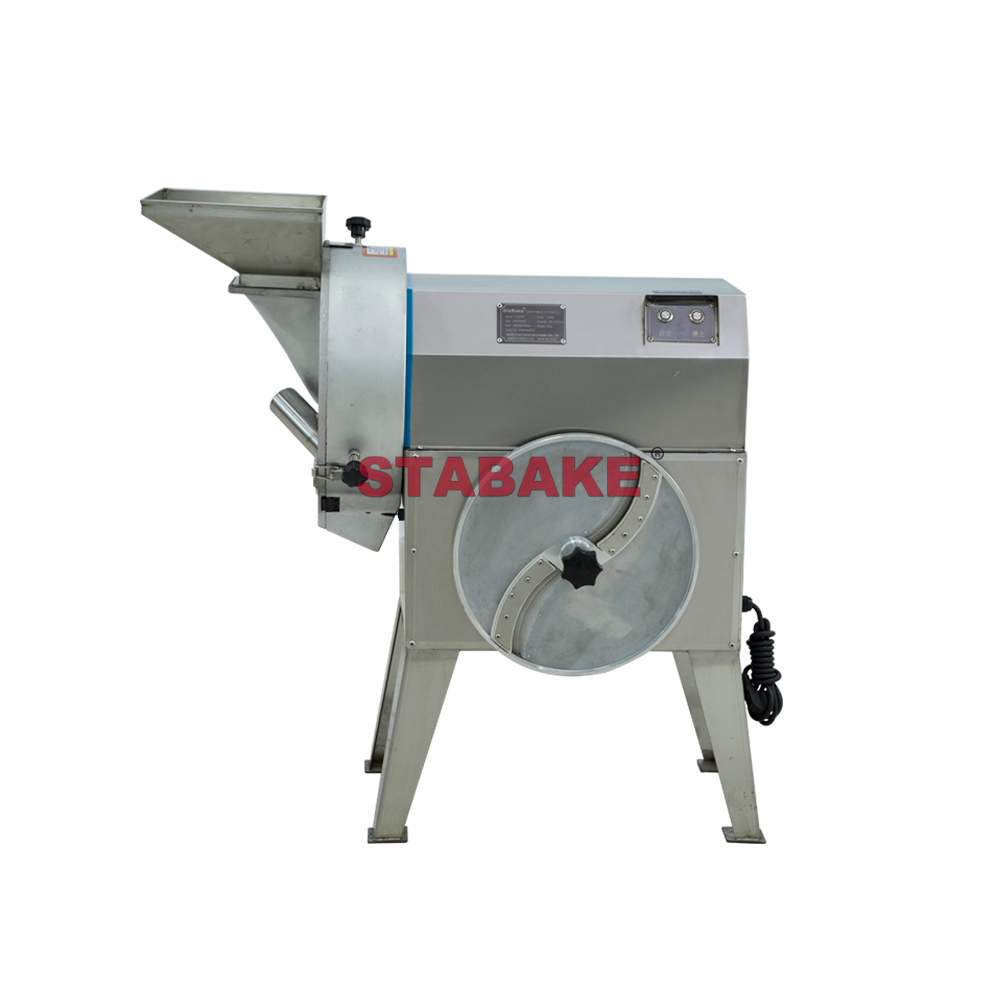

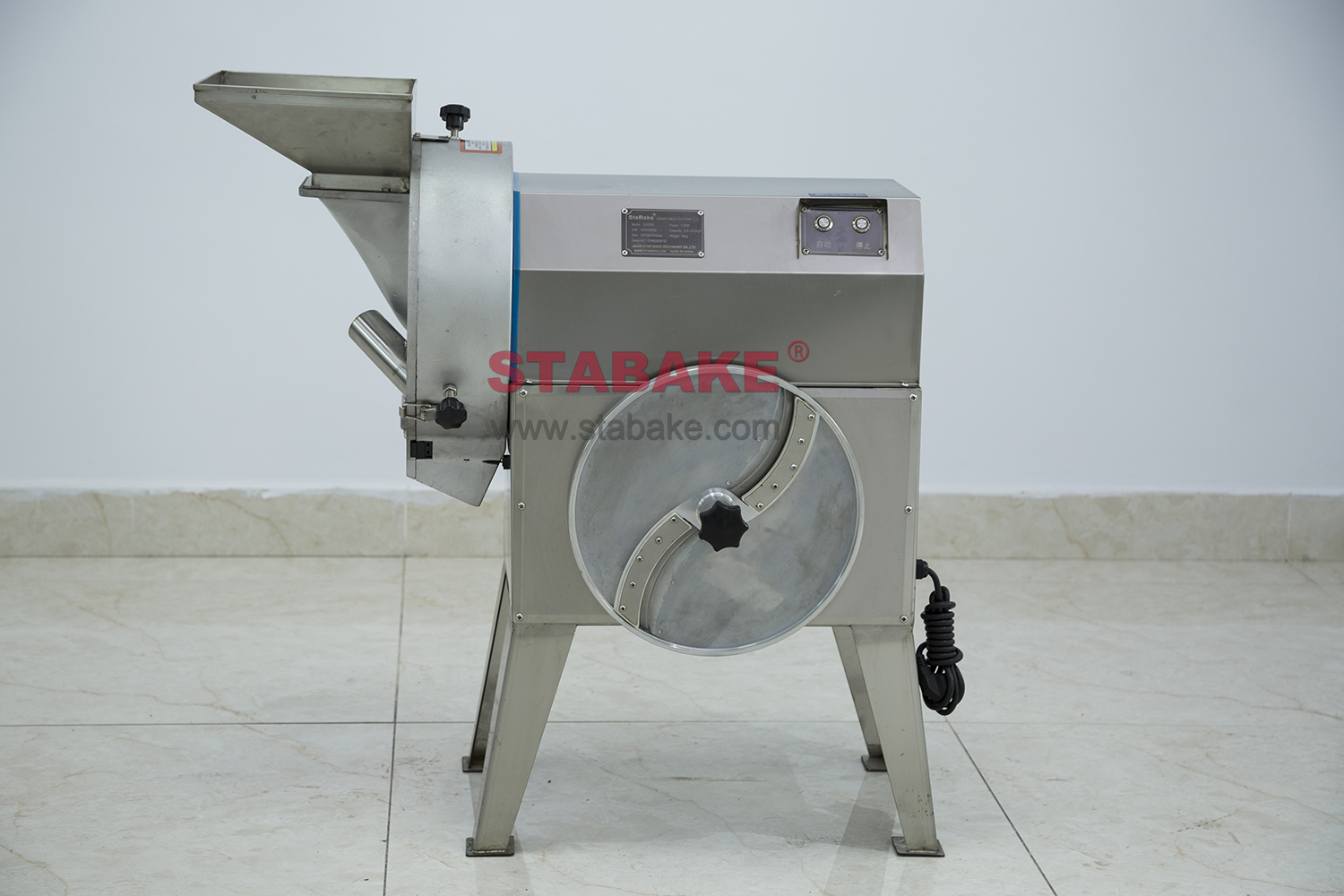

Description of Carrot cutting machine:
The CHD30 root vegetable cutting machine is mainly used for cutting various corm root vegetables into cubes, or slices, also shreds by changing different blade disc.
Cubes size: 10*10*10mm; 20*20*10mm, shreds 2mm; 4mm; slics 2mm Or other size customized as per customer’s demand.The machine is multi-functional, easy operation, low consumption and high efficient, it suitable used in kitchen, restaurant,and Catering distribution center.

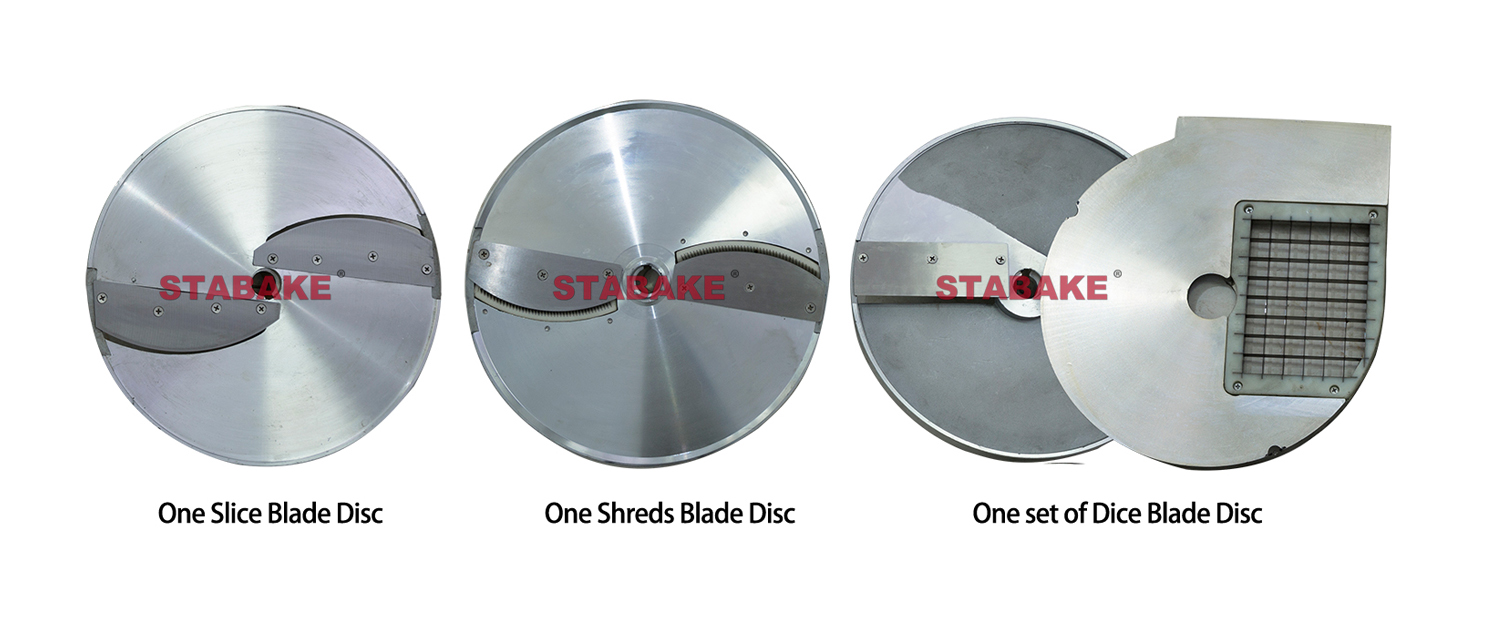

The machine equipped with 4 blade disc: one set dice blade(includ 2 disc), one shreds blade, one slices blade.
Technical Parameter
Model | CHD330 |
Power | 0.75kw |
Voltage | ~220V/ 3N~380V |
Capacity | 300-1000kg/h |
Feeding port size | φ80mm |
Weight | 55kg |
Dimension | 710*400*890mm |
Cutting Size | 2-10mm |
shredding size | 2-10mm |
cube size | 10*10*10mm; 20*20*10mm or customized |
Application
The CHD30 bulb rhizome vegetable cutting machine is used for slicing, shredding, and diceing of rhizomes, such as radishes, potatoes, sweet potatoes, taro, bamboo shoots, onions, ginger, apples, mangoes, and many other melon and fruit slices. The thickness and size specifications can be customized
Potato shreds
Apple slice
Onion rings
Carrot shres
Radish dice
Pumpkin dice
Machine Details:

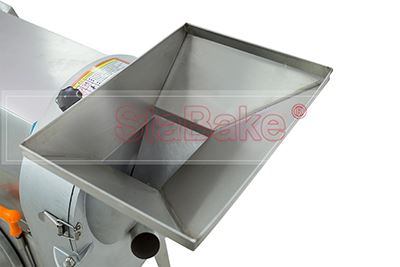

 | 01-Feeding hopper Enlarge Hopper for high production capacity suitable for big size root vegetable High efficiency working |
02-Feeder for long stem vegetable suitable for carrot, cucumber, lotus root vegetable feeding. |  |

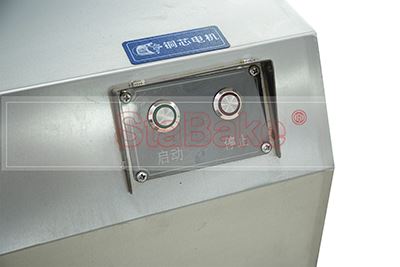

 | 03-Electric control With emergency stop protective Safety and easy operation. |

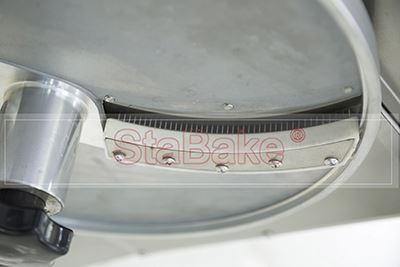

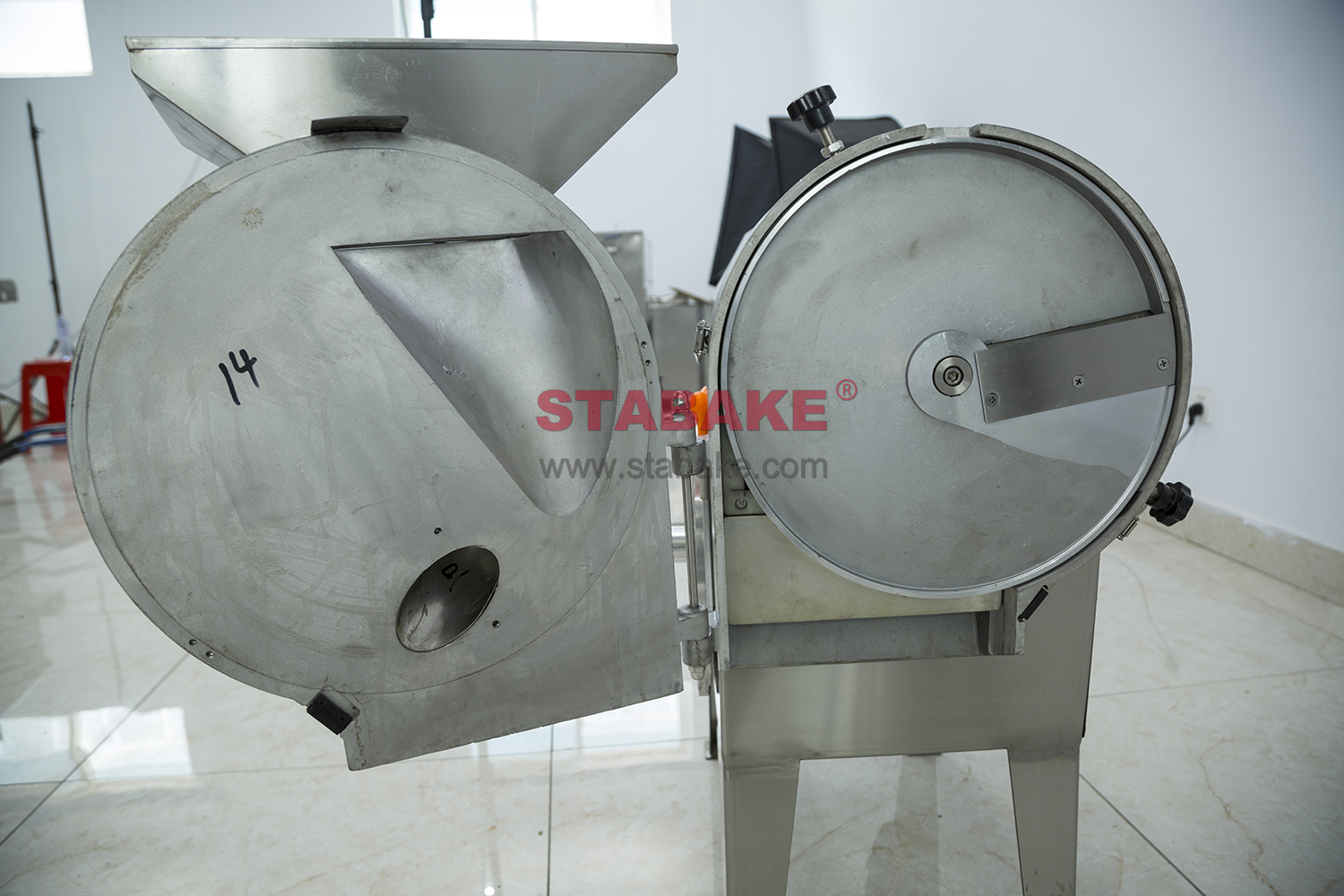

04-Blade knife High quality blade disc Stainless steel knife 4 kind blade including: dicing, shredding and slicing. |  |
