Arabic bread/ Pita bread/ Tortilla/ Roti Chapati Making Machine
1. The Output bread can be made in single, double, triple or more rows according to capacity requirement.
2. Production Speed Frequency adjustable for belt and roller rotation.
3. Various size of bread adjusted by changing different molds, such as 15cm, 18cm, 20cm, 25cm,30cm etc.
4. Customized bread shape and pattern as you needs, such as round, rectangle etc.
5. The bread thickness is adjustable in the range of 0.8mm- 10mm.
6. Multi rollers continuous rolling and forming at one-time, uniform in size and thickness.
7. Automatic conveyor, automatic molding, automatic recycle the dough sheet.
Bread Shaping Machine Instruction:
The DBJ series flat bread dough shaping machine is specially designed for Pita bread and like products. The machine adopts the principle of multi rolls continuous rolling and forming at one-time, uniform in size and thickness. The speed of forming and the thickness of product could be adjustable.
The matched different molds for different product of Tortilla, Chapati, roti, Pita bread, Arabic bread, Shawarma bread, Lebanese bread, Naan, Paratha, Empanada wrappers, Wonton wrappers, Pizza base etc.
Bread Shaping Machine Technical Parameter:
Model | Power(kw) | Capacity(pcs/h) | Press Roller Width(mm) | Product Size (mm) | Product Thickness (mm) | Weight (kg) | Dimension(mm) |
DBJ-200 | 2.2 | 1000 | 200 | 180mm or Customized | 0.8-10mm adjustable. the max thickness can be 1cm | 250 | 1200*600*1150 |
DBJ-250 | 2.2 | 1000 | 250 | 200mm or Customized | 260 | 1200*650*1150 | |
DBJ-300 | 3 | 1000 | 300 | 250mm or Customized | 300 | 1700*680*1110 | |
DBJ-350 | 3 | 1000 | 350 | 300mm or Customized | 330 | 1900*730*1110 | |
DBJ-380 | 3 | 1000 | 380 | 320mm or Customized | 350 | 1900*780*1110 | |
DBJ-400 | 3 | 1000 | 400 | 350mm or Customized | 370 | 1900*780*1110 | |
DBJ-450 | 3 | 1000 | 450 | 380mm or Customized | 400 | 1900*830*1110 | |
DBJ-500 | 3 | 1000 | 500 | 500mm or Customized | 430 | 1900*880*1110 | |
DBJ-550 | 3 | 1000 | 550 | 550mm or Customized | 460 | 1900*930*1110 | |
DBJ-600 | 3 | 1000 | 600 | 600mm or Customized | 490 | 2100*980*1110 | |
Note | The machine is customized made as customer demand. |

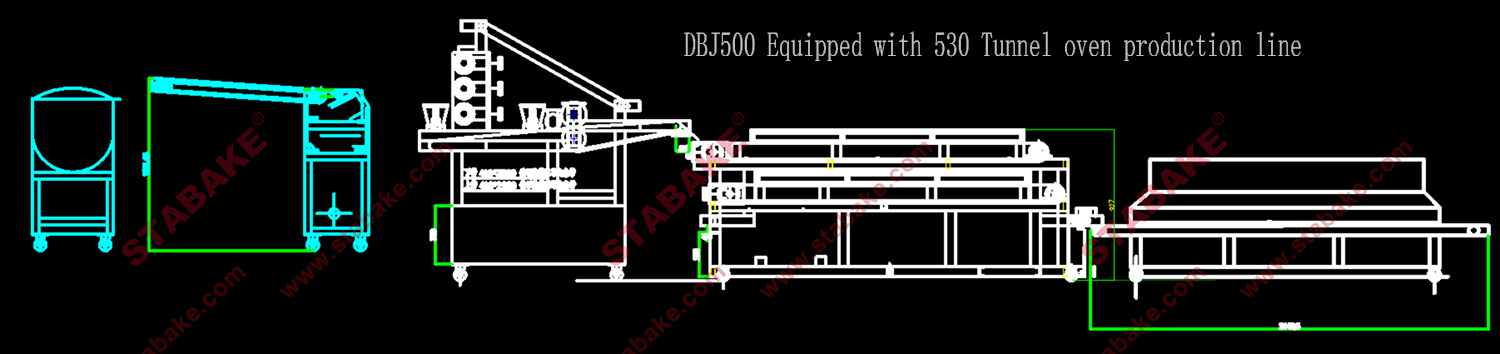

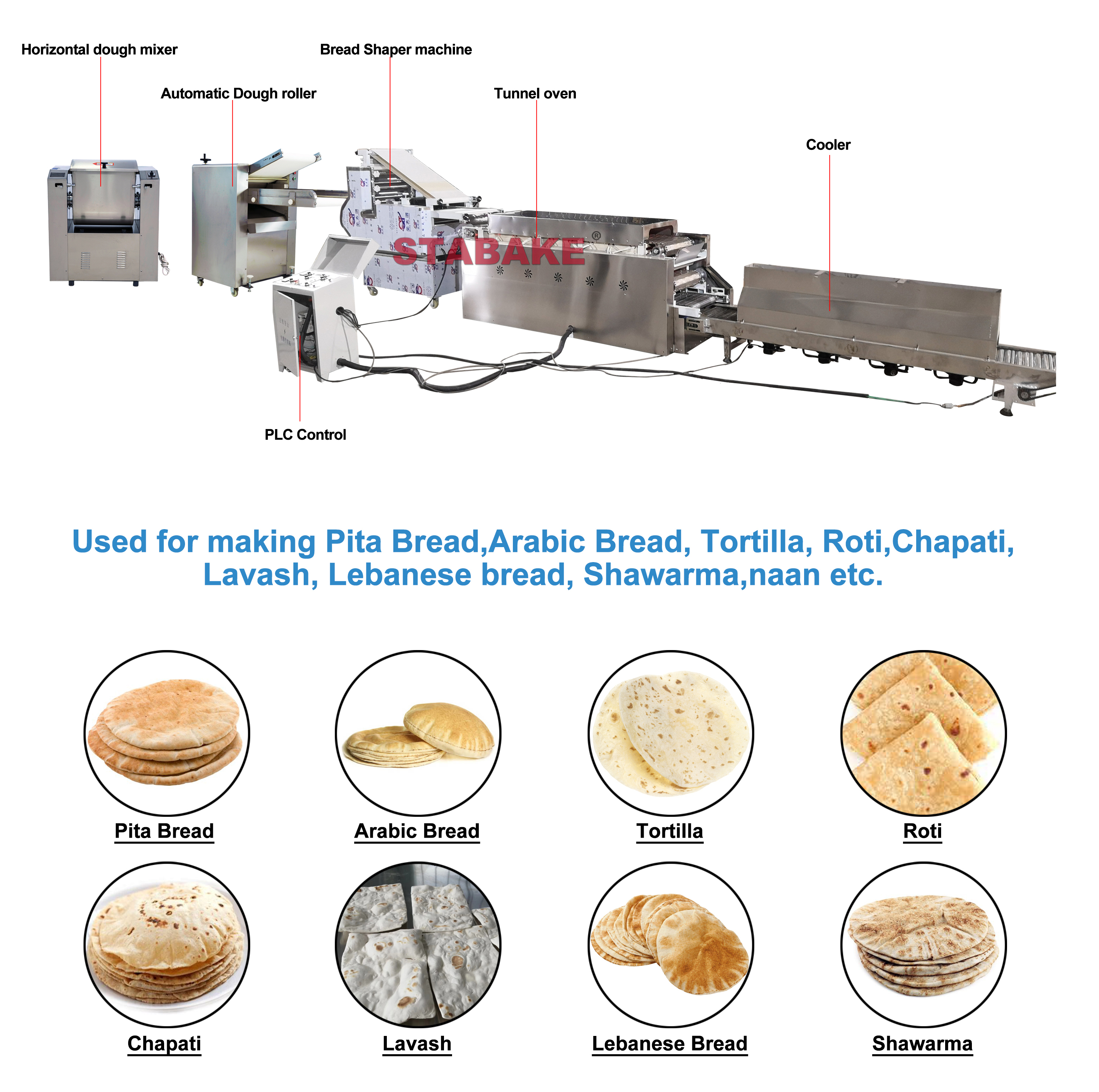

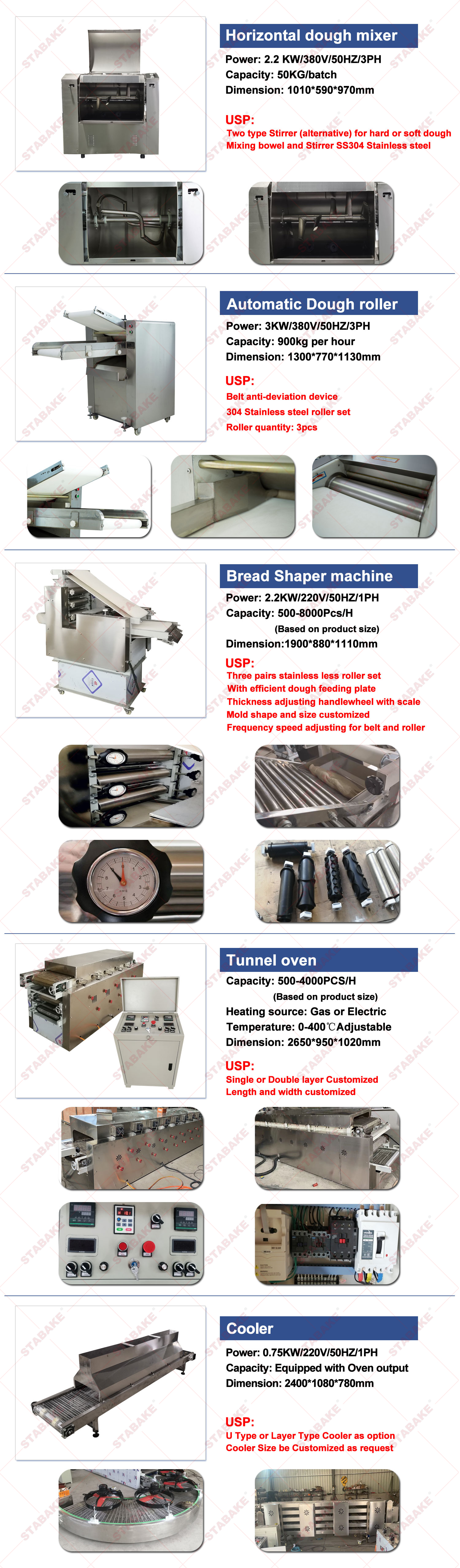

Production Process Details (DBJ-500 model):

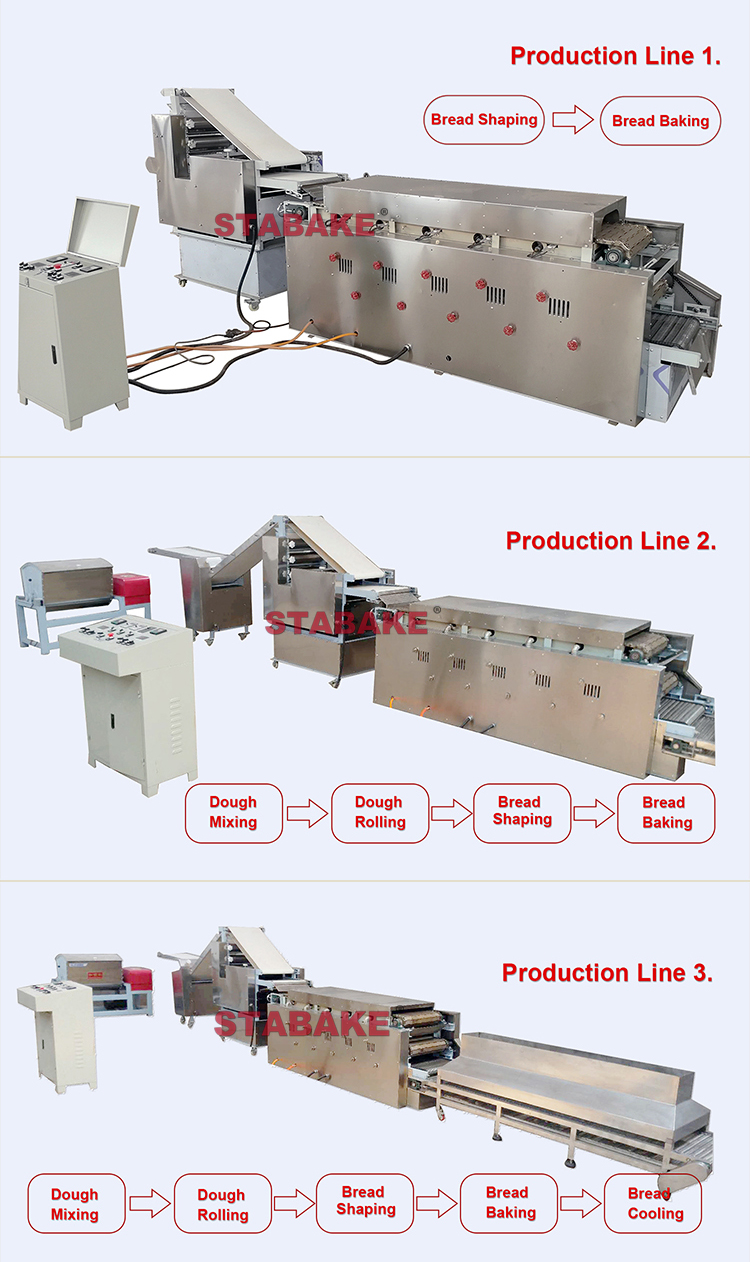

We can design and customize manufacture this production line according to different bread and different capacity requirement.
The machine widely used to make pita bread, arabic bread, lebanese bread, tortilla, chapati, roti, lavash
shawarma, egyptian bread, turkish bread etc

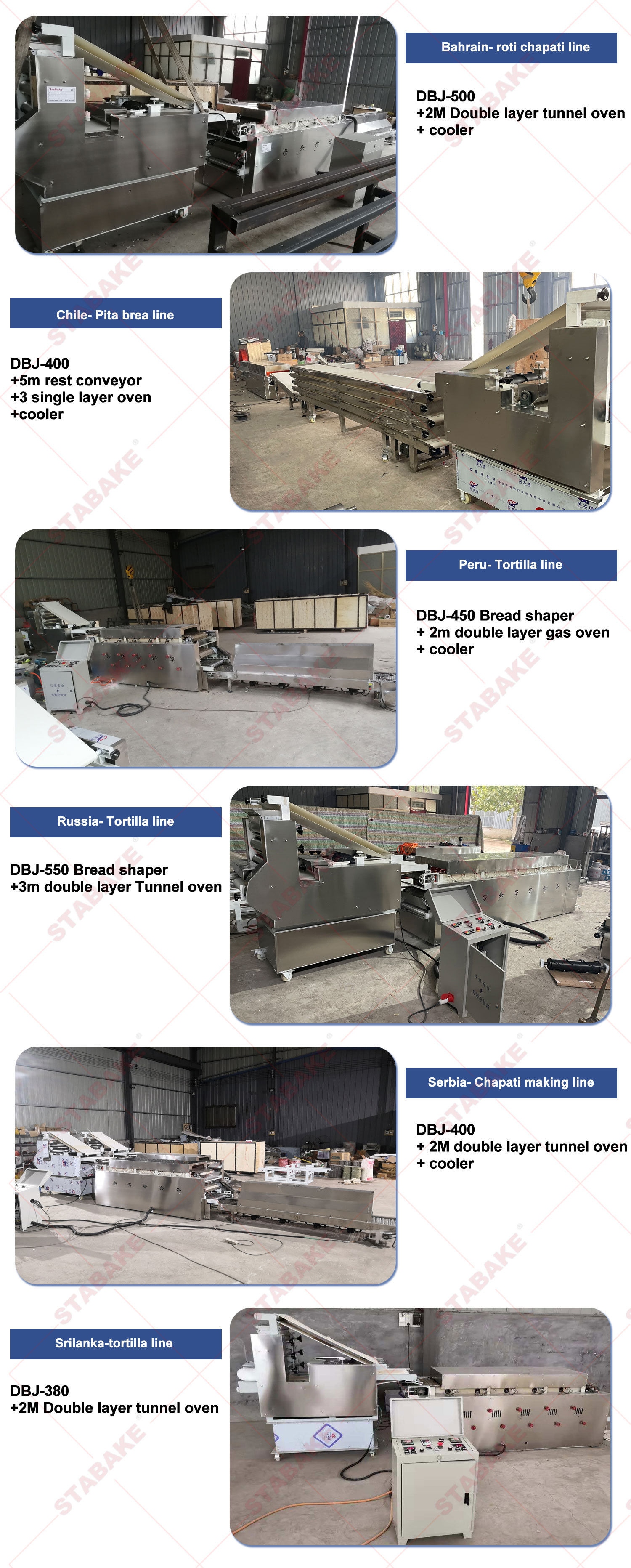

Project Case
Our advantage:
1. Various application products of tortilla, roti, chapati, lavash bread, pita bread, arabic bread, lebanese bread, Egyptian bread etc.
2. Machine Test Service provide according to customer’s formula to reduce the risk of machine working.
3. Flexible machine configuration and manufacture to solve customers’ production needs
4. Experienced serving to more than 50 companies.
