Commercial Cone Pizza Making Machine with Oven Spiral Cone Forming And Umbrella Cone Shaping Machine

Commercial Cone Pizza Making Machine with Oven

Cone Pizza Making Machine with Oven

>>> This cone pizza making machine set including Cone forming machine, Rotary oven, Display cabinet

>>> Cone size: Small: 130*60*3mm; Middle: 160*70*5mm;  Large: 170*70*5mm as option or Customized as demand.

>>> Cone shape: Normal cone, spiral cone, Conch shape cone, umbrella shape cone as customized manufacture

Features of Cone forming machine:

1) Machine made of Stainless steel materials

2) Mould with aluminium alloy materials, surface with insulation material, avoid stick cone.

3) Pizza cone mold size: 130*60*3mm; 160*70*5mm; 170*70*5mm, the size can special make depends on customer’s requirement, the max size can make 200*90*5mm.

4) It can make normal cone, spiral cone, Conch shape cone, umbrella shape cone as customized manufacture;

5) One time make 4 cones, 3 cone, 2 cone, machine is customized manufacture as customer’s requirement.

6) Temperature adjustable of the up and down cone mold according to different pizza recipe or different customer demand.

7) With auto- alarm device, full automation, intelligent, easy to operate and use.

8) It is the ideal pizza baking equipment, used in the bakery, restaurant, ding-hall.

Features of Rotary Oven:

1) Stainless steel materials.

2) It can bake 12 pizzas one time, baking time 2 minutes.

3) Both oven and pizza revolution.

Products sample:

Cone pizza making machine process details:

Cone forming machine

Model: PSJ-4A
Power: 3kw, 220v-110v 50hz-60hz
Machine Weight: 43kg
Dimension: 350*530*980mm
Customized Shape: normal cone or  spiral cone, or umbrella shape
Customized Cone size：130*60*3mm  or 160*70*5mm; or 170*70*5mm or customized; (machine price is different for different cone size.)
Packing size/ weight: 620*430*1050mm /55kg

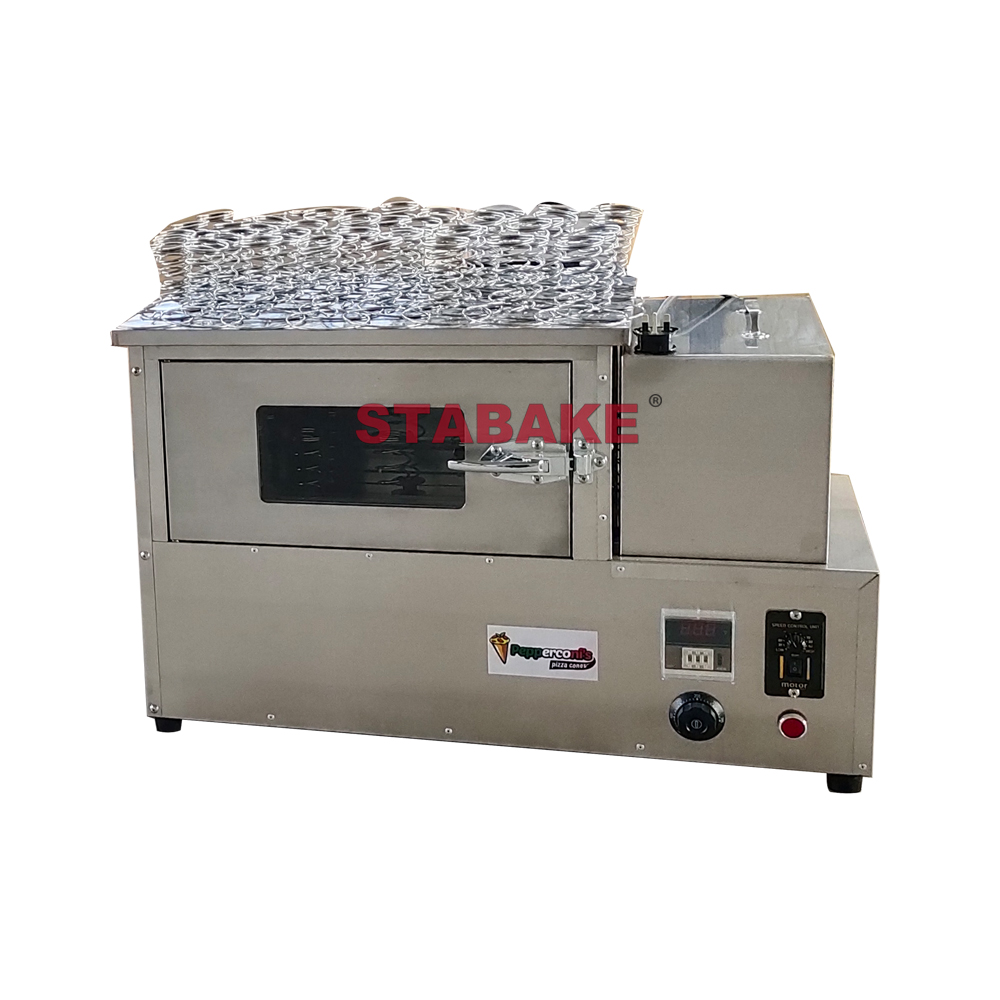

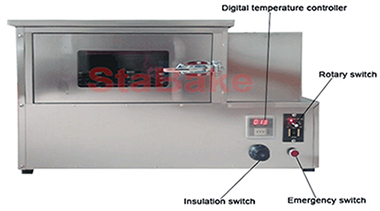

Rotary Oven

Model: KX-12A
Voltage: 220v-110v 50hz-60hz

Power: 2kw
Weight: 41kg
Dimension: 830*420*500mm
Capacity: 12pcs/3mins
Packing size: 920*520*600mm
Packing Weight:53kg

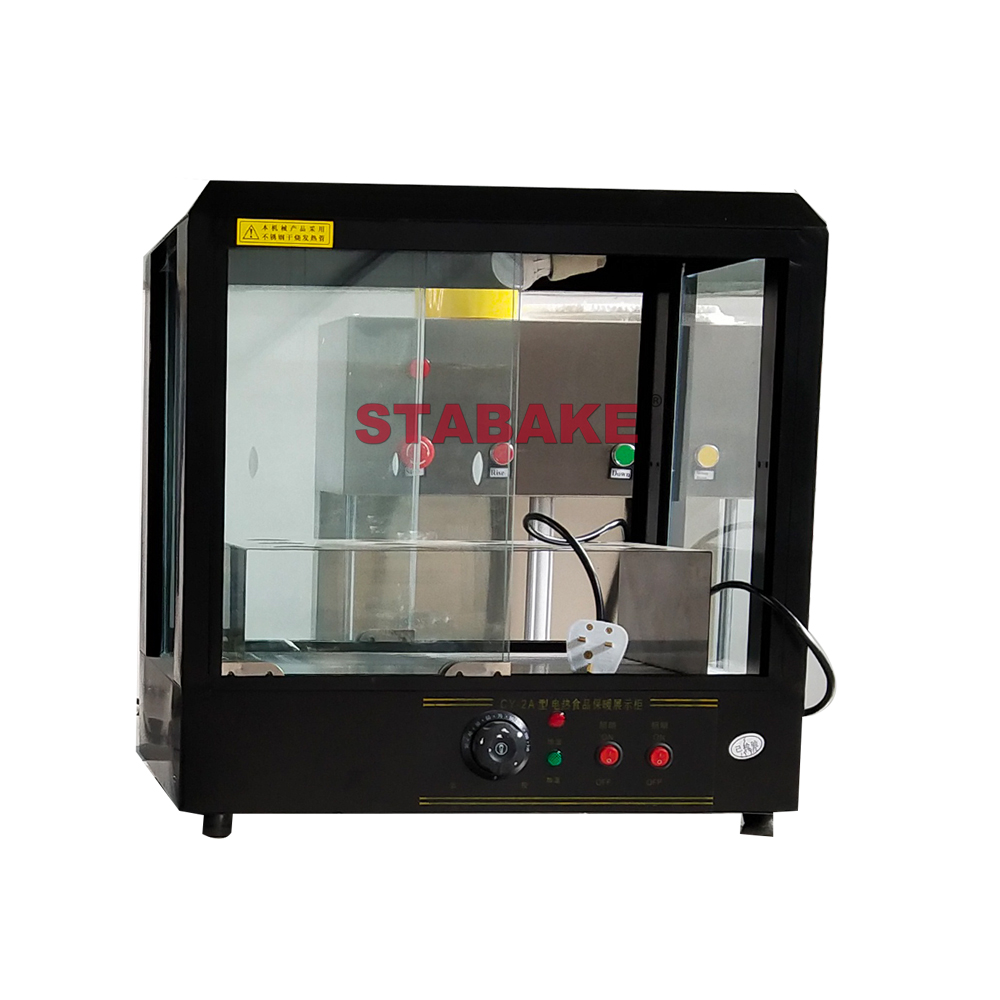

Display Box

Voltage: 220V-110V 50HZ-60HZ
Power: 0.6KW
Overall dimensions: 52*52*39CM
Net weight:17kg
Packing size:62*49*59CM
packing weight:25kg

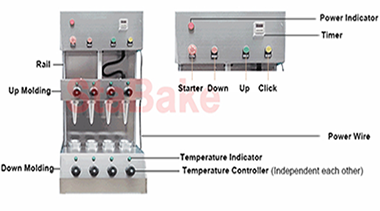

Machine details:

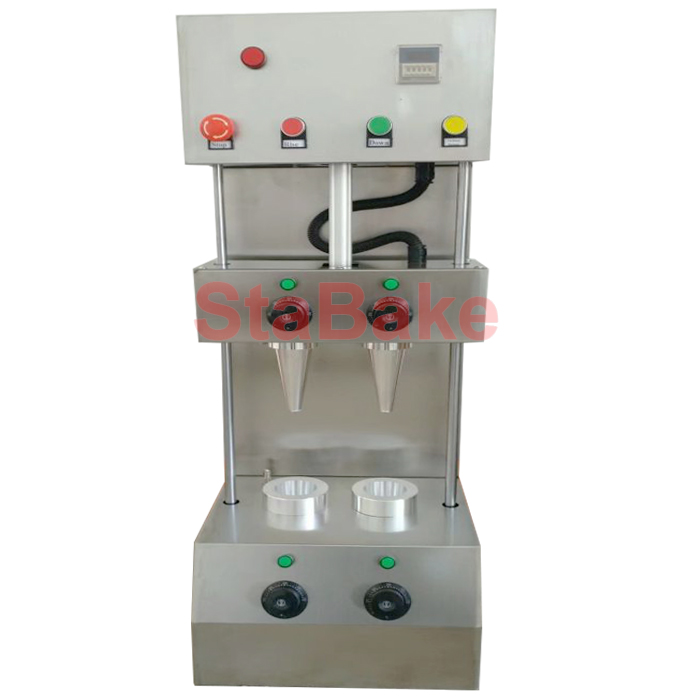

PSJ-2A

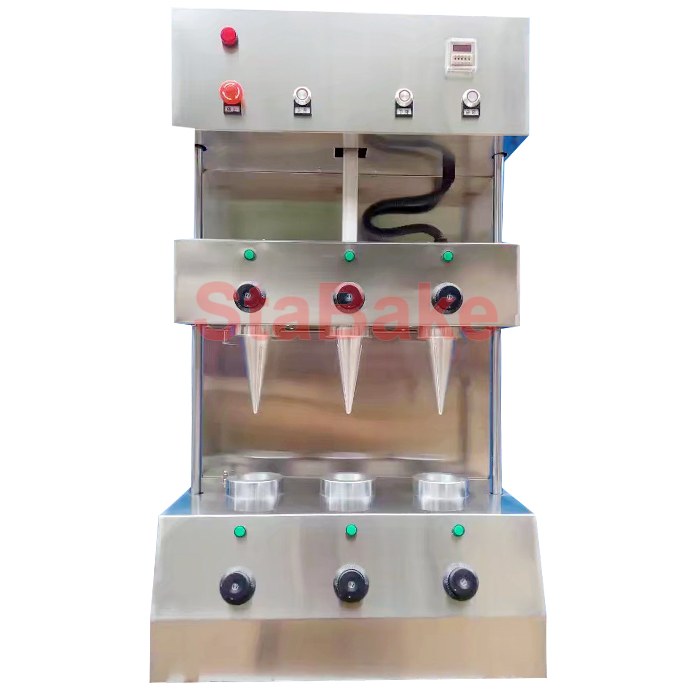

PSJ-3A

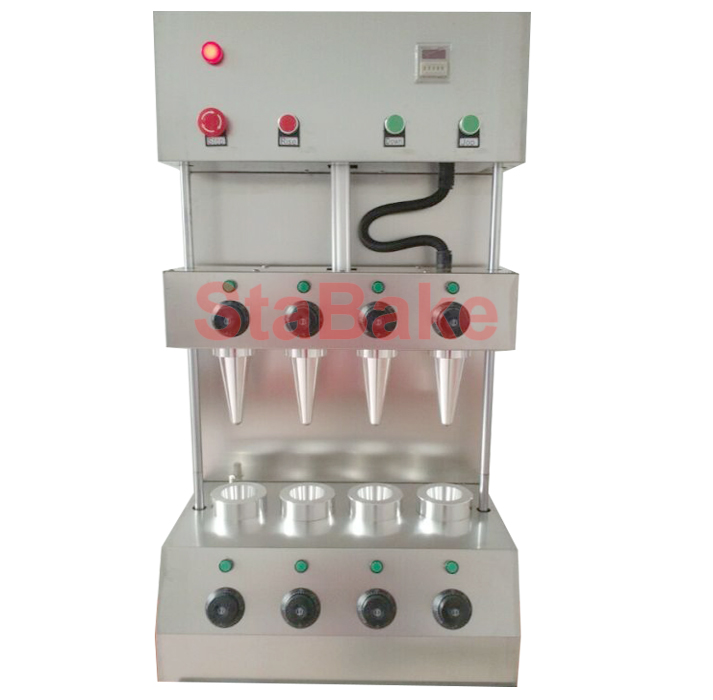

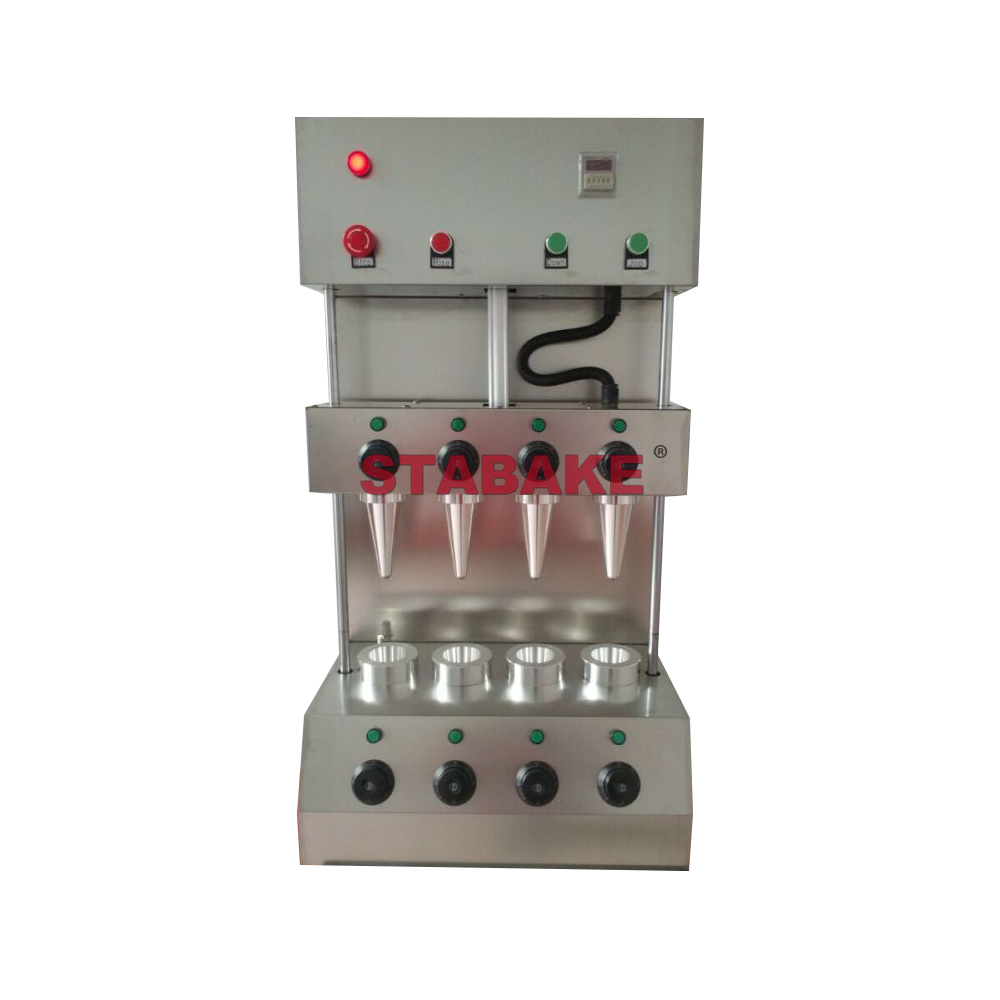

PSJ-4A

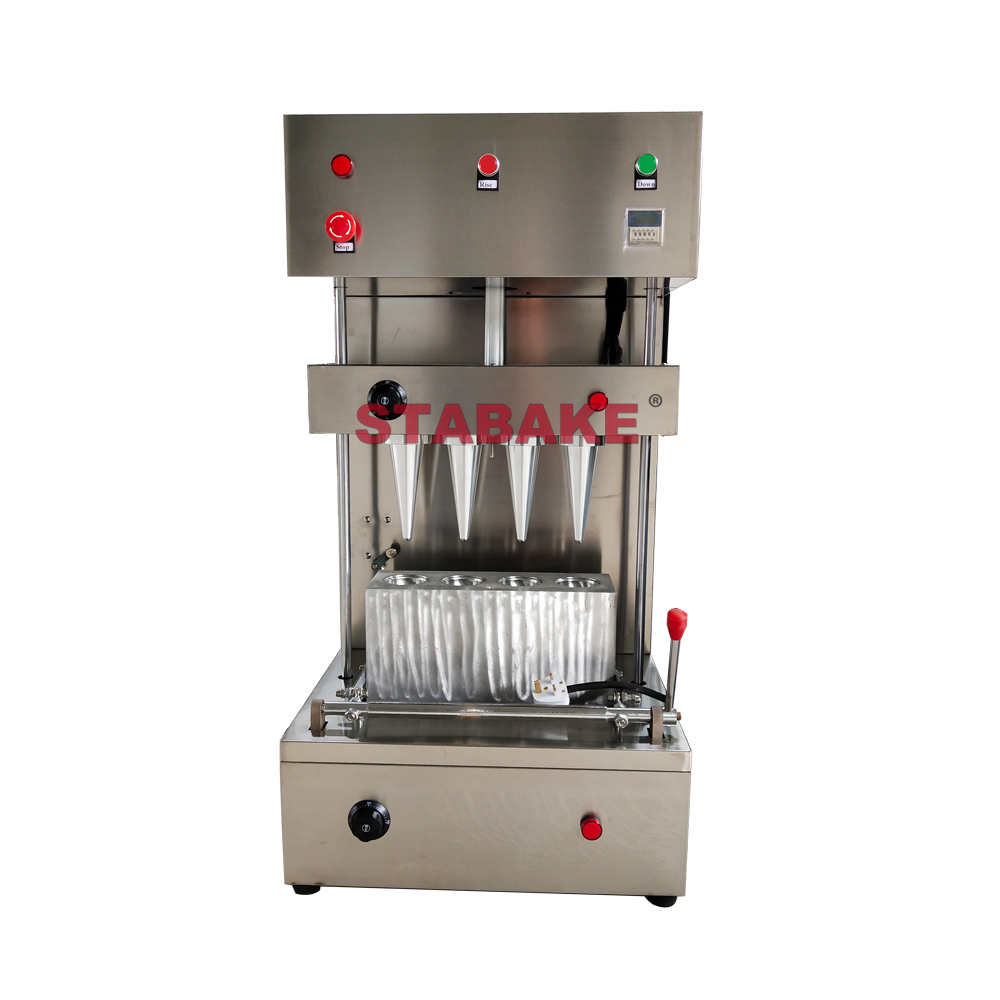

Umbrella

Different Shape Product:

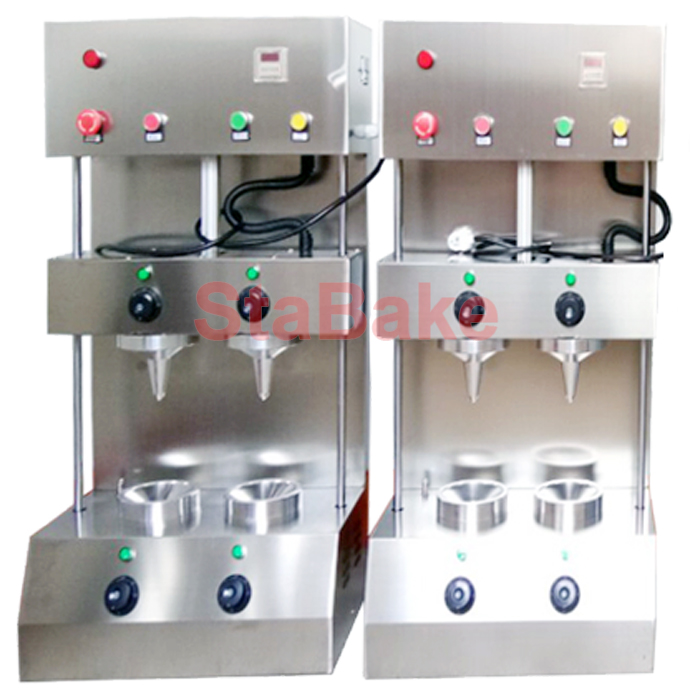

pizza cone shaper

spiral cone shaper

umbrella cone shaper

pizza cone

spiral cone

umbrella cone

Cone Pizza making process:

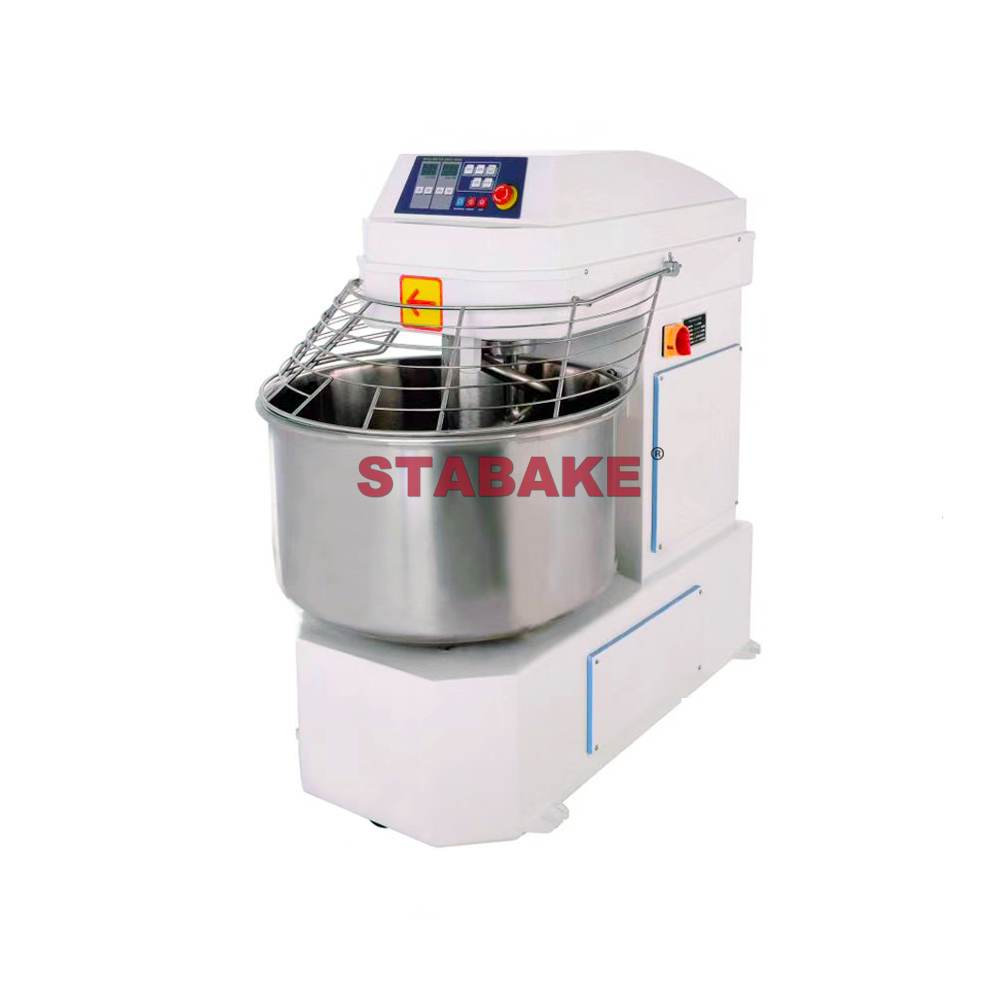

step1: Dough mixer

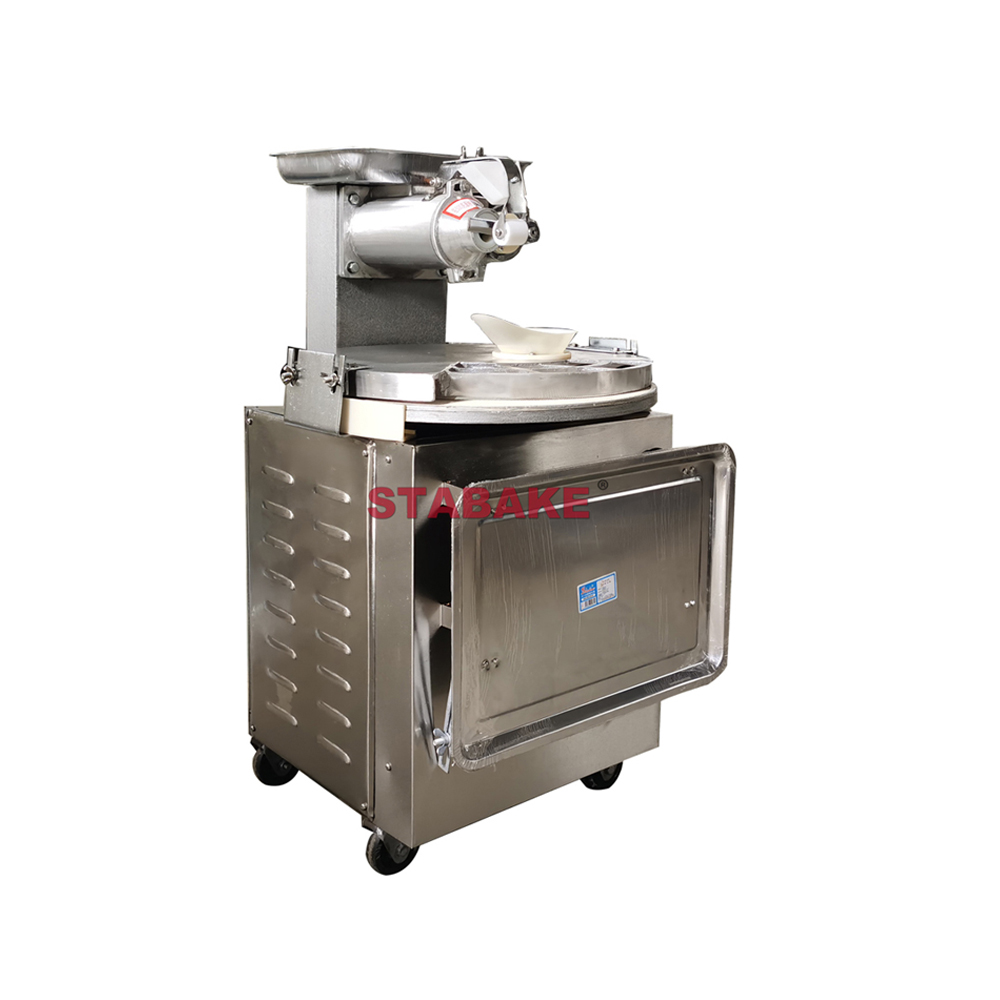

step2: Divider

step3:Cone forming

step4: Cone baking

step5: Pizza Display
