DBJ400
STABAKE
84381000.90

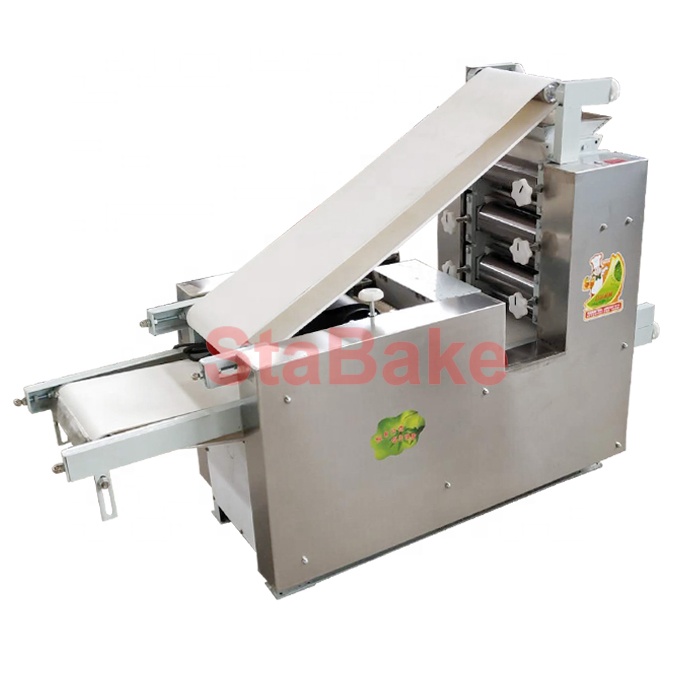

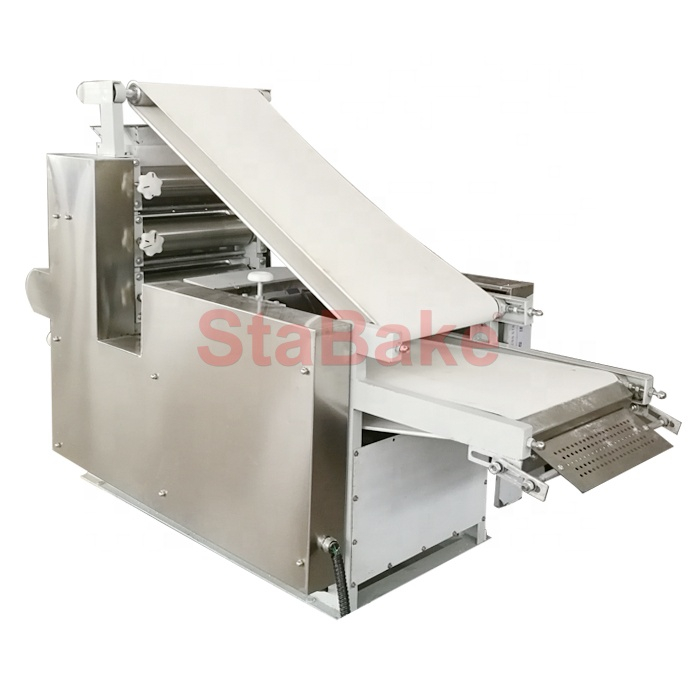

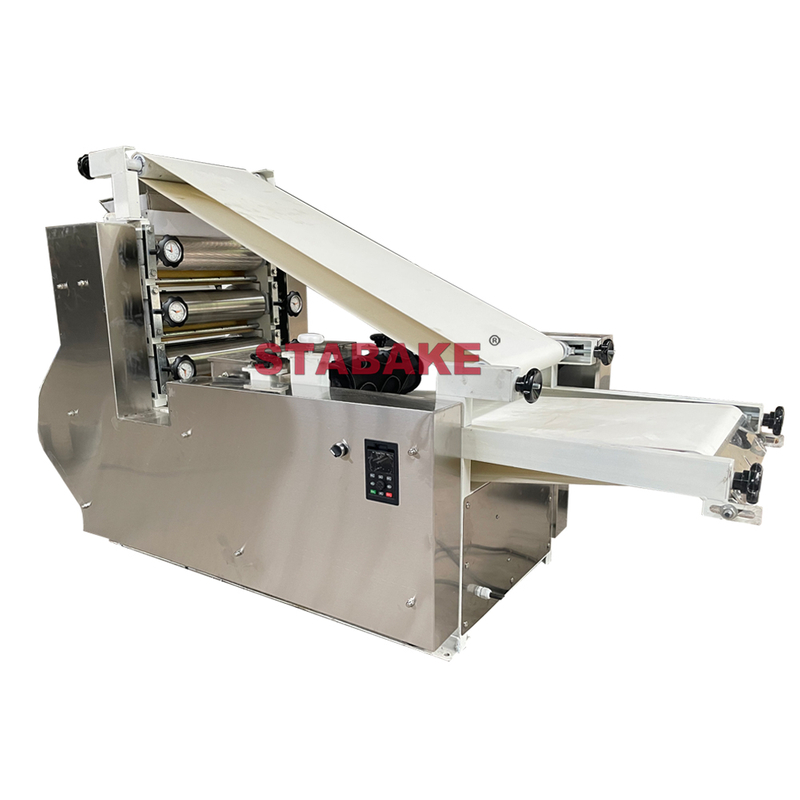

Automatic Pizza Base Forming machine
Instruction:
The pizza base forming machine is specially designed for pizza dough cutting and like products.
The machine adopts the principle of multi rolls continuous rolling and forming at one-time, uniform in size and thickness. The speed of forming and the thickness of product could be adjustable.
Features:
More than one style: The shape can be round or rectangular, its diameter or width could be adjustable by changing molds.
Higher output: The products could be made in double or triple rows, that means two or three products could be formed at the same time.
Adjustable production speed : The speed of the belt and rotation of rollers could be adjusted, to produce more products.
Various Sizes of Product: The diameter can be 50mm, 80mm, 100mm, 150mm, 200mm, 300mm or other customized.
Adjustable product thickness: The thickness is adjustable, ranging from 0.4mm- 10mm.
One-time forming: Multi rolls make the forming at one-time, to keep uniform in size and thickness.
Automatic Production: Automatic conveyor, automatic molding, automatic recycle the dough sheet.
Technical Parameter:
Model | Press Roller Width(mm) | Power(kw) | Production Speed (pcs/h) | Bread Size(mm) | Weight(kg) | Dimension(mm) |
DBJ-200 | 200 | 2.2 | 1000 | 180mm or Customized | 250 | 1200*600*1150 |
DBJ-250 | 250 | 2.2 | 1000 | 200mm or Customized | 260 | 1200*650*1150 |
DBJ-300 | 300 | 3 | 1000 | 250mm or Customized | 300 | 1700*700*1150 |
DBJ-350 | 350 | 3 | 1000 | 300mm or Customized | 330 | 1700*750*1150 |
DBJ-380 | 380 | 3 | 1000 | 320mm or Customized | 350 | 1700*780*1150 |
DBJ-400 | 400 | 3 | 1000 | 350mm or Customized | 380 | 1700*800*1150 |
DBJ-450 | 450 | 3 | 1000 | 380mm or Customized | 420 | 1700*850*1150 |
DBJ-600 | 600 | 3 | 1000 | 500mm or Customized | 480 | 1700*1000*1150 |
Different shape and size of product can be made:
The machine can matching different molds for different product of Pizza base, Dumpling wrappers, Empanada wrappers, Wonton wrappers,Tortilla, Chapati, Pita, Arabic bread, Naan, Parathaetc.
Detailed Images

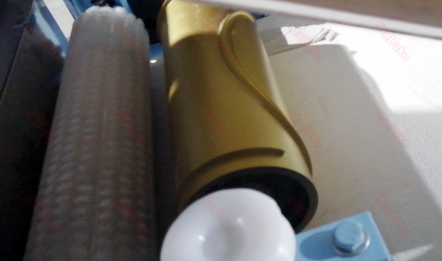

![]() Customized Molds The size and shape of the mold can be customized according your request. |

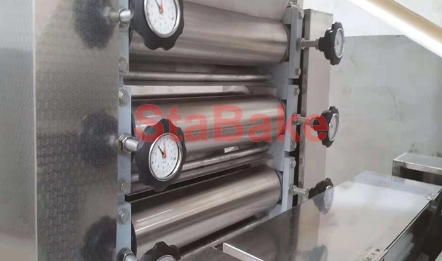

![]() Dough Press Roller Three roller for successive pressing SS304 stainless steel food grade material Healthy and Durable |

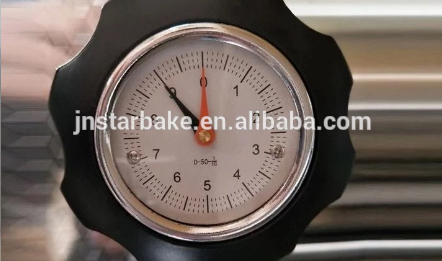

![]() Thickness Adjusting Device Exactly adjusting 0.8-10mm range of the thickness |
Packing & Delivery
Packaging and Delivery | |
Packing Size | 1920(L) * 880 (W) * 1360 (D) |
Gross Weight | 480KGS |

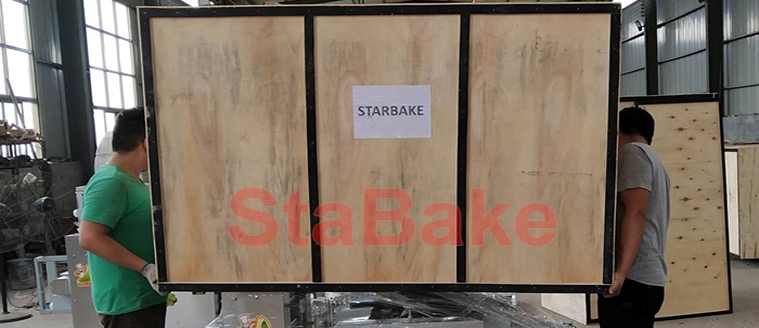

Packaging | Export Plywood wooden box |
Production Time | Within14 days after 100% Payment |
Shipping Modes | By Ocean, Air, or Express delivery to port or to door available |
Shipping Date | By Oceam about 14-40 days. By Air about 4-7 days. |
Company Profile
Our Service and Strength
Pre-sales service:
♦ Inquiry and consulting support. ensure each inquiry quick response competitive offer within 24 hour.
♦ Project Design. Assist you to choose equipment, design project flow chart according to the actual production environment and production requirements.
♦ Sample testing support in our factory. And view our factory.
♦ Full document. all necessary document will be provide.
Service in ordering:.
♦ Provide machine’s details and video to help you use the machine more better
♦ Installation Training. Provide online guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
After-sale service
♦ One year warranty. Lifetime maintenance and technical support;
♦ 24 hours online for technical consulting service;
♦ Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ Oversea service. Engineers available to service overseas.
♦ Large amount of spare part in-stock ensure that your machine in service in shortest time possible.
