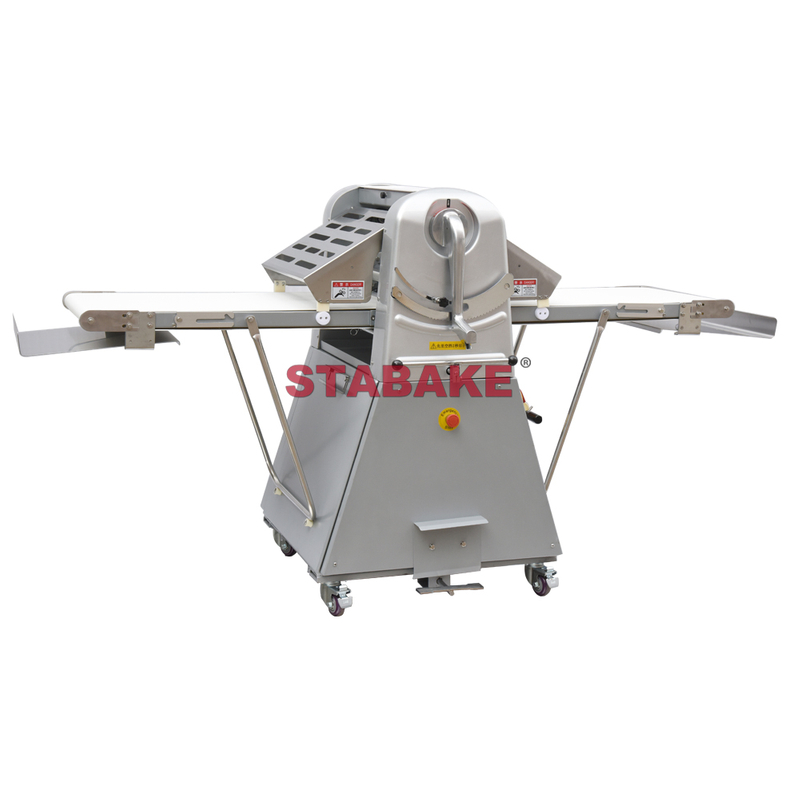

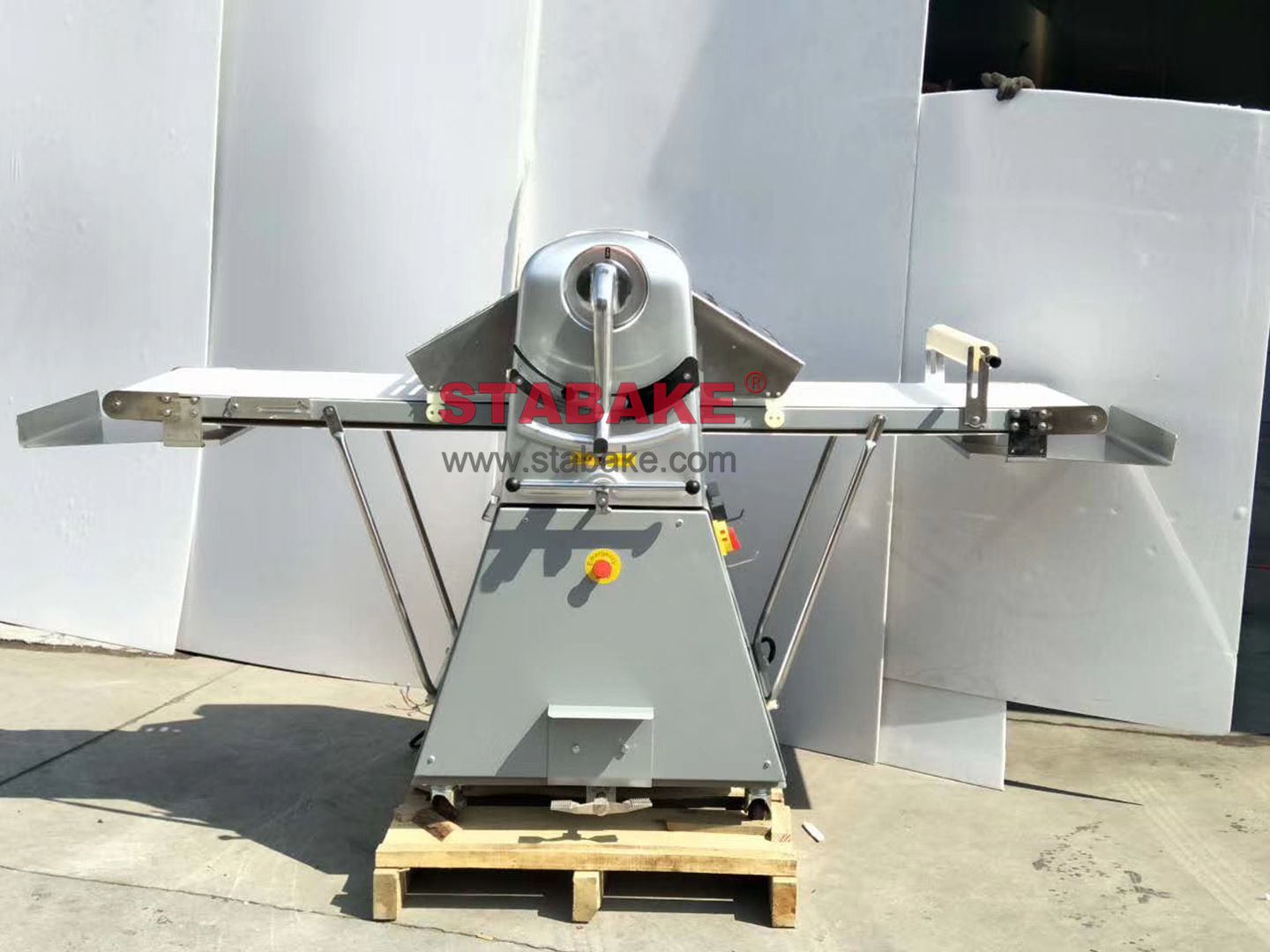

MS-520E DOUGH SHEETER MACHINE
Description:
MS-520E Dough sheeter machine is mainly used for making pastry, egg tarts, biscuits, croissant bread and other kinds of pastry food in restaurant, dining hall, cake Store, bakery factory etc. It also could used in rolling the dough in proper thinness and thickness.
In the production of sweet heart pastry or the dough, pressing is simple, convenient, rolling and stretching. The thickness of dough sheet can be adjusted at will in 1-45mm range.
Technical Parameter:
Model | MS-520E | MS-520EL | MS-630E | MS-680E |
Voltage(V/Hz) | ~220/3~380 50/60Hz | ~220/3~380 50/60Hz | ~220/3~380 50/60Hz | ~220/3~380 50/60Hz |
Power(kw) | 0.75 | 0.75 | 0.75 | 0.75 |
Roller gap Range(mm) | 1~45 | 1~45 | 1~35 | 1~35 |
Roller size (mm) | Φ73*520 | Φ73*520 | Φ73*630 | Φ73*680 |
Outline Dimension(mm) | 2550*1000*1280 | 2950*1000*1280 | 3480*1110*1280 | 3480*1610*1280 |
Working Position W/H(mm) | 2550/1280 | 2950/1280 | 3480/1280 | 3480/1280 |
Folded Position W/H(mm) | 1000/1750 | 1000/1950 | 1110/2150 | 1610/2150 |
Conveyor Belt Size(mm) | 500*1980 | 500*2400 | 610*2800 | 660*2800 |
Maximum Roll dough Weight | 5kg | 5kg | 6.5kg | 7.5kg |
N./Weight(kg) | 220 | 230 | 260 | 300 |
Feature:
1.Adopt food grade stainless steel for food touch part, beautiful appearance, firm and durable.
2.Advanced frequency conversion control system, soft starter, high -power, low noise, intelligent control, operate easily.
3.Dual speed adjustable design is also suitable for super thin dough sheet.
4.Patent disassemble mechanism for belt easily replacement.
5.Hand or Pedal double operation, operation easily, save time and effort, high efficiency.
6.Imported conveyor, anti-friction, scraper is easily disassembled.
7.The roller is made of stainless steel tube, handled by computer lathe pressed, ground and hard chrome coating, non-sticky and dough sheet thickness uniformity.

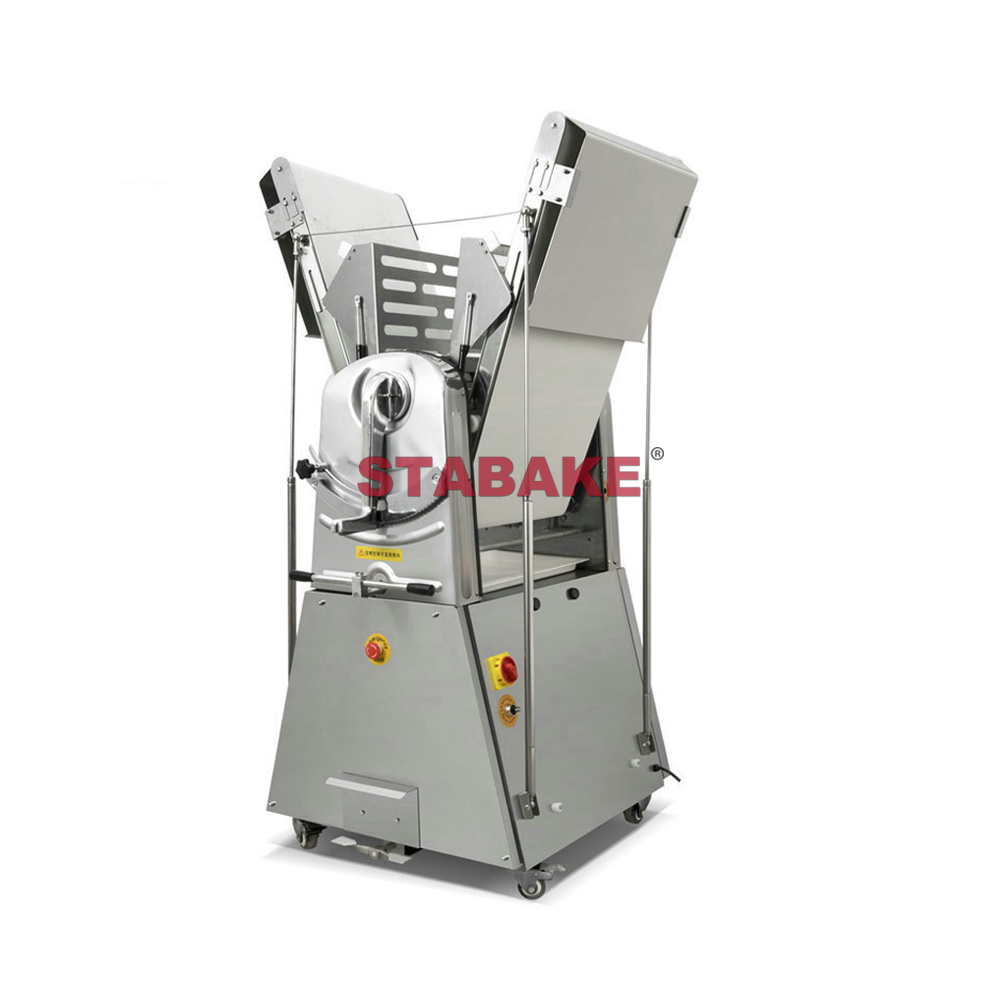

8.Operate easily and safely, high efficiency and easy to clean, could be folded, save space

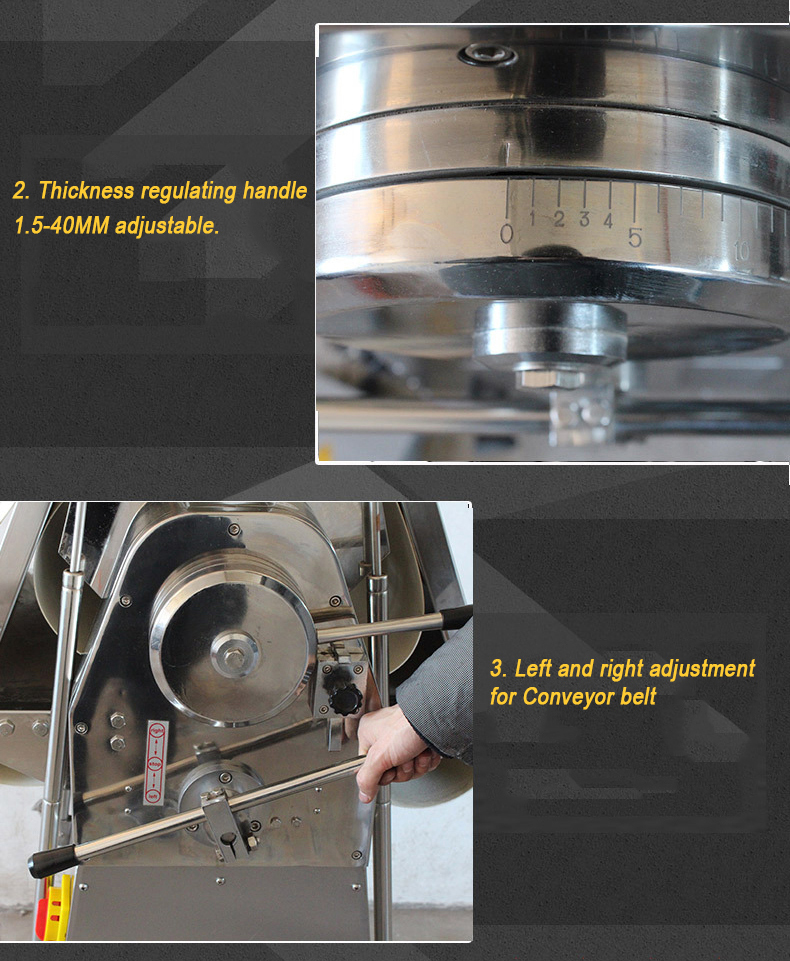

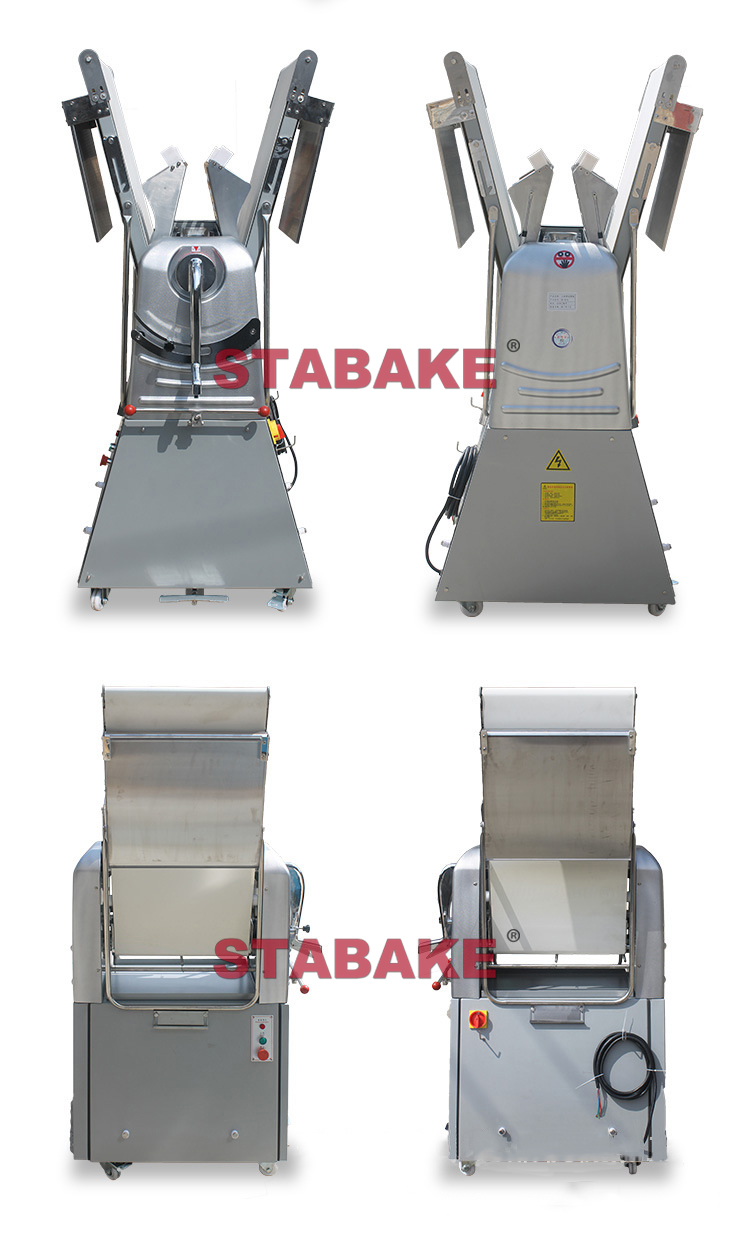

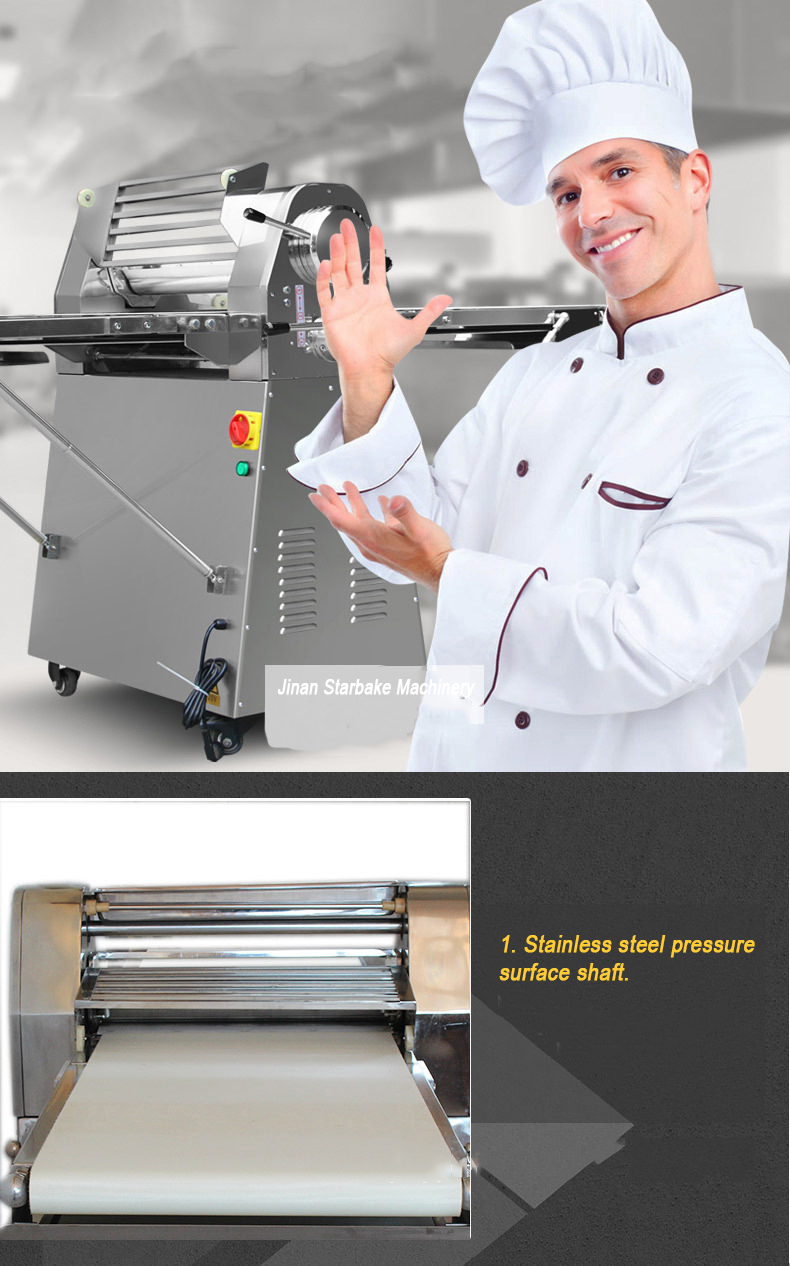

Machine Details：
Application:
