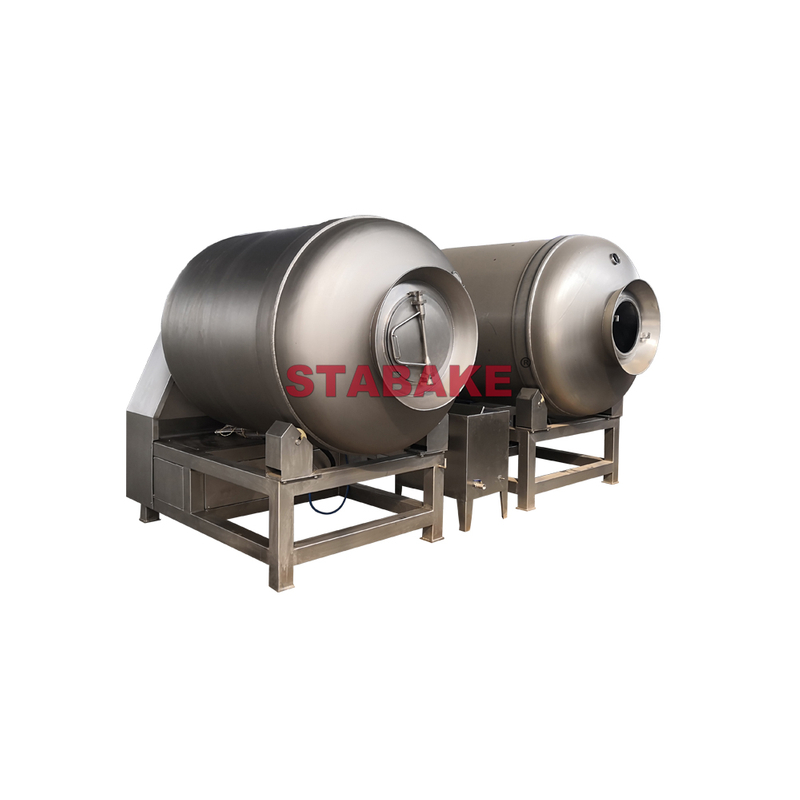

Vacuum Meat Tumbler Meat Rolling Machine

The GR Series vacuum meat tumbler uses the principle of physical impact in a vacuum state to allow meat pieces or meat fillings to be turned up and down in the drum to achieve massage and pickling. The pickling liquid is fully absorbed by the meat, which enhances the binding power and water retention of the meat, and improves the elasticity and yield of the product. The whole machine is made of 304 stainless steel, oval head, reasonable structure, large rolling space, stable operation, low noise, reliable performance, simple operation and convenient use.
Availability:
Quantity:
  • GR Series

  • STABAKE

Vacuum Meat Tumbler Meat Rolling Machine

Description:

The GR Series vacuum meat tumbler uses the principle of physical impact in a vacuum state to allow meat pieces or meat fillings to be turned up and down in the drum to achieve massage and pickling. The pickling liquid is fully absorbed by the meat, which enhances the binding power and water retention of the meat, and improves the elasticity and yield of the product. The whole machine is made of 304 stainless steel, oval head, reasonable structure, large rolling space, stable operation, low noise, reliable performance, simple operation and convenient use.


Feature:

  • The blades are arc-shaped and unique in design, making the marinade evenly distributed, not causing damage to the surface of the product, and improving the tender appearance of the product.

  • Optional variable frequency speed regulation function.

  • Meat tumbler can realize automatic discharge and automatic suction, which can reduce labor intensity and improve productivity.

  • The meat tumbler with continuous, intermittent rolling, breathing and other functions.


Specification:

Model

Capacity

Volume

Power

Rotate Speed

Dimension

Weight

GR-200

140kg/batch

200L

1.85Kw

Constant speed/ Frequency Control

1350*820*1400mm


GR-400

100kg/batch

400L

2.2Kw

Constant speed/ Frequency Control

1280*820*1380mm

270Kg

GR-600

200kg/batch

680L

2.2Kw

Constant speed/ Frequency Control

1330*1020*1573mm

330Kg

GR-800

300kg/batch

780L

2.2Kw

Constant speed/ Frequency Control

1490*1020*1573mm

400Kg

GR-1000

500kg/batch

980L

3Kw

Constant speed/ Frequency Control

1760*1020*1573mm

480Kg

GR-1400

600kg/batch

1350L

3.8Kw

Frequency Control

2000*1120*1680mm

580Kg

GR-2000

800kg/batch

1900L

4.8Kw

Frequency Control

2390*1230*1836mm

960Kg

GR-2800

1000kg/batch

2740L

7Kw

Frequency Control

2560*1430*2100

1160Kg

GR-3600

1500kg/batch

3600L

10.3Kw

Frequency Control

2830*1540*2220

1500Kg

GR-4800

2000kg/batch

4800L

11.5Kw

Frequency Control

4000*1650*1950

2100Kg

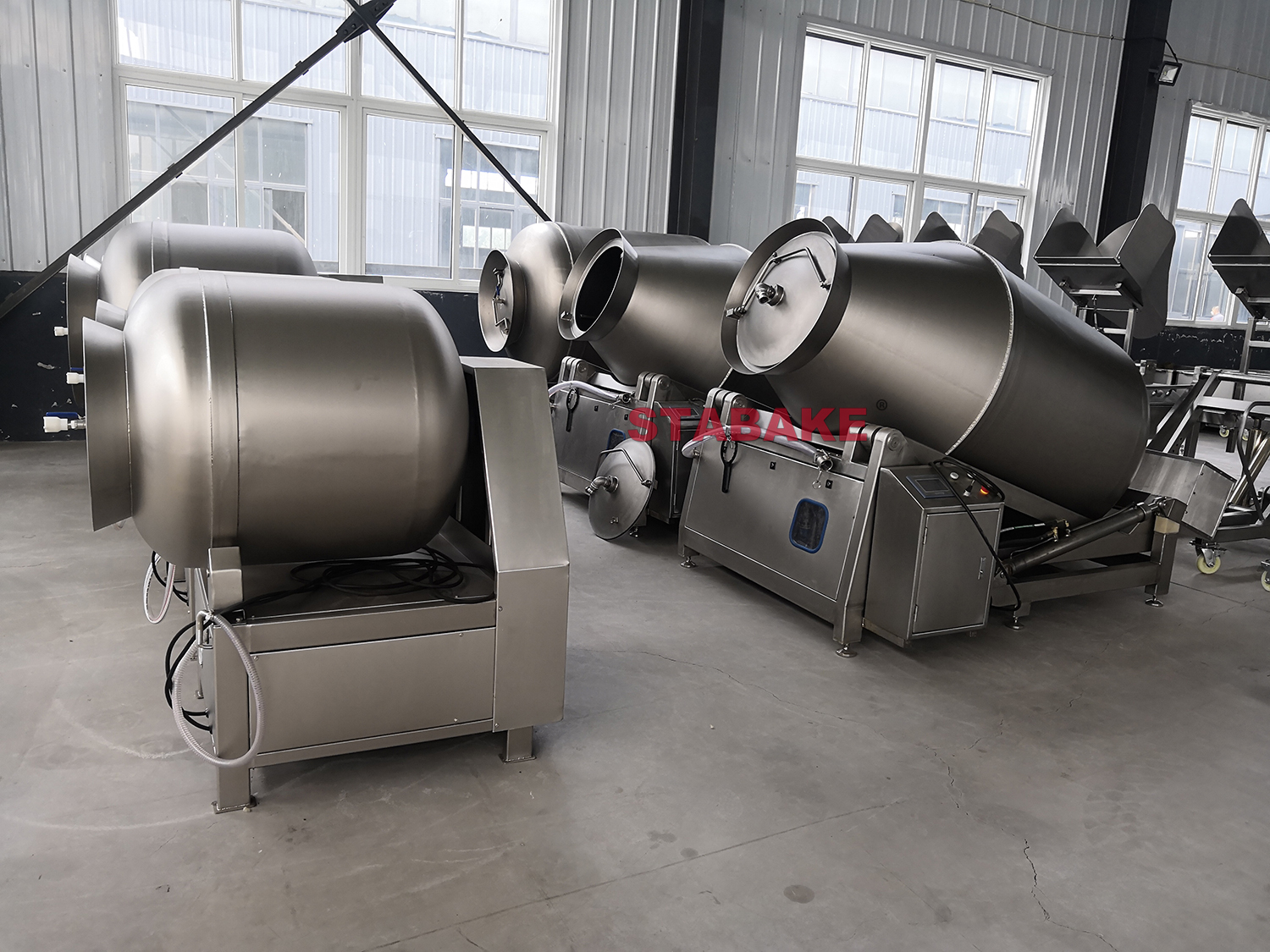

IMG_20191023_133947副本


mmexport1571810109994副本
