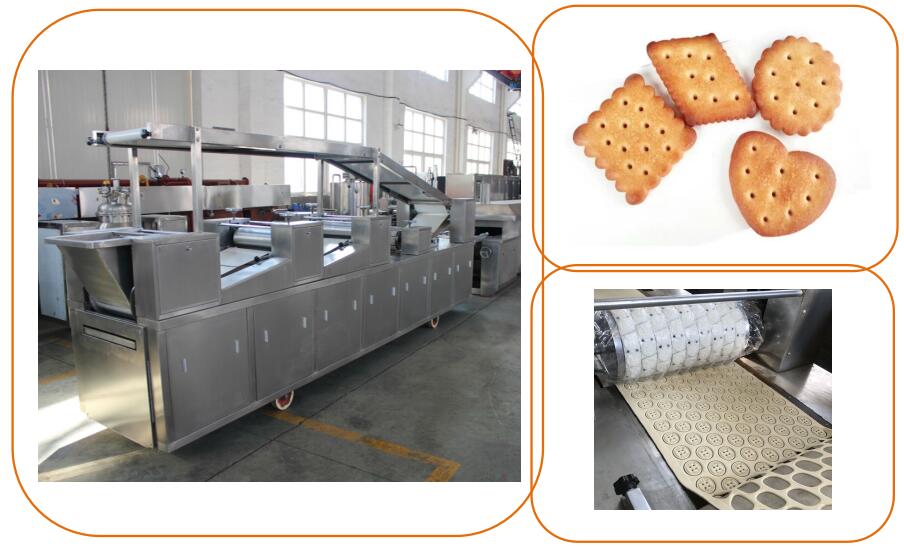

Automatic Biscuit Making Machine Tough Biscuit Production Line

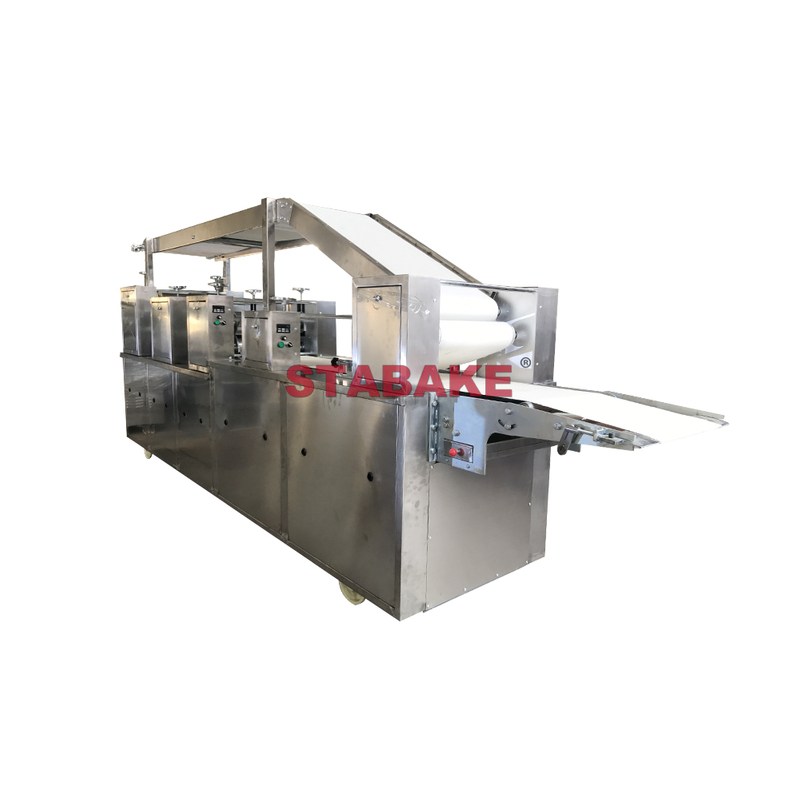

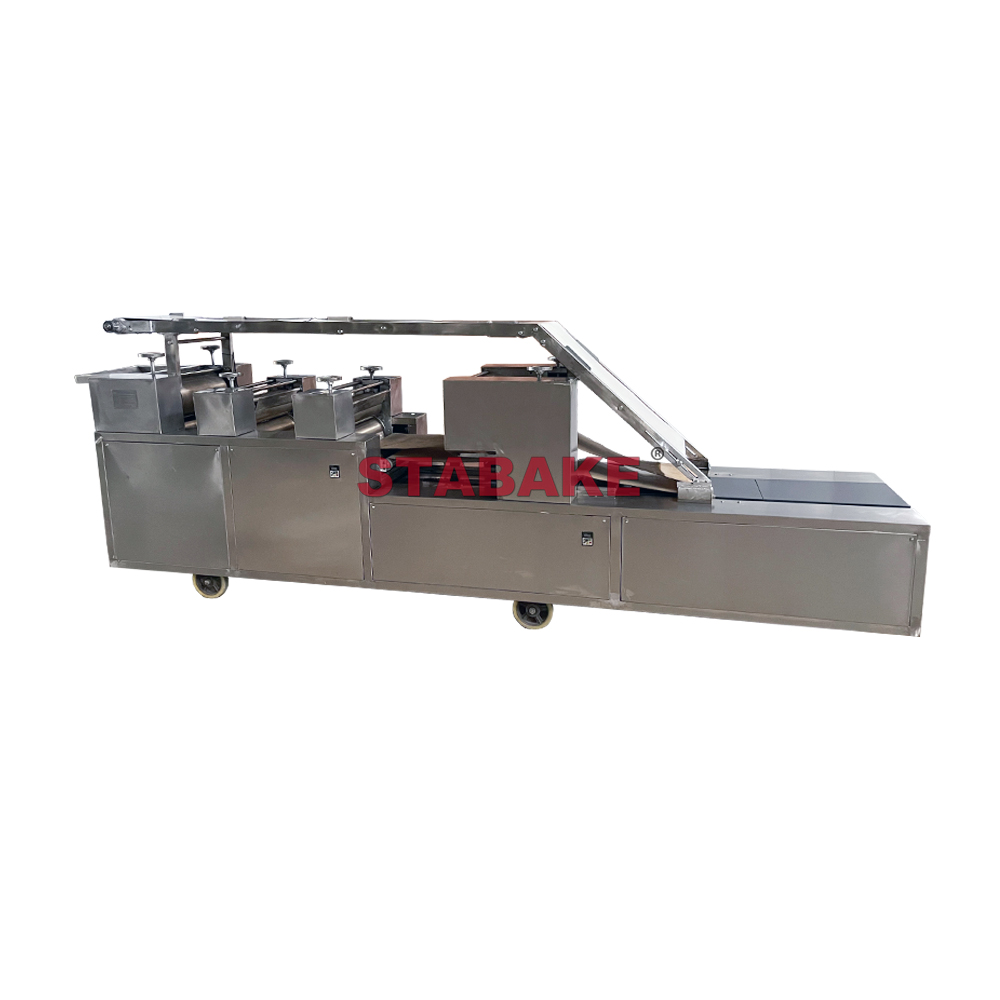

Automatic Hard Biscuit Making Machine

The BG400 tough biscuit production line, equipped with various molds, can produce tough biscuits of various specifications.

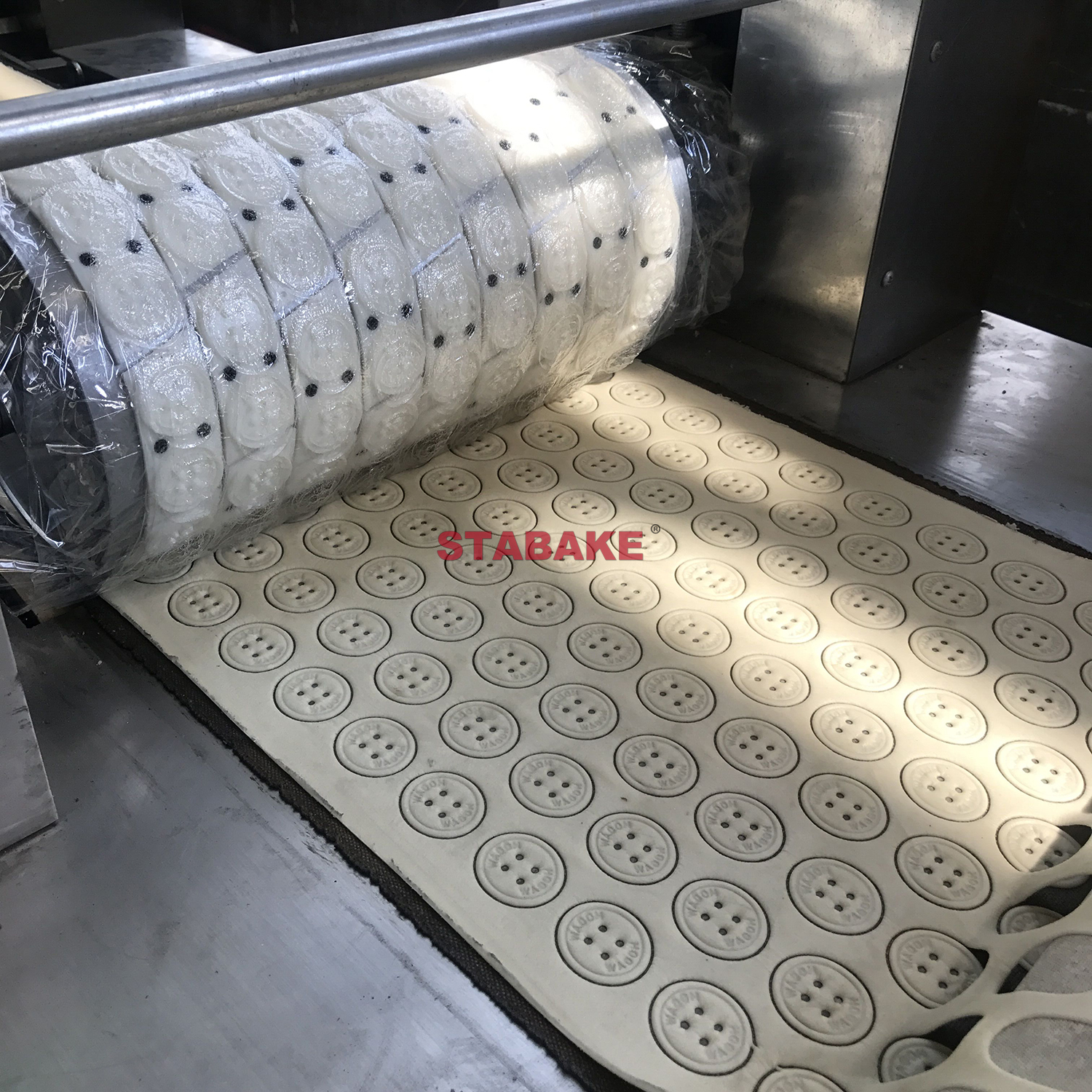

Performance: Put the mixed dough into the machine, press it through three rollers, and then cut it into biscuit parisons through one roller of the mold. The excess waste is automatically recycled, and the biscuits are synchronously transported to the baking pan through double chain conveyance. It can be used with chain tunnel oven or rotary oven for baking.

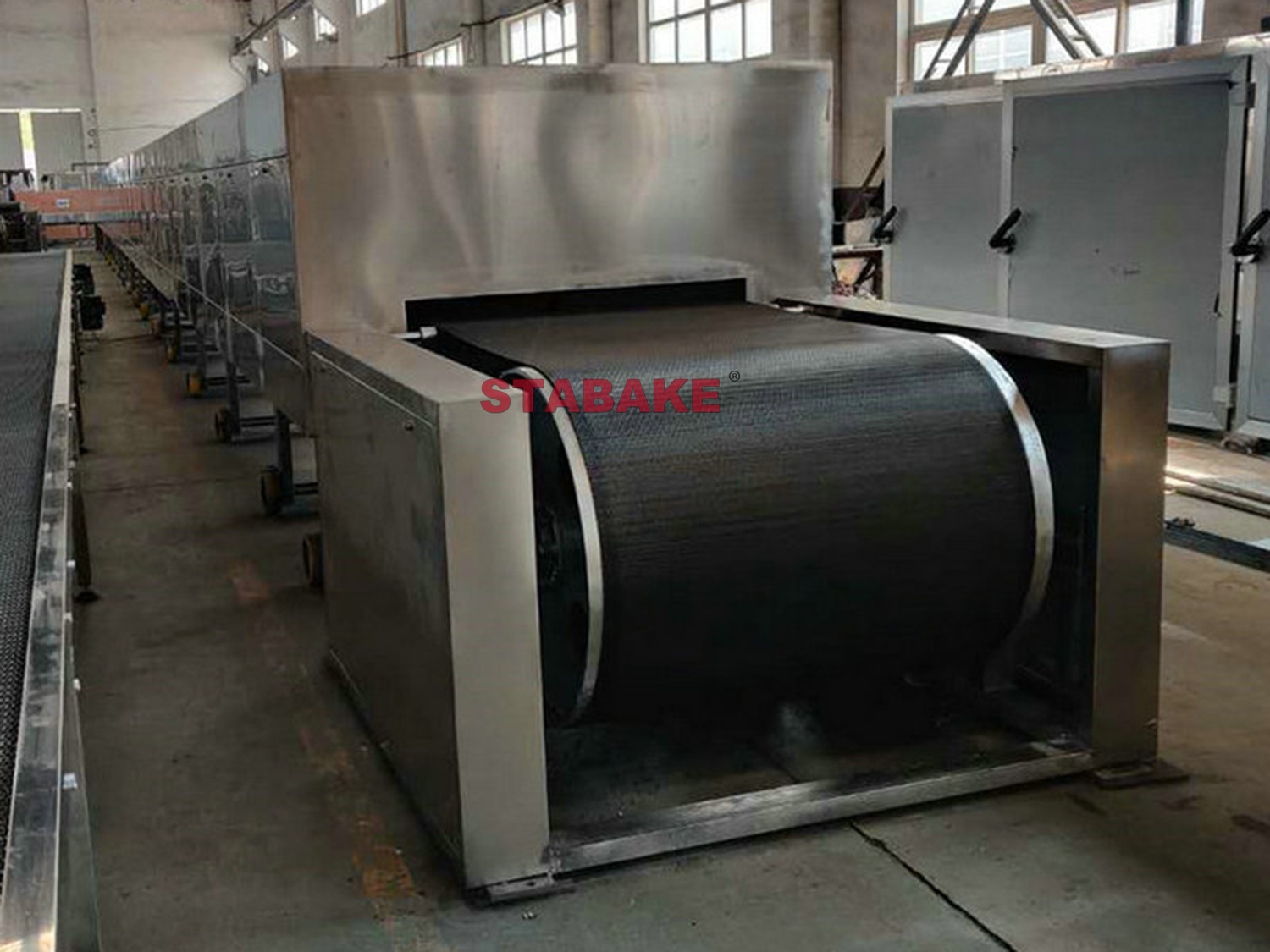

Tunnel Oven

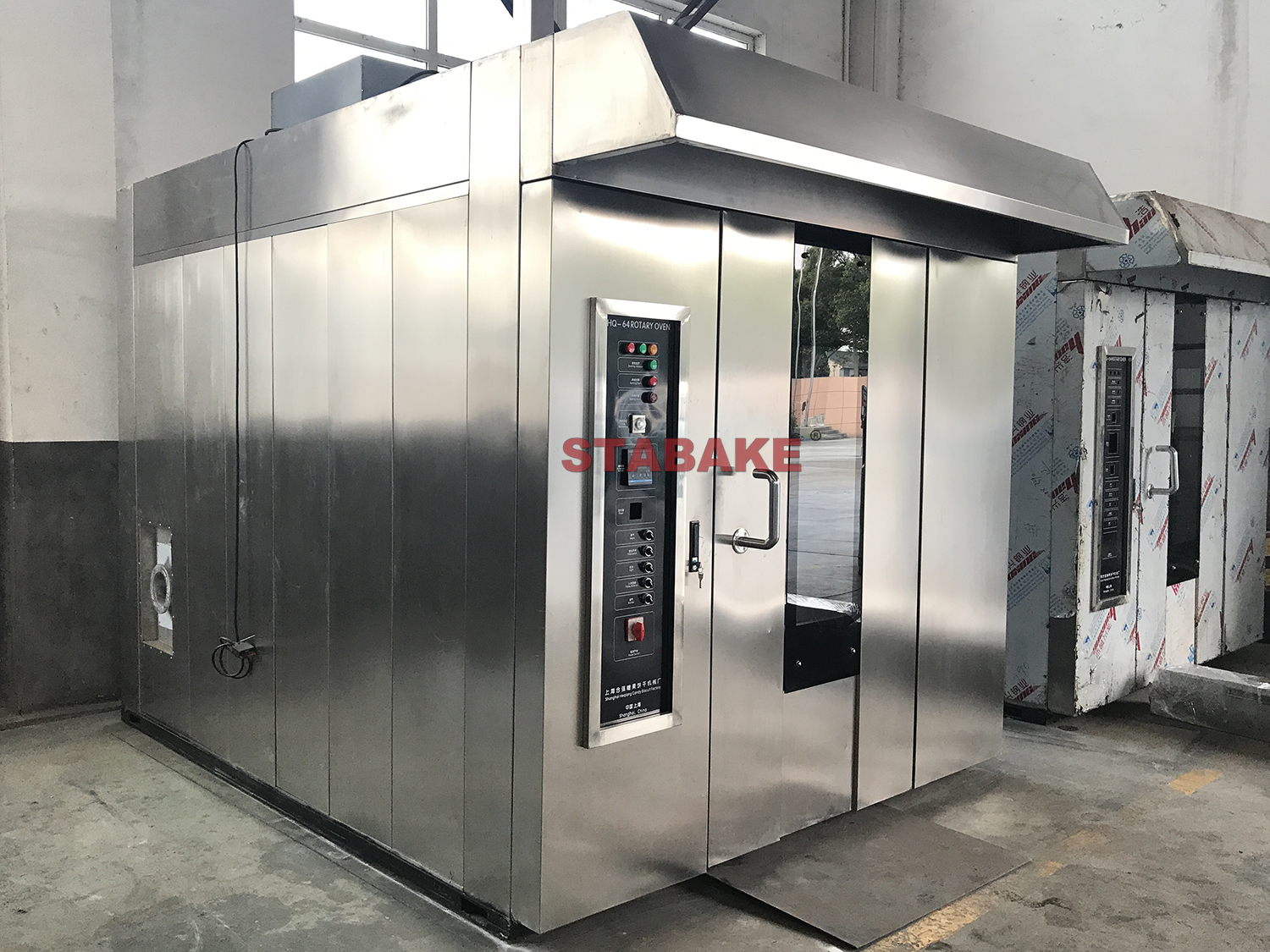

Rotary Rack Oven

Technical Parameter:

Model: BG-400

Power: 3.5kw

Voltage: 380v, 50hz, 3 phase

Dimension: 4800*1000*1750mm

Tray size: 400*600mm

Mixing time: 10-15min

Weight: 1800kg

Capacity: 80-180kg/h(according to product)

Material: Shell stainless steel, Frame A3 carbon steel

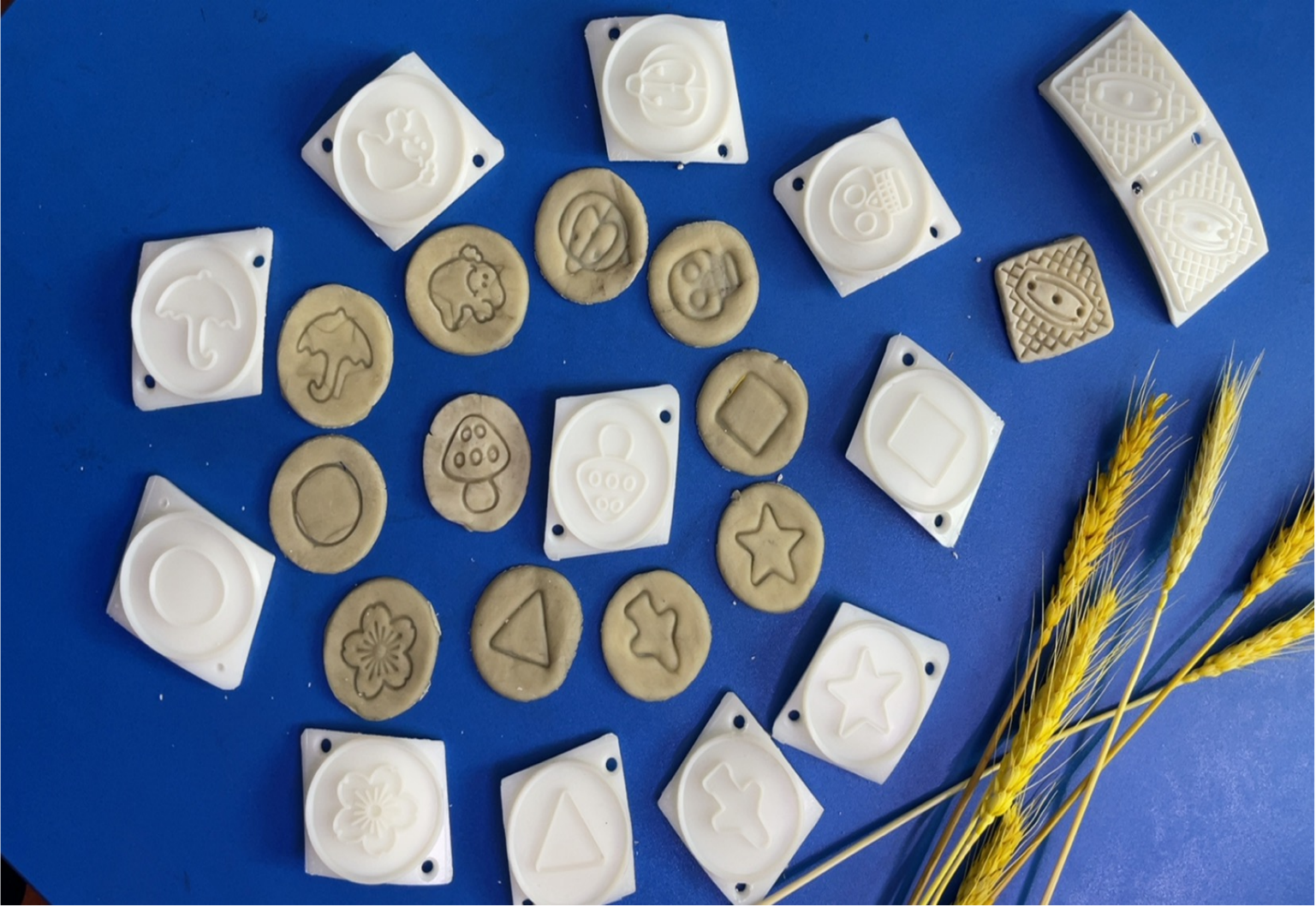

mold 1

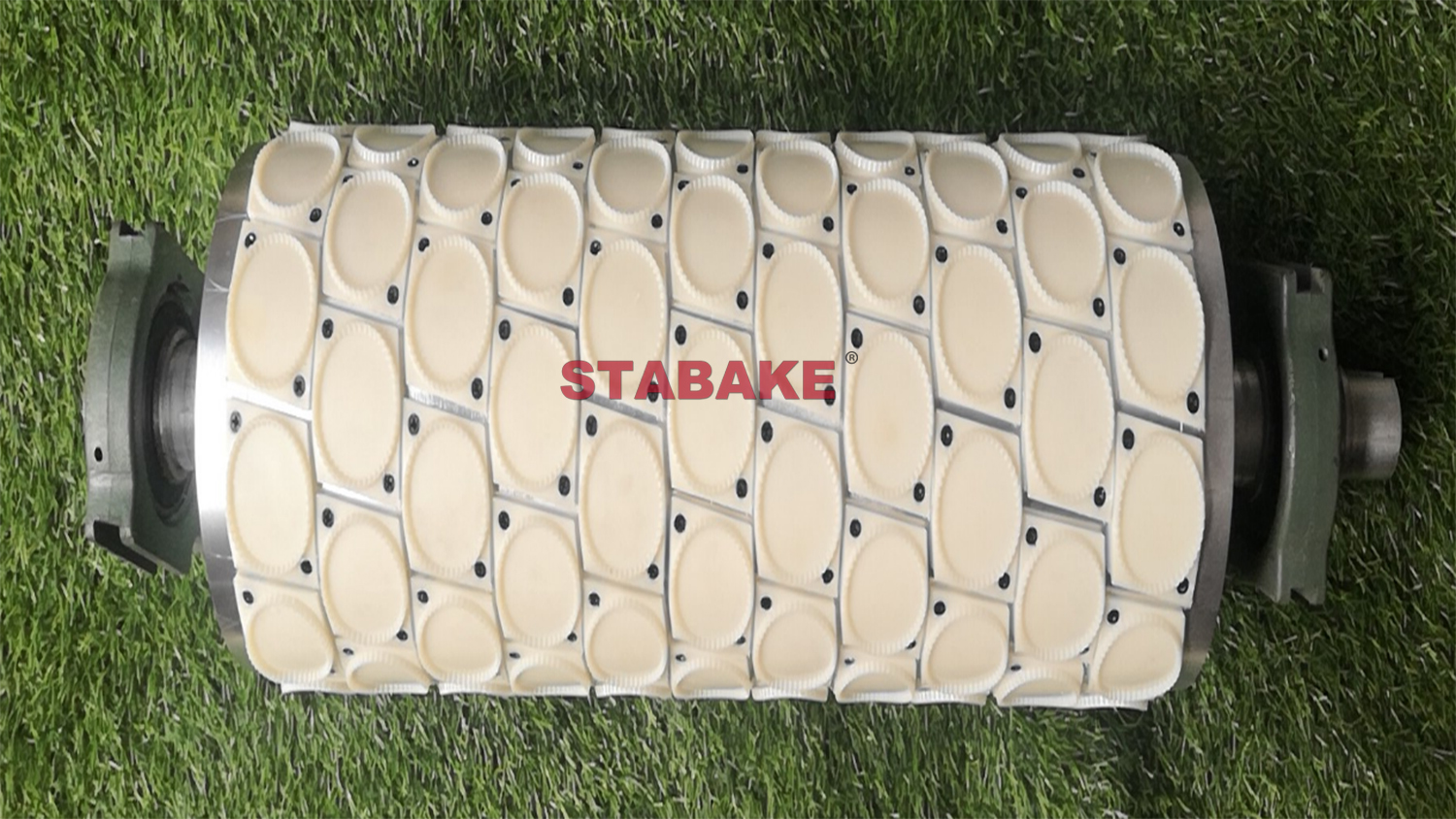

mold 2

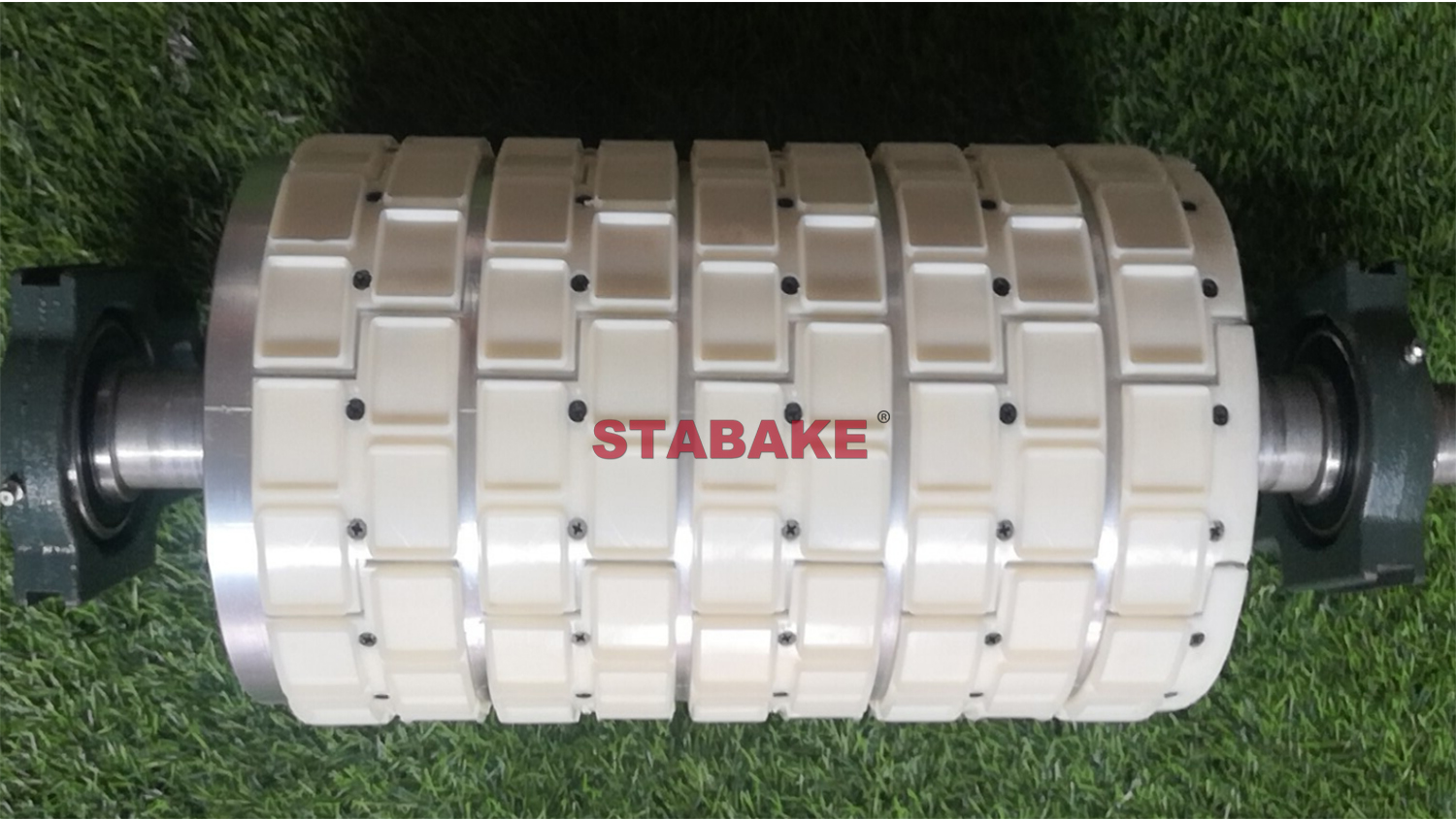

mold 3
