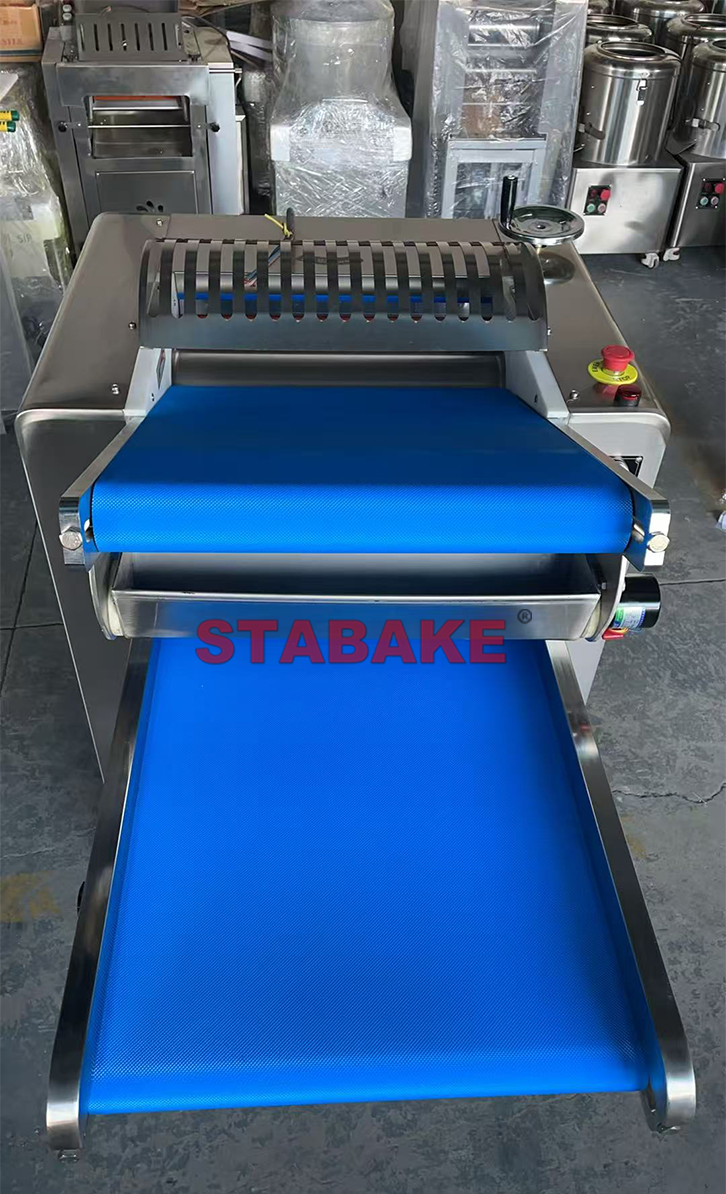

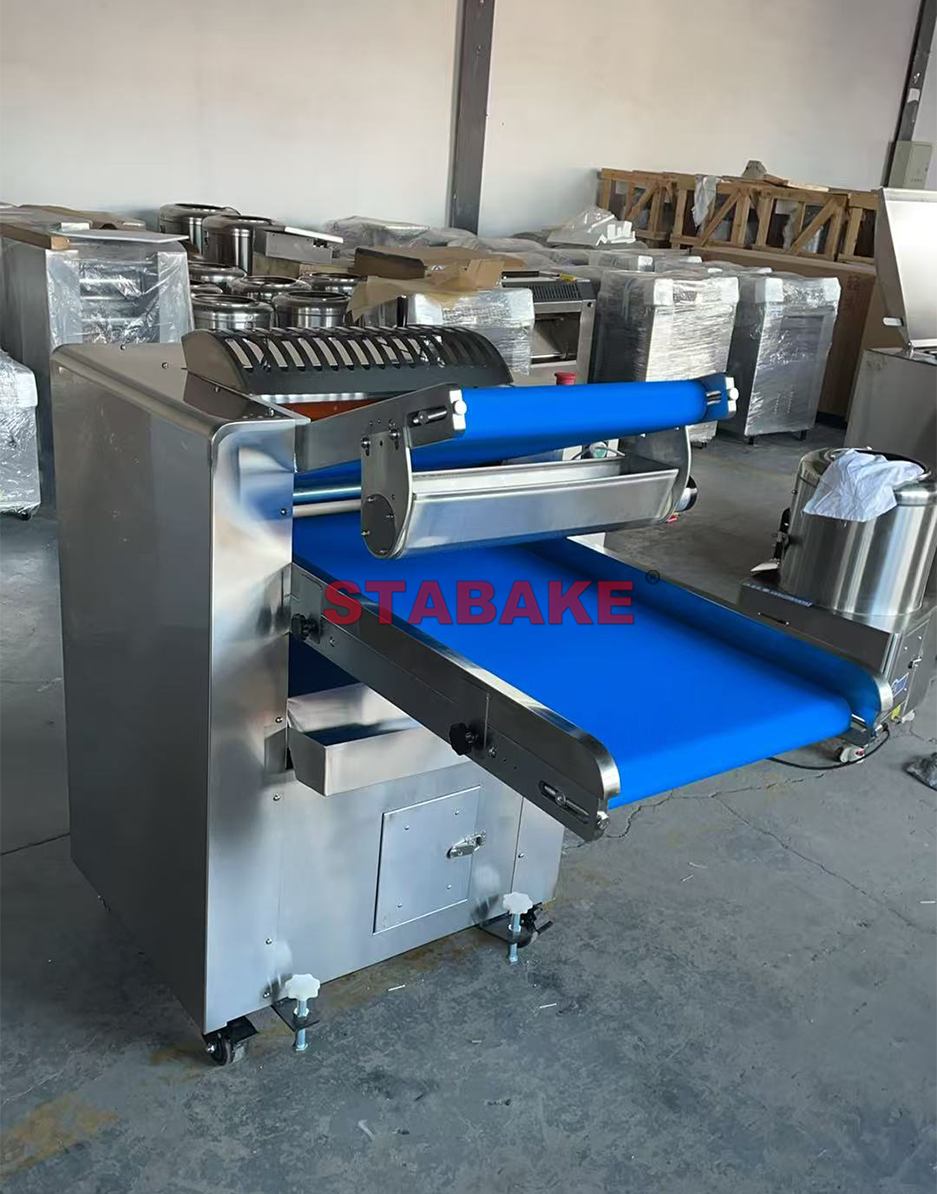

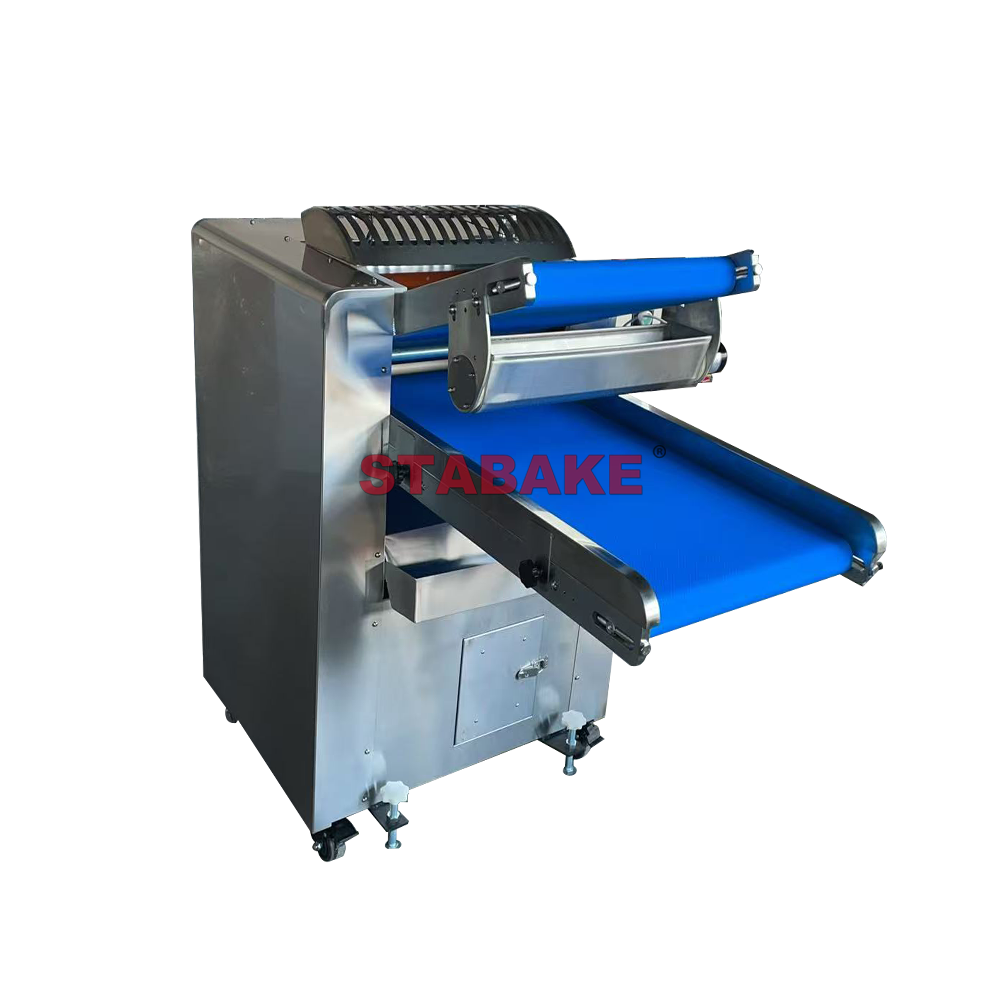

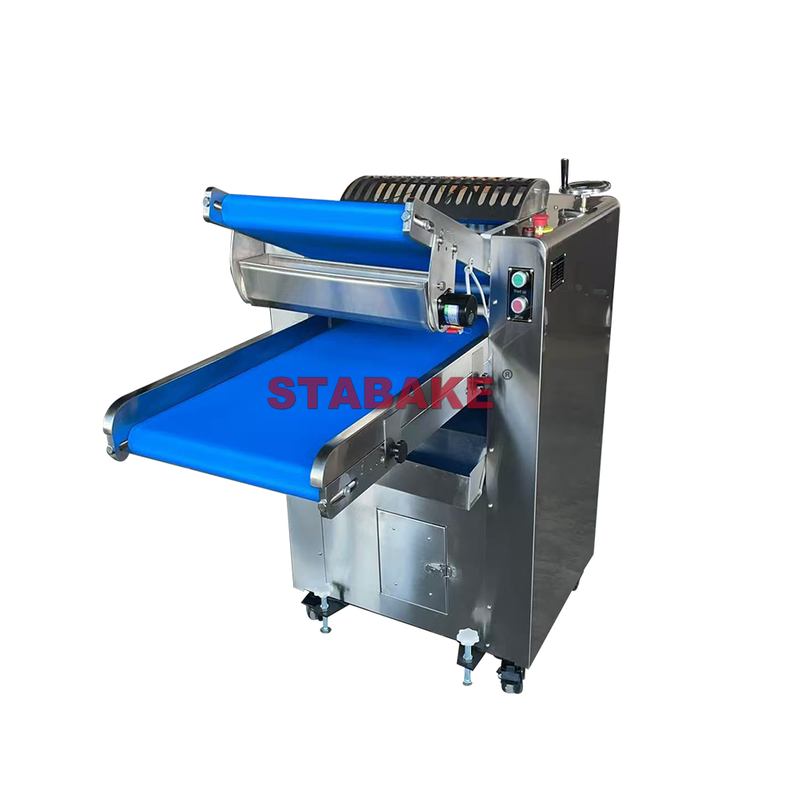

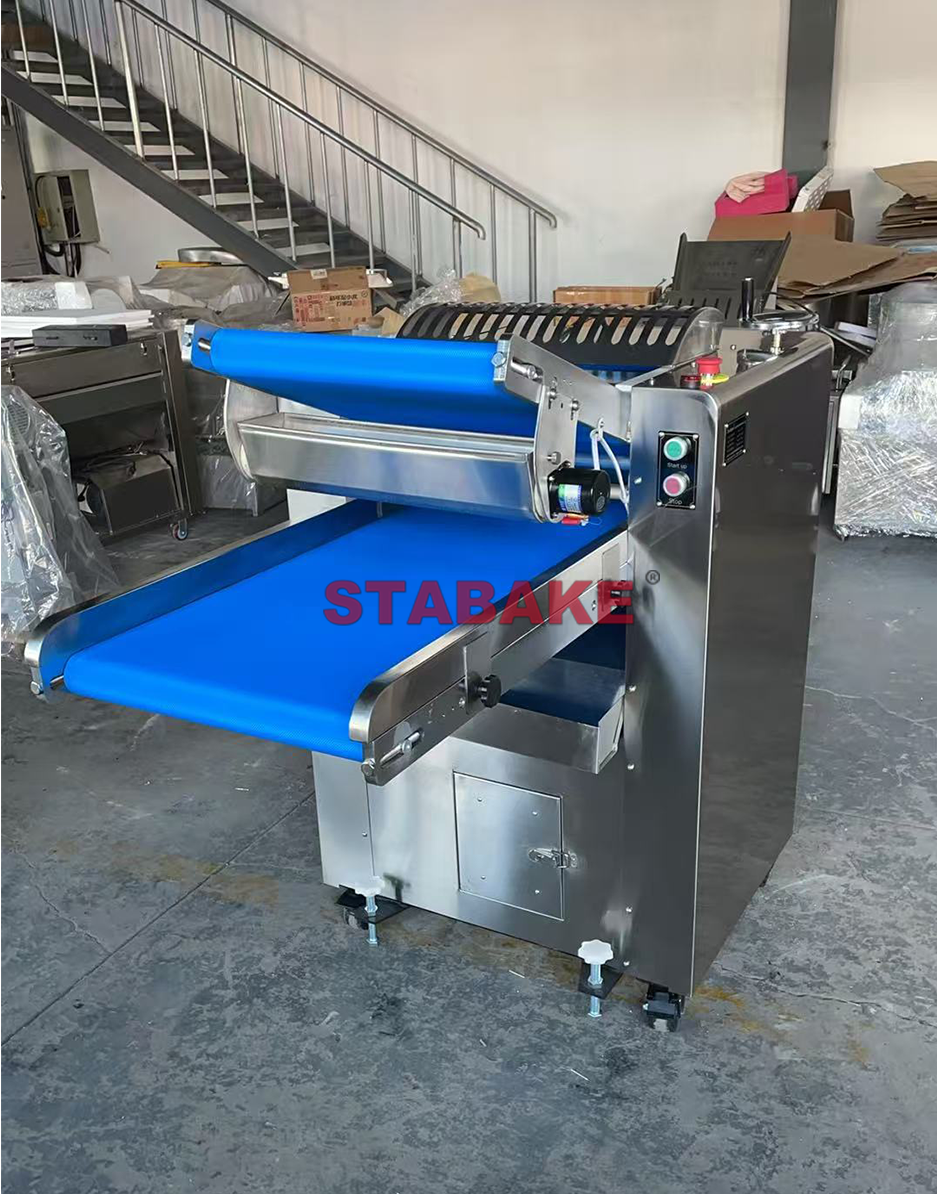

YMZD Upgrade Dough Roller Machine

The dough roller machine processes a variety of pancakes,pita bread,tortilla,noodles,and dough. Simply place the dough on the conveyor to start the automated kneading and pressing cycle.This operation reduces the direct contact between the operator and the machine,enhancing safety and reducing labor intensity.

Specification

Model

YMZD250

YMZD350

YMZD500

YMZD750

Power

Voltage

~220V/50HZ

3N~380V/50HZ

3N~380V/50HZ

Capacity

400KG/H

600KG/H

900KG/H

1200KG/H

Roller Width

<250MM

<350MM

<500MM

<750MM

Dough Thickness

1-25mm adjustable

1-25mm adjustable

8-25mm adjustable

8-25mm adjustable

Weight

200KG

250KG

285KG

350KG

Dimension

980*530*760MM

1130*610*1060MM

1300*755*1240MM

1300*970*1130MM

Customized made

Features

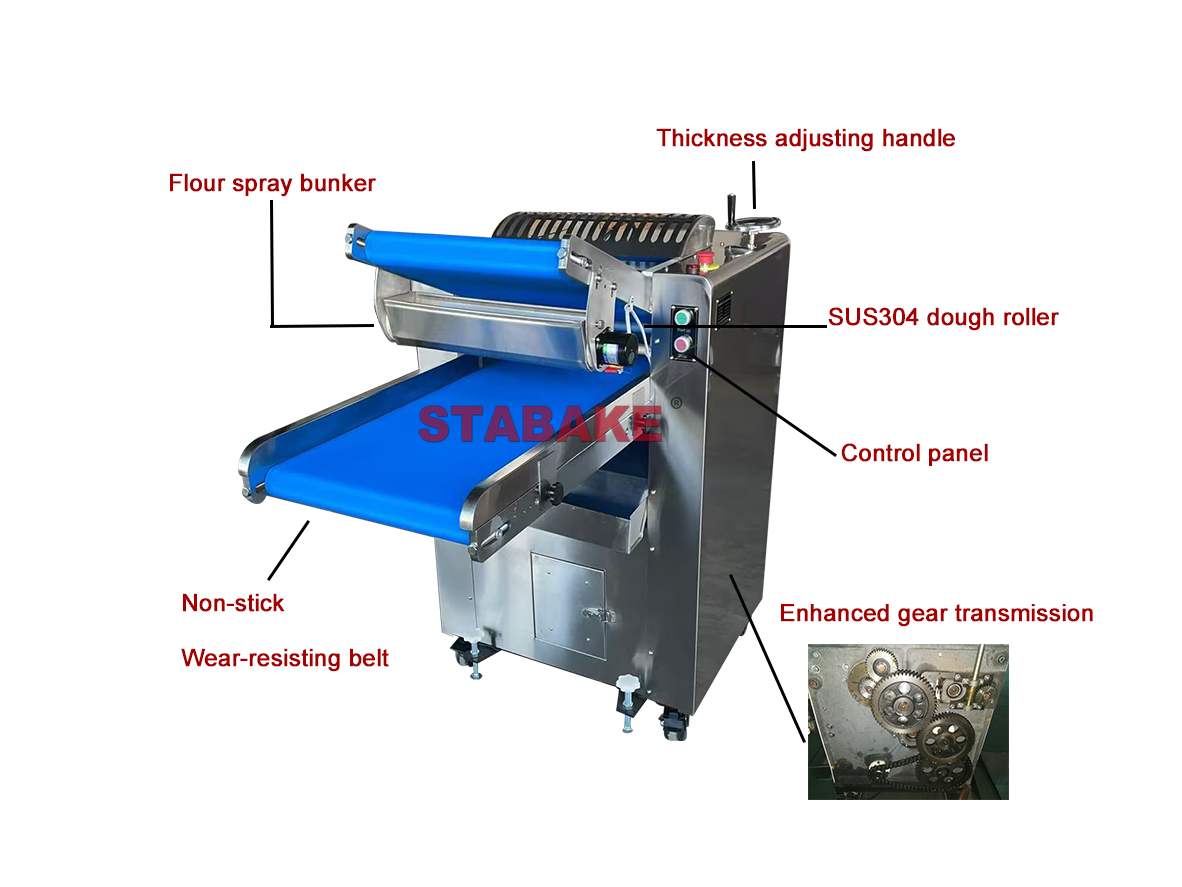

1. Reduces labor intensity with automatic conveyor belt feeding, eliminating manual handling of dough.

2. The conveyor belt has a function to prevent deviation.

3. Adjustable dough thickness from 1mm to 25mm or 8mm to 25mm.

4. Ideal for canteens, restaurants, hotels, schools, and food processing plants to produce flexible dough.The dough roller machine processes a variety of pancakes,pita bread,tortilla,noodles,and dough.

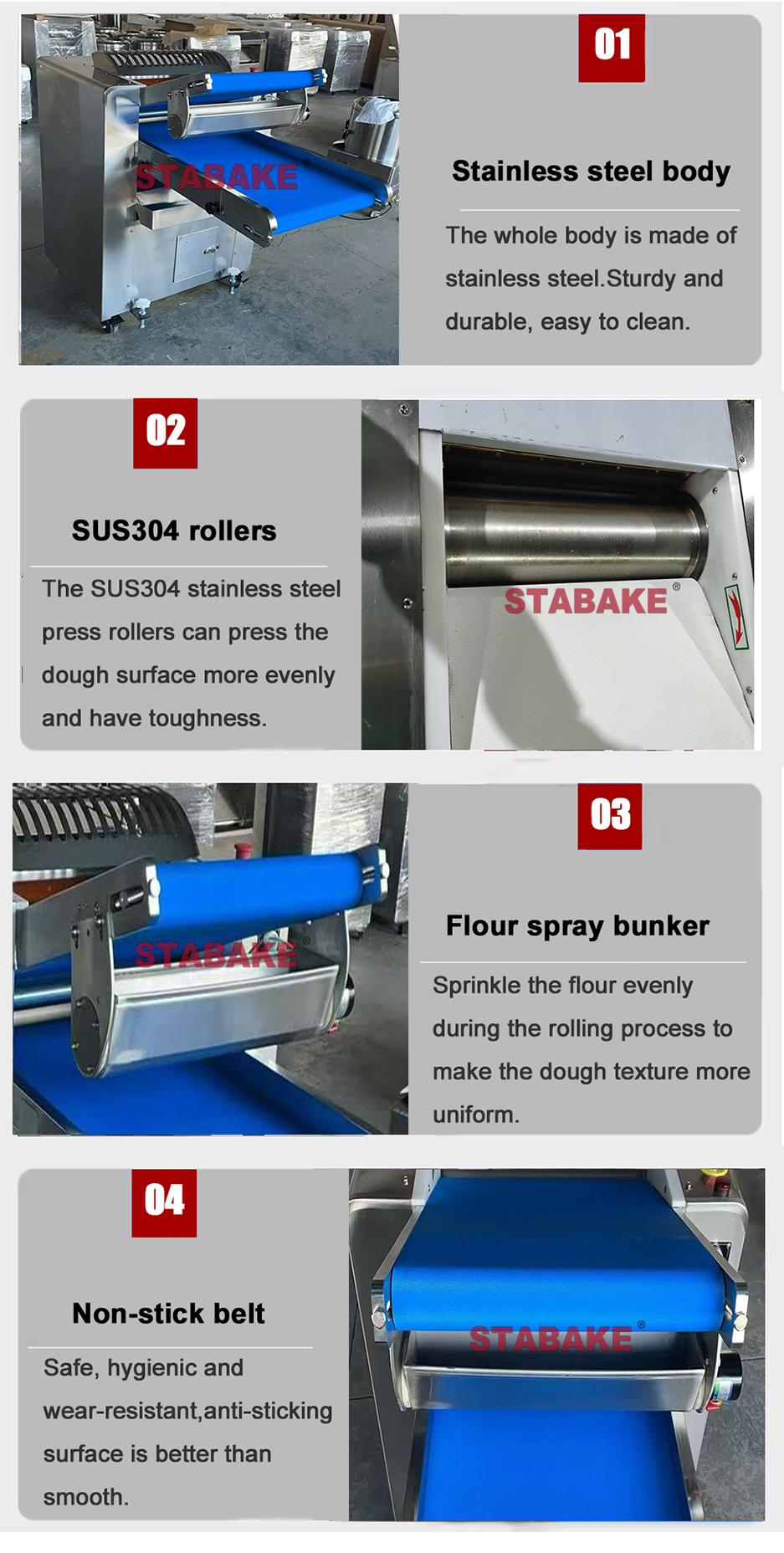

5. Energy-efficient with three rollers technology,304 stainless steel material，simple structure, easy maintenance, and high productivity.
