Spiral Dough Mixer 25/50/100kg/h

For dough mixing, used in bread, pizza, cake, steamed stuffed buns etc Stainless steel materials Bowl Bi-direction Operation Double Motor for Double Speed Mixing Time Easy Adjustable at any time Automatic Protection Device
Availability:
Quantity:

Sprial Dough mixer machine for 25kg/50kg/100kg/h

Description:

HM seriese spiral dough mixer machine is the new designed for mixing water and flour (additives) evenly into dough. This machine is widely used in food factory,bakery shop, school, hotel, restaurant and chain center distribution baking project etc

Technical Parameter:

Model

HM20

HM30

HM40

HM60

HM80

HM120

HM240

Power(kw)

0.45/0.75Kw

0.85/1.5Kw

0.85/1.5Kw

1.5/2.4Kw

2.2/3.3Kw

3/4.5KW

4/7.5KW

Voltage

3N~380V

3N~380V

3N~380V

3N~380V

3N~380V

3N~380V

3N~380V

Bowl Volume (L)

20L

30L

48L

68L

88L

122L

240L

Dry Flour(kg)

≤8

≤12

≤16

≤25

≤35Kg

≤50Kg

≤100Kg

Mixing Speed (r/min)

125/250

125/250

114/230

115/230

125/250

125/250

125/250

Bowl Speed (r/min)

12.5/25

12.5/25

12.5/24

10/20

10/20

10/20

10/20

Weight(kg)

92

97

117

250Kg

345Kg

446Kg

498Kg

Dimension(mm)

630*390*800

720*440*870

920*510*1050

950*550*1100

1050*600*1150

1200*690*1330

1300*880*1580

微信图片_20220414133628副本

Feature:

1.Forwarder and invert double direction motions and double speeds driving.

2.Micro computer digital display control panel or manual button controller are available.

3.Design a reasonable speed difference between the bowl and the beater that makes the dough mixes evenly and maintains quality texture.

4.Stainless steel bowl and spiral arm, safety guard and flour screen made of PP.

5.Short time for mixing to largely save labor force. More than ten minutes will be enough for mixing. Mixing time easy to adjustable at any time. The timing device can be stopped at any time.

6.With automatic protection device, urgent stop once cover be open or not perfect fixed.

7.Circuit with overload protection, capable of avoid machine damage due to operate failure.

8.With sample hole on the protection cover, easy and convenient to take sample through the sample hole.

9.Easy to operate; and convenient in cleaning.


Detailed Image:

HM80(1)

HM80(2)

sprial mixer (7)

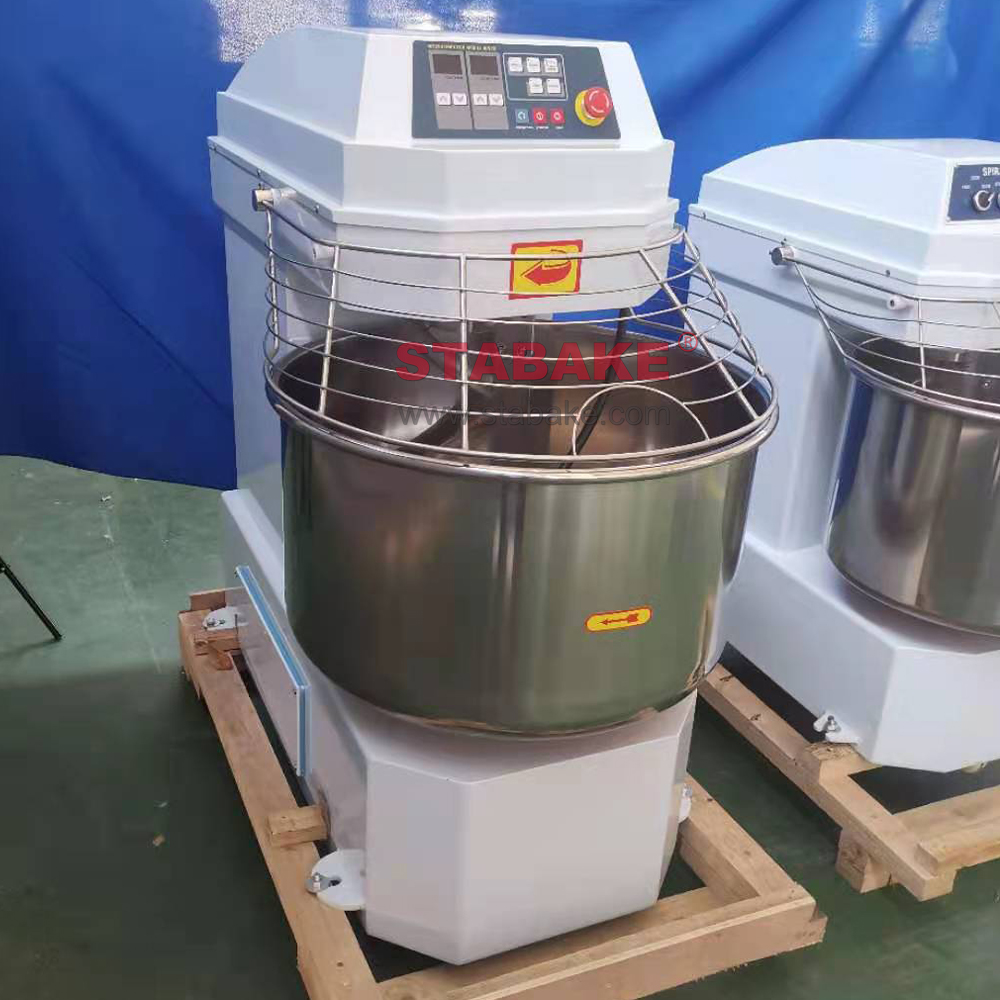

HM120(2)

sprial mixer (1)

sprial mixer (2)

sprial mixer (3)

sprial mixer (4)

sprial mixer (5)

bakery machine 1
