Full Automatic French Fries Potato Chips Production Line

Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, 500kg/h, 1000kg/h, 2000kg/h capacity potato chips production line.
Semi automatic or fully automatic processing machines.
Electricity or gas heating source as choice for blanching and frying machine.

Quantity:

Provide machines for making potato chips or french fries

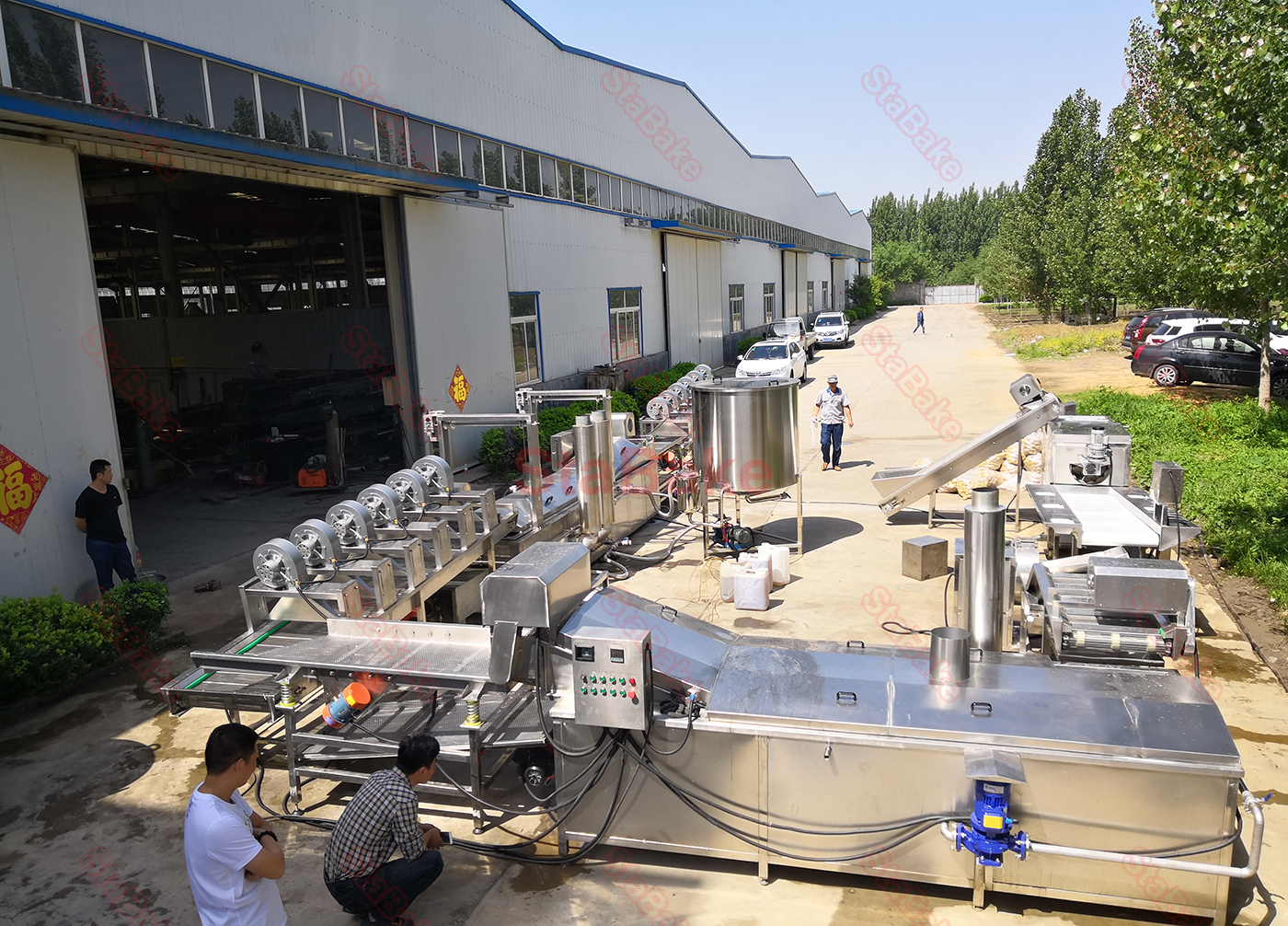

Potato chips production line:

Potato chips line


We focus food machine manufacturing for 16 years experience, professional designing and service, which make sure to provide you more suitable and high quality potato chips making machines.

Potato chips making machine and French fries production  line

The full automatic potato chips making machine for making potato chips and french fries from fresh potatos to final packing equipment.
Provide the suitable machines for making potato chips(crisps), plantain chips, cassava chips, taro chips or french fries.
Small, medium and large capacity from 50kg/h, 100kg/h, 300kg/h, 500kg/h, 1000kg/h, 2000kg/h capacity potato chips production line.
Automatic and semi-automatic processing machines meet your requirement.

Electricity or gas/ LPG heating source as choice for blanching and frying machine


French fries production ratio is 1:0.7 for finished french fries and fresh potatoes; Potato chips production ratio is 1:0.25 for fried potato chips and fresh potatoes.


potato chips line

french fries line


Working process:

Potato chips line


No.

Equipment

Function

1

Feeding Conveyor

 For elevating and conveying potatoes into the next washing peeling machine

2

Washing and Peeling Machine

 Thoroughly washing and peeling the potatoes

3

Picking Line

 For manually disposing the uncleaned places and selecting the defective potatoes

4

Potato cutting machine

 To cut potato slivers or potato chips (slivers' size and chips' thickness can be adjusted through adjusting blades. )

5

Pre-rinsing bucket

Pre Rinsing the slivers and chips then convey them to impurity machine

6

Impurity Machine

Remove the short and offcut pieces(only used for french fries making line)

7

Rinsing Machine

 Through high pressure water flow and water bubbles to wash off  the starch of potato slivers or potato chips

8

Blanching Machine

 Through 60-95 degree hot water blanching to protect potato sliver or chips from oxidation, keep its original color and quality.

9

Vibrating Dewatering Machine

Shake to remove surface water and spread the potato slivers or chips for next step air drying.

10

Air Drying Machine

 Through high pressure fan blowing for pre-cooling and removing the excess water after blanching in short time, prevent the fried oil jumped phenomenon

11

Frying Machine

For frying the potato slivers or chips. Frying temperature 0-220℃adjustable; Frying time frequency adjustable.

12

Vibrating Deoiling Machine

Shake to remove surface oil and spread the potato slivers or chips for next step air cooling.

13

Air Cooling line

Through high pressure wind blowing for pre-cooling and deoiling the potato slivers or chips

14

Elevator Conveyor

For lifting the finished potato sliver to Freezing machine; or convey the chips into seasoning machine

15

Seasoning Machine for Potato chips

For potato chips seasoning. Can use different flavors as per your needs

15

Fluidized quick freezer

For potato slivers quick freezing.

16

Packing Machine

 Automatically pack potato slivers or chips into bags. Automatic Feeding, Metering, Bag Filling, Date Printing, Inflatable (Exhaust), the Whole Process of the Finished Product Output.



Feature:

1. Full automatic production line. several workers can complete production.

2. All machines of the whole line are made of SUS304 Material.

3. Adopt PLC control system, famous brand electric appliance.

4. Customized based on user's actual production processing.

5. High Automation, simple operation, easy cleaning.

potato chips making machine

potato crisp making machine
