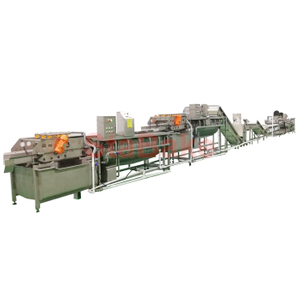

Fruit Vegetable Washing And Drying Processing Line

Description:
This is one multifunctional and practical fruit and vegetable washing and drying processing line.
This line includes: bubble washing machine + brush washing polishing machine + air drying machine.
According to customers' requirements, we also can equipped with vegetable cutting, fruit and vegetable sorting or grading, drying, waxing, frying, seasoning or finally packing machine. we also provide the elevator conveyor and picking tables for the fully automatic turkey-project processing line.
This product line is widely applied for various of fruit and vegetable, like date, jujube, strawberry, potato, mini tomato and miscellaneous treatment.

Quantity:

Fruit Vegetable Washing And Drying Processing Line


Description:

This is one multifunctional and practical fruit and vegetable washing and drying processing line.

This line includes: bubble washing machine + brush washing polishing machine + air drying machine.

According to customers' requirements, we also can equipped with vegetable cutting, fruit and vegetable sorting or grading, drying, waxing, frying, seasoning or finally packing machine. we also provide the elevator conveyor and picking tables for the fully automatic turkey-project processing line .

This product line is widely applied for various of fruit and vegetable, like date, jujube, strawberry, potato, mini tomato and miscellaneous treatment.


Feature:

1. Complete food grade SUS304 stainless steel

2. Famous brands electric appliances control parts

3. Special PPT soft brush roller without damage to dates, durable and environmentally friendly

4. Reasonable design can efficiently avoid material block

5. Freely Adjustable speed satisfy different requirement

6. Various Electrical Voltage can be customized made

7. Various capacities are available for you to choose.

8. Ozone and ultrasonic can be added for sterilization and decomposition of pesticide residues.

9. Technical assistance can be provided during the using life of this machine.

Working principle:

The soft brush roller make the dried dates rolling and move forward,the finished products are automatic discharged from outlet,the fine dust is collected from top inlet,the big foreign matter is discharged from defects outlet.


Working Process:

Jujube washing machine


 Name

 Dimension

 Weight

 Power

 Output

 Bubble Washing Machine

 4000*1200*1300mm

 800kg

 6.6kw 380v

 1200kg/h

 Brush Polishing Machine

 3000*1000*1400mm

 880kg

 3kw 380v

 1000kg/h

 Air Drying Machine

 4000*1100*1600mm

 1500kg

 10.5kw 380v

 1500kg/h


1. Air bubble washing machine used to clean the surface dust and sand, it is the most import equipment for date, vegetable, seafood washing.

2. Brush cleaning machine uses a brush to remove the surface debris and hair from the material, and then sprays it with high pressure to clean it thoroughly. It is suitable for ginseng, angelica, ginger, garlic, potatoes, carrots, jujubes, taro and other bulbs vegetables and fruits.

3. Air drying machine used to remove the surface water of date.

Tips: We will design and manufacture this processing line according to customer’s capacity and requirement.
