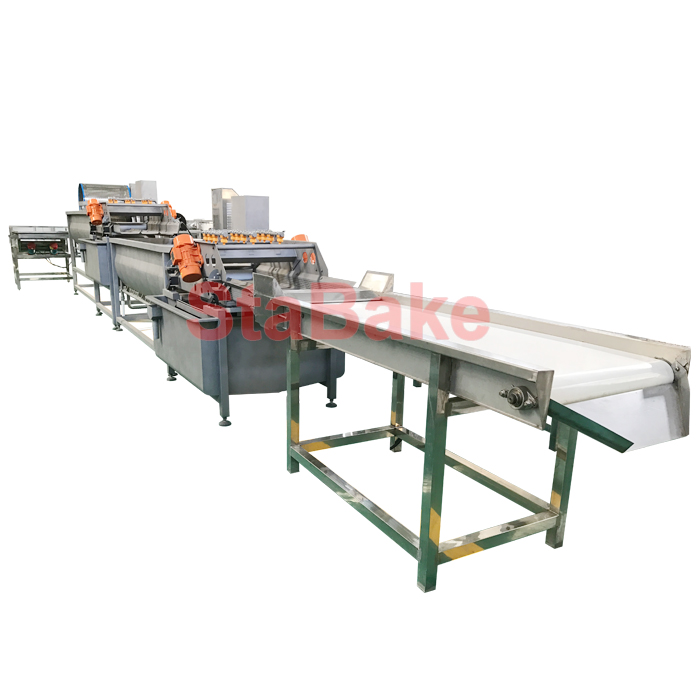

Automatic Salad Vegetable Washing Processing Line

Description:
Vegetable processing line has been widely used in fruit and vegetable processing industry,which helps to solve the grading, sorting, washing, cutting, drying, frozen, disinfecting problems of vegetables,fruits, herbal medicine etc.
Fresh vegetable salad processing line including: selecting → cutting → washing→ de-watering→washing→sterilizing→Vibrating De-watering→ centrifugal dewatering.

Quantity:

Automatic fresh salad vegetable washing processing line

Description:

Vegetable processing line has been widely used in fruit and vegetable processing industry,which helps to solve the grading, sorting, washing, cutting, drying, frozen, disinfecting problems of vegetables,fruits, herbal medicine etc.

Fresh vegetable salad processing line including: selecting → cutting → washing→ de-watering→washing→sterilizing→Vibrating De-watering→ centrifugal dewatering

Automatic Salad Vegetable Washing Processing Line


Technical Parameter:

 NO.

 Equipment Name

 Dimension(mm)

 1

 Six-station pick line

 2700*1020*895

 2

 Vegetable cutter machine

 1075*705*1765

 3

 Elevator Conveyor

 3740*602*1800

 4

 First Hydrocyclone Washing machine

 2270*935*107

 5

  vibration draining machine

 1305*1110*1605

 6

 Ozone sterilization

 2270*935*1475

 7

 Second Hydrocyclone Washing machine

 2270*935*107

 8

 Workbin

 1150*1100*410

 9

 Centrifugal dewater

 980*645*940



Equipment Details

Automatic salad vegetable washing processing line

Automatic salad vegetable washing processing line

Automatic salad vegetable washing processing line

 1. Elevator conveyor

 2. Pre-soak washing machine

 3. Six-station pick line

Automatic salad vegetable washing processing line Automatic salad vegetable washing processing line Automatic salad vegetable washing processing line

 4. Vegetable cutter machine

 5. Elevator conveyor

 6. Eddy Washing machine

Automatic salad vegetable washing processing line Automatic salad vegetable washing processing line Automatic salad vegetable washing processing line

 7. Ozone sterilization

 8. Eddy Washing machine

 9. Centrifugal dryer



Potato Carrot root vegetable processing line:

Green Vegetable processing line


 NO.

 Equipment Name


 1

 Pre-washing Elevator

 2170*1140*1800

 2

 Brush washing peeling machine

 1900*818*940

 3

 Six-station pick line

 2700*1020*895

 4

 Elevator conveyor

 2580*1000*2064

 5

 Vegetable dicing machine

 1370*1110*1250

 6

 Elevator Conveyor

 3740*602*1800

 7

 Eddy Washing machine

 2270*935*1070

 8

 Ozone sterilization

 2270*935*1475

 9

 Eddy Washing machine

 2270*935*1070

 10

 Workbin

 1150*1100*410

 11

 Centrifugal dryer

 980*645*940


We also can design the other vegetable processing line as you demand:

1. Fresh vegetable salad processing line: washing→ sorting→peeling and cutting→washing→sterilizing→ rinsing- Vibrating De-watering

2. Frozen vegetable processing line: pre-soak cleaning→ washing→ cutting→ blanching→ cooling→Vibrating De-watering → air drying→ freezing

3. Vegetable drying processing line: Rinsing→ Pretreatment→ washing→ cutting→ air selecting → blanching → cooling → dehydration → blending →drying.

4.  Vegetable powder processing line: Rinsing→ Pretreatment→ washing→ cutting → blanching → cooling → dehydration → drying → grinding.

5. Pickled vegetable processing line: washing →water desalting→cutting→ squeezing→ mixing→packing → sterilizing→ cooling →air drying


Automatic salad vegetable washing processing line
